Содержание Excavators Komatsu PC130-8 S/N C30001-UP(0000133k)

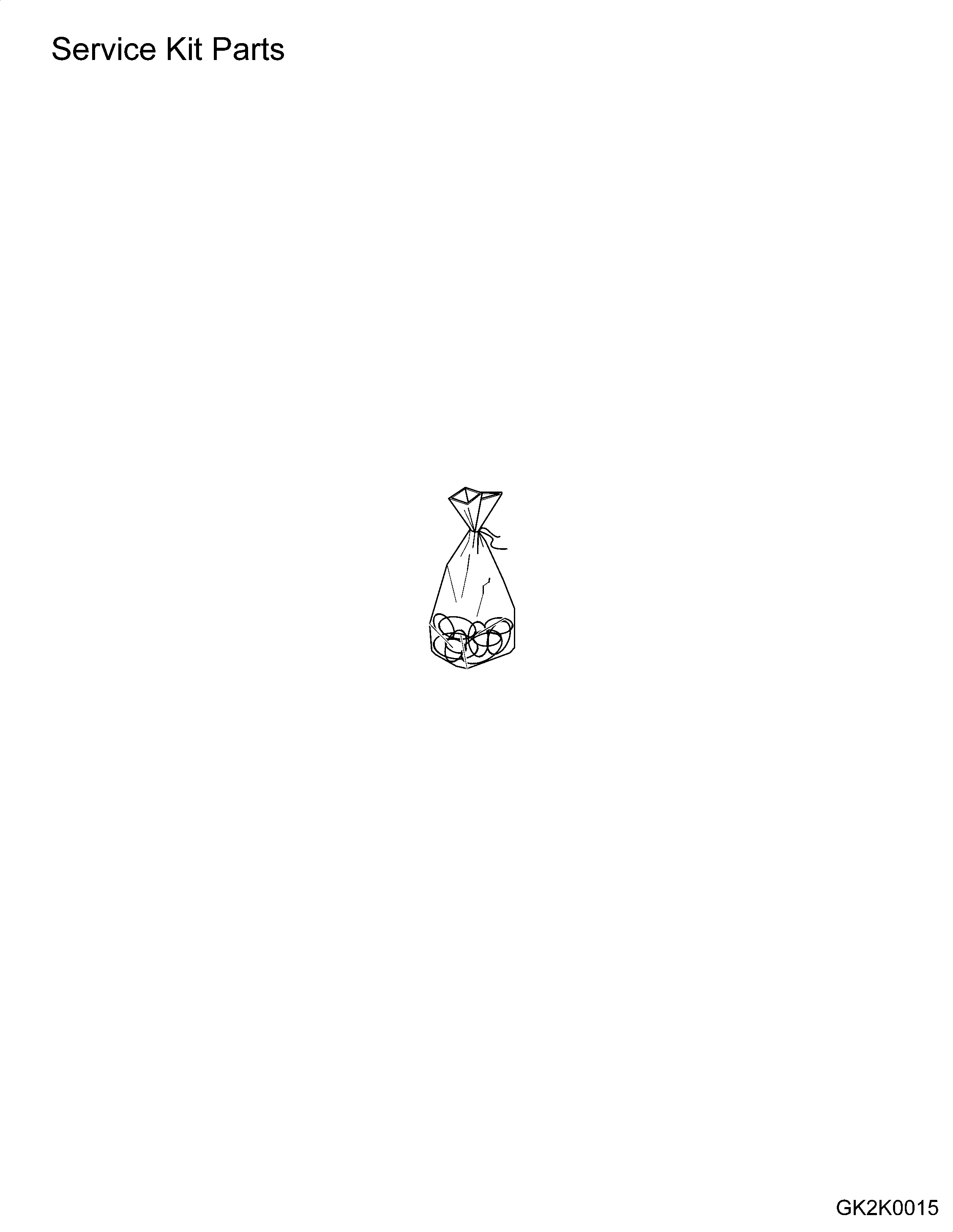

Service Kit Parts(016001 : Y99-0000002)
Номер на схеме Каталожный номер Название Количество Детали
? TZ600D9000-00 ServiceKit
SN: C30001-
? 07000-11007 • O-Ring 2
? 07000-11008 • O-Ring 3
? 07000-12011 • O-Ring 1
? 07000-12014 • O-Ring 3
? 07000-12018 • O-Ring 4
? 07000-12032 • O-Ring 2
? TZ500D2039-00 • O-Ring 1
? TZ600D2039-00 • O-Ring 1
? TZARP568261-70 • O-Ring 1
? TZJB2401-P10A • O-Ring 1
? TZJB2407T2-P14 • Ring 2
? TZJB2407T2P10A • Ring, Back-up 2
? TZJISB2401P189 • O-Ring 2
? TZTCZ284810113 • Seal, Oil 1
? 203-32-05150 Shoe Bolt and Nut Kit
SN: C30001-
? 203-32-61220 • Nut 50
? 22B-32-21230 • Bolt 50
? 203-32-05140 Shoe Bolt and Nut Kit
SN: C30001-
? 203-32-61220 • Nut 50
? 22B-32-21210 • Bolt 50
? 707-99-53310 Service Kit, Adjust Cylinder
SN: C30001-
? 07000-15075 • O-Ring 1
? 07000-15130 • O-Ring 1
? 07145-00080 • Seal, Dust 4
? 707-35-90930 • Ring, Back-up 2
? 707-35-91420 • Ring, Back-up 1
? 707-39-14110 • Ring, Wear 2
? 707-44-14150 • Ring, Piston 1
? 707-51-75030 • Packing, Rod 1
? 707-51-75650 • Ring, Buffer 1
? 707-56-75740 • Seal, Dust 1
? 707-99-37190 Service Kit, Adjust Cylinder
SN: C30001-
? 02896-11012 • O-Ring 1
? 07000-13025 • O-Ring 2
? 07000-15095 • O-Ring 2
? 07145-00070 • Seal, Dust 2
? 07145-00080 • Seal, Dust 2
? 707-34-60030 • O-Ring 1
? 707-35-90730 • Ring, Back-up 2
? 707-35-91060 • Ring, Back-up 3
? 707-39-10550 • Ring, Wear 2
? 707-44-10280 • Ring, Piston 1
? 707-51-70030 • Packing, Rod 1
? 707-51-70640 • Ring, Buffer 1
? 707-56-70740 • Seal, Dust 1
? 707-99-37180 Service Kit, Boom Cylinder
SN: C30001-
? 02896-11012 • O-Ring 1
? 02896-11015 • O-Ring 1
? 07000-13025 • O-Ring 2
? 07000-15095 • O-Ring 1
? 07145-00070 • Seal, Dust 4
? 144-63-95170 • Seal, Dust 1
? 707-34-60030 • O-Ring 1
? 707-35-90730 • Ring, Back-up 2
? 707-35-91060 • Ring, Back-up 1
? 707-39-10550 • Ring, Wear 2
? 707-44-10250 • Ring, Piston 1
? 707-51-70030 • Packing, Rod 1
? 707-51-70650 • Ring, Buffer 1
? 707-99-45170 Service Kit, Arm Cylinder
SN: C30001-
? 02896-11015 • O-Ring 1
? 07000-13025 • O-Ring 1
? 07000-15070 • O-Ring 1
? 07000-15105 • O-Ring 2
? 07002-12034 • O-Ring 1
? 07145-00070 • Seal, Dust 4
? 144-63-94170 • Seal, Dust 1
? 707-35-90360 • Ring, Back-up 2
? 707-35-91150 • Ring, Back-up 3
? 707-39-11530 • Ring, Wear 2
? 707-44-11250 • Ring, Piston 1
? 707-51-75030 • Packing, Rod 1
? 707-51-75650 • Ring, Buffer 1
? 707-99-27780 Service Kit, Bucket Cylinder
SN: C30001-
? 02896-11012 • O-Ring 1
? 07000-13025 • O-Ring 1
? 07000-15085 • O-Ring 1
? 07145-00065 • Seal, Dust 2
? 144-63-92170 • Seal, Dust 1
? 22B-70-12170 • Seal, Dust 2
? 707-34-55020 • O-Ring 1
? 707-35-90610 • Ring, Back-up 2
? 707-35-90970 • Ring, Back-up 1
? 707-39-95030 • Ring, Wear 2
? 707-44-95150 • Ring, Piston 1
? 707-51-65030 • Packing, Rod 1
? 707-51-65650 • Ring, Buffer 1
? 707-99-38790 Service Kit, Blade Cylinder
SN: C30001-
? 02896-11012 • O-Ring 2
? 07000-13025 • O-Ring 2
? 07000-15070 • O-Ring 1
? 07000-15100 • O-Ring 1
? 07145-00070 • Seal, Dust 4
? 144-63-94170 • Seal, Dust 1
? 707-35-90360 • Ring, Back-up 2
? 707-35-91130 • Ring, Back-up 1
? 707-39-11150 • Ring, Wear 2
? 707-44-11150 • Ring, Piston 1
? 707-51-75030 • Packing, Rod 1
? 707-51-75650 • Ring, Buffer 1
