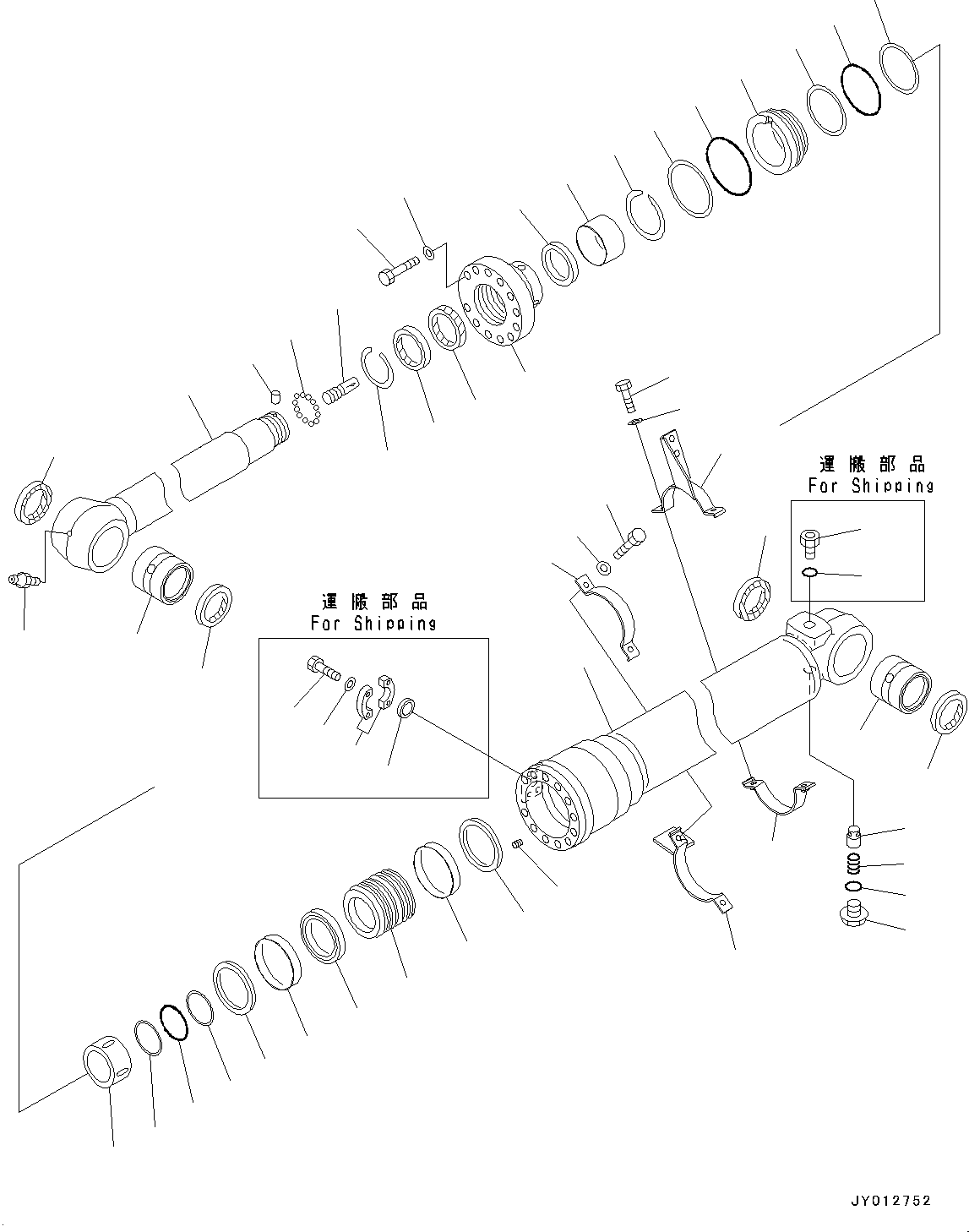

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 707-01-0L120 | Cylinder Assembly | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-13-12650 | • Cylinder | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-58-85310 | • Rod | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-76-80431 | • Bushing | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07145-00080 | • Seal, Dust, (Kit : K05) | 2 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-76-80431 | • Bushing | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07145-00080 | • Seal, Dust, (Kit : K05) | 2 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07020-00000 | • Fitting, Grease | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-71-70820 | • Plunger | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-35-91220 | • Ring, Back-up, (Kit : K05) | 2 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07000-15110 | • O-Ring, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-71-32590 | • Collar | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-71-80230 | • Plunger | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 04260-00635 | • Ball, Steel | 11 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-71-91270 | • Cap | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-27-12650 | • Head, Cylinder | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-56-85510 | • Seal, Dust, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07179-13099 | • Ring, Snap | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-51-85030 | • Packing, Rod, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-51-85650 | • Ring, Buffer, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-52-90611 | • Bushing | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-35-91220 | • Ring, Back-up, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07000-15110 | • O-Ring, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 01010-81670 | • Bolt | 12 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 01643-51645 | • Washer | 12 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-75-85110 | • Ring, Snap | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-36-12851 | • Piston | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-44-12150 | • Ring, Piston, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-39-12140 | • Ring, Wear, (Kit : K05) | 2 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-44-12911 | • Ring | 2 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07000-15075 | • O-Ring, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-35-90930 | • Ring, Back-up, (Kit : K05) | 2 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 01310-01216 | • Screw | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-83-13010 | • Valve | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07750-01628 | • Spring | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-87-14070 | • Plug | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07002-12034 | • O-Ring, (Kit : K05) | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-88-22970 | Bracket | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-88-22930 | Bracket | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07372-21035 | Bolt | 8 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 01643-51032 | Washer | 8 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-88-21630 | Band | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-88-21620 | Band | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07371-30640 | Flange | 2 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 707-88-33030 | Cap | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07040-12412 | Plug | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
|||
| ? | 07002-12434 | O-Ring | 1 | SN: K50001- KIT-FLAG: _- SCC: SERIALNO: K50001- |
