| Наименование | Страница | Код страницы |
|---|---|---|

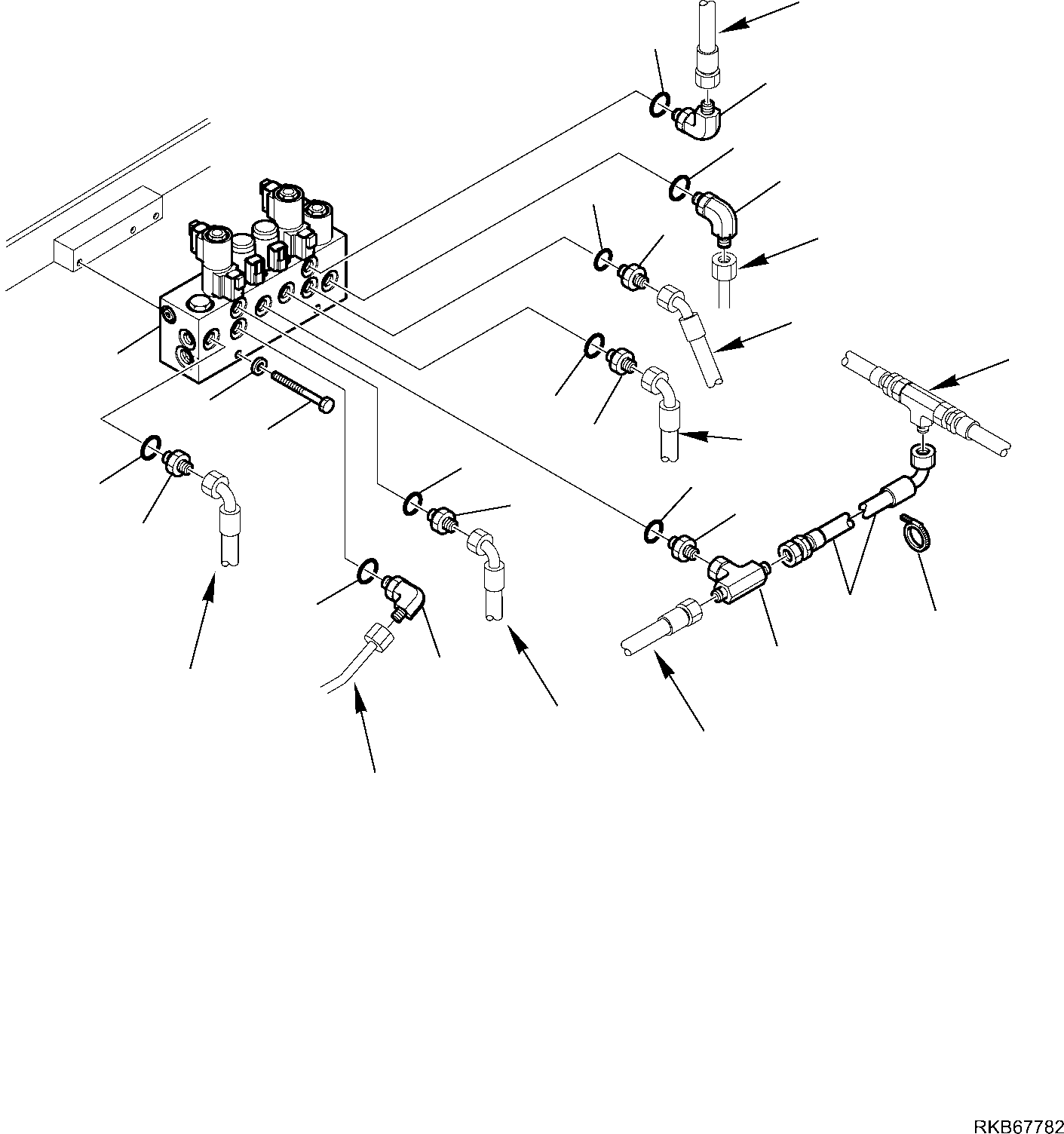

| SERVOCONTROL FEED UNIT (WITH BUCKET 4 IN 1) | F-6365 | 6365 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (42N-64-11161) | VALVE, ASSEMBLY | 1 | SN: F80211- |
6365 | ||
| ? | 01010-80880 | BOLT | 2 | SN: F80211- |
|||
| ? | 01643-10823 | WASHER | 2 | SN: F80211- |
|||
| ? | 21D-09-51600 | ELBOW | 1 | SN: F80211- |
|||
| ? | 21D-09-69960 | • O-RING | 1 | SN: F80211- |
|||
| ? | 21D-09-51600 | ELBOW | 1 | SN: F80211- |
|||
| ? | 21D-09-69960 | • O-RING | 1 | SN: F80211- |
|||
| ? | 21D-09-51160 | UNION | 1 | SN: F80211- |
|||
| ? | 21D-09-69960 | • O-RING | 1 | SN: F80211- |
|||
| ? | 21D-09-51160 | UNION | 2 | SN: F80211- |
|||
| ? | 21D-09-69960 | • O-RING | 1 | SN: F80211- |
|||
| ? | 21D-09-51160 | UNION | 1 | SN: F80211- |
|||
| ? | 21D-09-69960 | • O-RING | 1 | SN: F80211- |
|||
| ? | 21D-09-56850 | TEE | 1 | SN: F80211- |
|||
| ? | 42N-62-14911 | HOSE | 1 | SN: F80211- |
|||
| ? | 08034-20834 | CLAMP | 1 | SN: F80211- |
|||
| ? | 21D-09-51160 | UNION | 1 | SN: F80211- |
|||
| ? | 21D-09-69960 | • O-RING | 1 | SN: F80211- |
|||
| ? | 21D-09-51600 | ELBOW | 1 | SN: F80211- |
|||
| ? | 21D-09-69960 | • O-RING | 1 | SN: F80211- |
|||
| ? | SEE FIG. 6450 | 6450 | |||||
| ? | SEE FIG. 6456 | 6456 | |||||
| ? | SEE FIG. 6465 | 6465 | |||||
| ? | SEE FIG. 6490 | 6490 | |||||
| ? | SEE FIG. 6510 | 6510 | |||||
| ? | SEE FIG. 6620 | 6620 | |||||
| ? | SEE FIG. 6715 | 6715 | |||||
| ? | SEE FIG. 6767 | 6767 |
