Содержание Skid Steer Loaders Komatsu SK818-5 USA S/N 37BF50003-Up(sk818a)

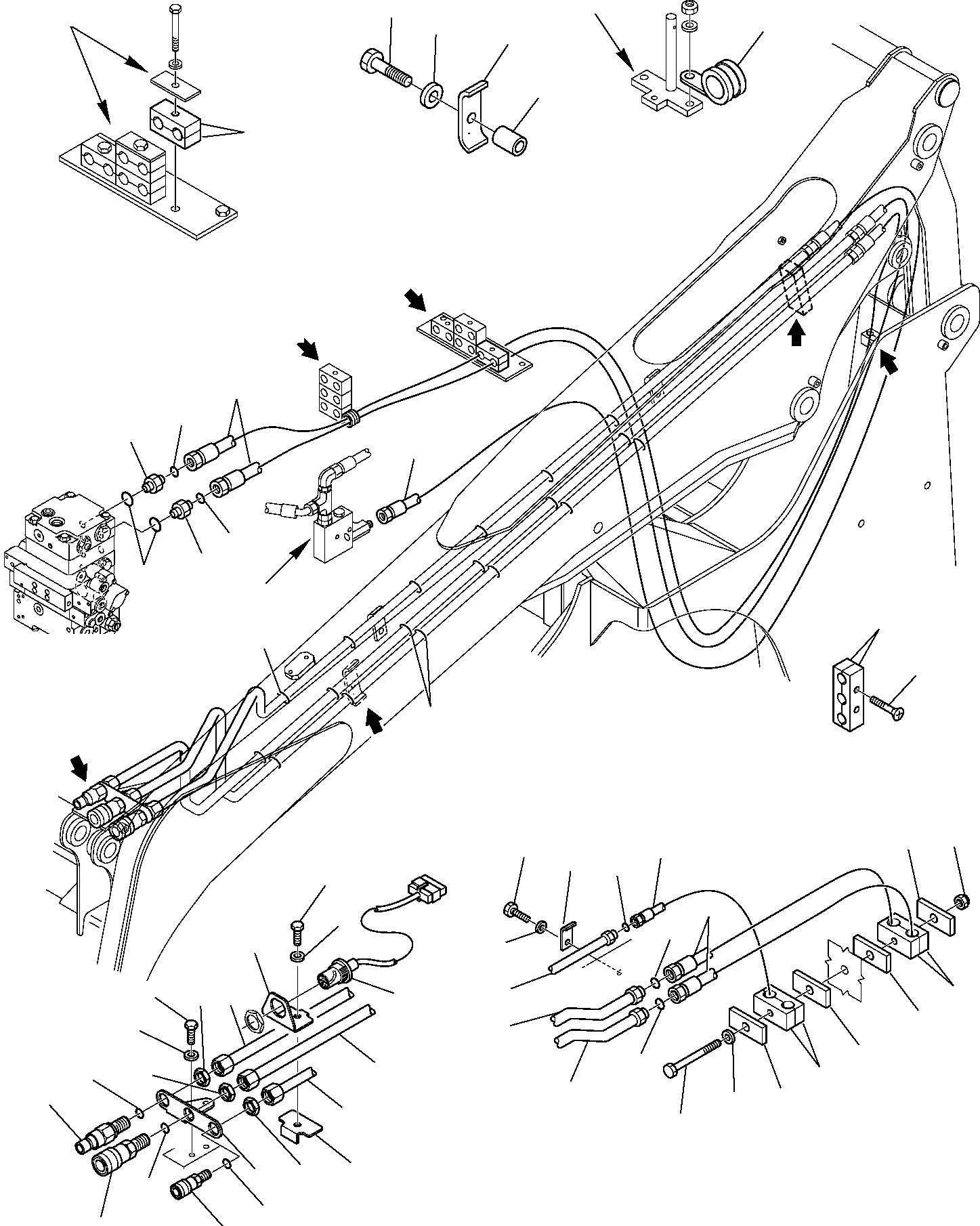

HYDRAULIC PIPING (ATTACHMENT LINE) (HIGH-FLOW SUPER)(F-1080 : 6675)
Номер на схеме Каталожный номер Название Количество Детали
? 37A-62-11160 UNION 2
SN: 37BF50003-
? 855051616 • O-RING 1
SN: 37BF50003-
? 855051016 • O-RING 1
SN: 37BF50003-
? 37B-970-1810 HOSE 2
SN: 37BF50003-
? 802660505 COLLAR 1
SN: 37BF50003-
? 818000025 CLAMP 2
SN: 37BF50003-
? 37B-970-1721 PIPE 1
SN: 37BF50003-
? 855051018 • O-RING 1
SN: 37BF50003-
? 37B-970-1711 PIPE 1
SN: 37BF50003-
? 855051018 • O-RING 1
SN: 37BF50003-
? 37B-970-1820 HOSE 1
SN: 37BF50003-
? 37B-970-1731 PIPE 1
SN: 37BF50003-37BF.....
 A
? 37B-970-1732 PIPE 1
SN: 37BF.....-
 B
? 855051018 • O-RING 1
SN: 37BF50003-
? 818000023 CLAMP 2
SN: 37BF50003-
? 37B-70-17340 PLATE 2
SN: 37BF50003-
? 818000024 PLATE 2
SN: 37BF50003-
? 818000025 CLAMP 2
SN: 37BF50003-
? 801015739 BOLT 1
SN: 37BF50003-
? 802170001 SPRING WASHER 5
SN: 37BF50003-
? 801880208 NUT 1
SN: 37BF50003-
? 37B-970-1420 CLAMP 1
SN: 37BF50003-
? 801015086 BOLT 1
SN: 37BF50003-
? 200362287 COUPLING, ASSY. 1
SN: 37BF50003-
? 855051018 • O-RING 1
SN: 37BF50003-
? 200362282 COUPLING, ASSY. 1
SN: 37BF50003-
? 855051016 • O-RING 1
SN: 37BF50003-
? 200362284 COUPLING, ASSY. 1
SN: 37BF50003-
? 855051018 • O-RING 1
SN: 37BF50003-
? 37A-970-1460 SUPPORT (HIGH-FLOW) 1
SN: 37BF50003-
? 37A-970-1470 COLLAR 1
SN: 37BF50003-
? 801015110 BOLT 1
SN: 37BF50003-
? 802170002 WASHER 3
SN: 37BF50003-
? 37A-06-11460 CONNECTOR (HIGH-FLOW) 1
SN: 37BF50003-
? 37A-970-1432 SUPPORT 1
SN: 37BF50003-
? 801015108 BOLT 2
SN: 37BF50003-
? 37B-970-1430 CLAMP 2
SN: 37BF50003-
? 801200701 SCREW 2
SN: 37BF50003-
? 500153465 BRACKET 2
SN: 37BF50003-
? 37A-70-11290 SPACER 2
SN: 37BF50003-
? 801015545 BOLT 2
SN: 37BF50003-
? 37A-70-11420 O-RING 8
SN: 37BF50003-
? 37A-70-11410 O-RING 4
SN: 37BF50003-
? SEE FIG. 6520 6520
? SEE FIG. 6600 6600
