| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

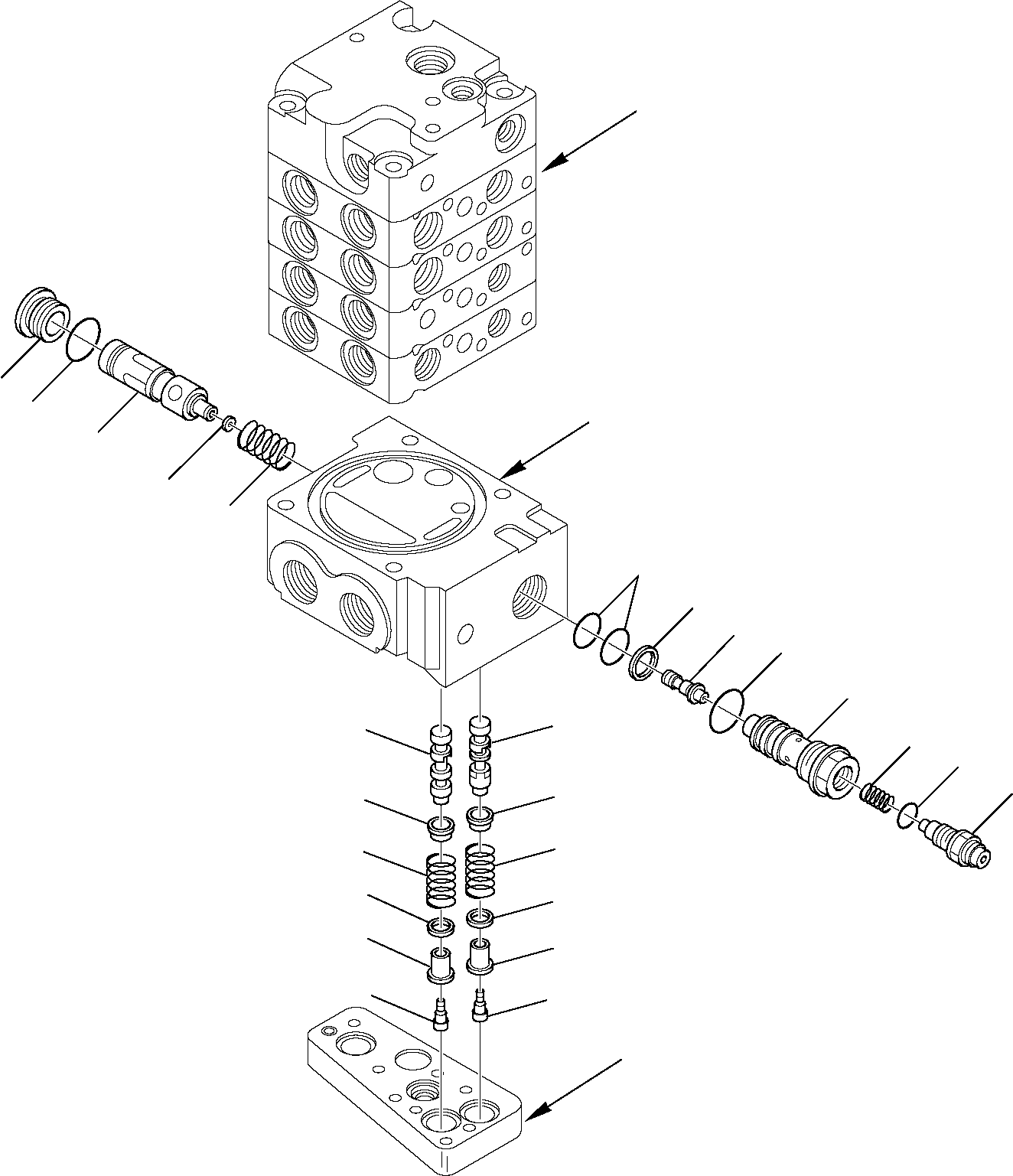

| ? | (723-14-12500) | CONTROL VALVE, ASSY. (SUPER HIGH-FLOW VERSION) | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-28610 | • PLUG | 1 | SN: 37BTF50003- |
|||
| ? | 07002-11423 | • O-RING | 1 | SN: 37BTF50003- |
|||
| ? | ☆ | • HOLDER, VALVE W/CASE | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-28350 | • SPRING | 1 | SN: 37BTF50003- |
|||
| ? | 07002-12434 | • O-RING | 2 | SN: 37BTF50003- |
|||
| ? | ☆ | • VALVE | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-18160 | • RING | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-18150 | • O-RING | 2 | SN: 37BTF50003- |
|||
| ? | ☆ | • SPOOL | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-28460 | • SPRING | 1 | SN: 37BTF50003- |
|||
| ? | ☆ | • GASKET | 1 | SN: 37BTF50003- |
|||
| ? | 723-26-15230 | • PLUG | 1 | SN: 37BTF50003- |
|||
| ? | ☆ | • SPOOL | 1 | SN: 37BTF50003- |
|||
| ? | ☆ | • SPOOL | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-28470 | • SEAT, NOZZLE SPRING | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-28480 | • SPRING | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-28490 | • SPRING | 1 | SN: 37BTF50003- |
|||
| ? | 723-11-28510 | • SEAT, NOZZLE SPRING | 2 | SN: 37BTF50003- |
|||
| ? | 723-11-28520 | • SCREW | 2 | SN: 37BTF50003- |
|||
| ? | 723-11-28710 | • COLLAR | 2 | SN: 37BTF50003- |
|||
| ? | SEE FIG. 6290 | 6290 | |||||
| ? | SEE FIG. 6296 | 6296 |
