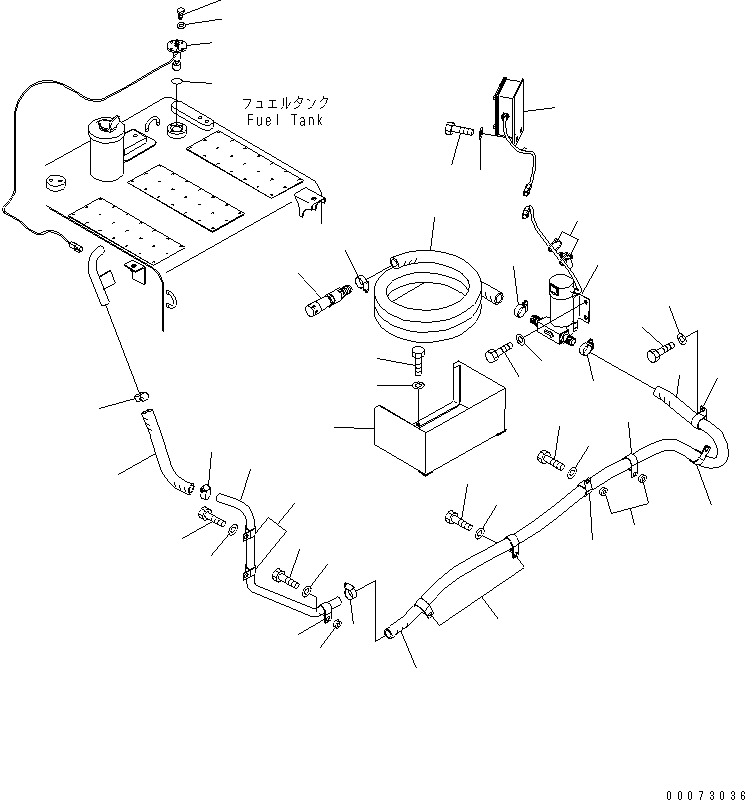

| Наименование | Страница | Код страницы |
|---|---|---|
| FUEL SELF CHARGE PUMP (INNER PARTS)(#K50630-K50754) | 017002 | Y1040-01B0 |
| SWITCH BOX (INNER PARTS)(#K50630-) | 017003 | Y1040-11B0 |
| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (206-04-K1113) | PUMP ASSEMBLY | 1 | SN: K50755- |
|||
| ? | (206-04-K1112) | PUMP ASSEMBLY | 1 | SN: K50630-K50754 |
Y1040-01B0 | ||
| ? | 20Y-04-K2450 | VALVE ASSEMBLY | 1 | SN: K50630- |
|||
| ? | 20Y-04-K2351 | HOSE | 1 | SN: K50630- |
|||
| ? | 206-04-K1121 | HOSE | 1 | SN: K50630- |
|||
| ? | 206-04-K1131 | HOSE | 1 | SN: K50630- |
|||
| ? | 20Y-04-K3081 | SWITCH ASSEMBLY | 1 | SN: K50630- |
|||
| ? | 20Y-04-K4021 | • SWITCH | 1 | SN: K50630- |
|||
| ? | 20Y-04-K3094 | • FLANGE | 1 | SN: K50630- |
|||
| ? | 07002-11223 | • O-RING | 1 | SN: K50630- |
|||
| ? | 07000-13032 | O-RING | 1 | SN: K50630- |
|||
| ? | (20Y-04-K4081) | SWITCH BOX ASSEMBLY | 1 | SN: K50630- |
Y1040-11B0 | ||
| ? | 01010-81230 | BOLT | 2 | SN: K50630- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: K50630- |
|||
| ? | 01010-81225 | BOLT | 4 | SN: K50630- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: K50630- |
|||
| ? | 07289-00035 | CLAMP | 1 | SN: K50630- |
|||
| ? | 07289-00035 | CLAMP | 1 | SN: K50630- |
|||
| ? | 206-04-71130 | TUBE | 1 | SN: K50630- |
|||
| ? | 04434-52512 | CLIP | 2 | SN: K50630- |
|||
| ? | 01010-81225 | BOLT | 2 | SN: K50630- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: K50630- |
|||
| ? | 04434-52512 | CLIP | 1 | SN: K50630- |
|||
| ? | 198-43-15310 | COLLAR, 10MM | 1 | SN: K50630- |
|||
| ? | 01010-81235 | BOLT | 1 | SN: K50630- |
|||
| ? | 01643-31232 | WASHER | 1 | SN: K50630- |
|||
| ? | 07289-00035 | CLAMP | 1 | SN: K50630- |
|||
| ? | 07289-00035 | CLAMP | 1 | SN: K50630- |
|||
| ? | 581-04-22290 | CLIP | 2 | SN: K50630- |
|||
| ? | 581-04-22290 | CLIP | 2 | SN: K50630- |
|||
| ? | 581-04-22290 | CLIP | 2 | SN: K50630- |
|||
| ? | 01010-81225 | BOLT | 2 | SN: K50630- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: K50630- |
|||
| ? | 01010-81225 | BOLT | 2 | SN: K50630- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: K50630- |
|||
| ? | 198-43-15310 | COLLAR, 10MM | 2 | SN: K50630- |
|||
| ? | 01010-81235 | BOLT | 2 | SN: K50630- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: K50630- |
|||
| ? | 07289-00035 | CLAMP | 2 | SN: K50630- |
|||
| ? | 20Y-04-38170 | BRACKET | 1 | SN: K50630- |
|||
| ? | 01010-81020 | BOLT | 3 | SN: K50630- |
|||
| ? | 01643-31032 | WASHER | 3 | SN: K50630- |
|||
| ? | 08034-20519 | BAND | 2 | SN: K50630- |
|||
| ? | 01010-80616 | BOLT | 4 | SN: K50630- |
|||
| ? | 0164330623 | WASHER | 4 | SN: K50630- |
