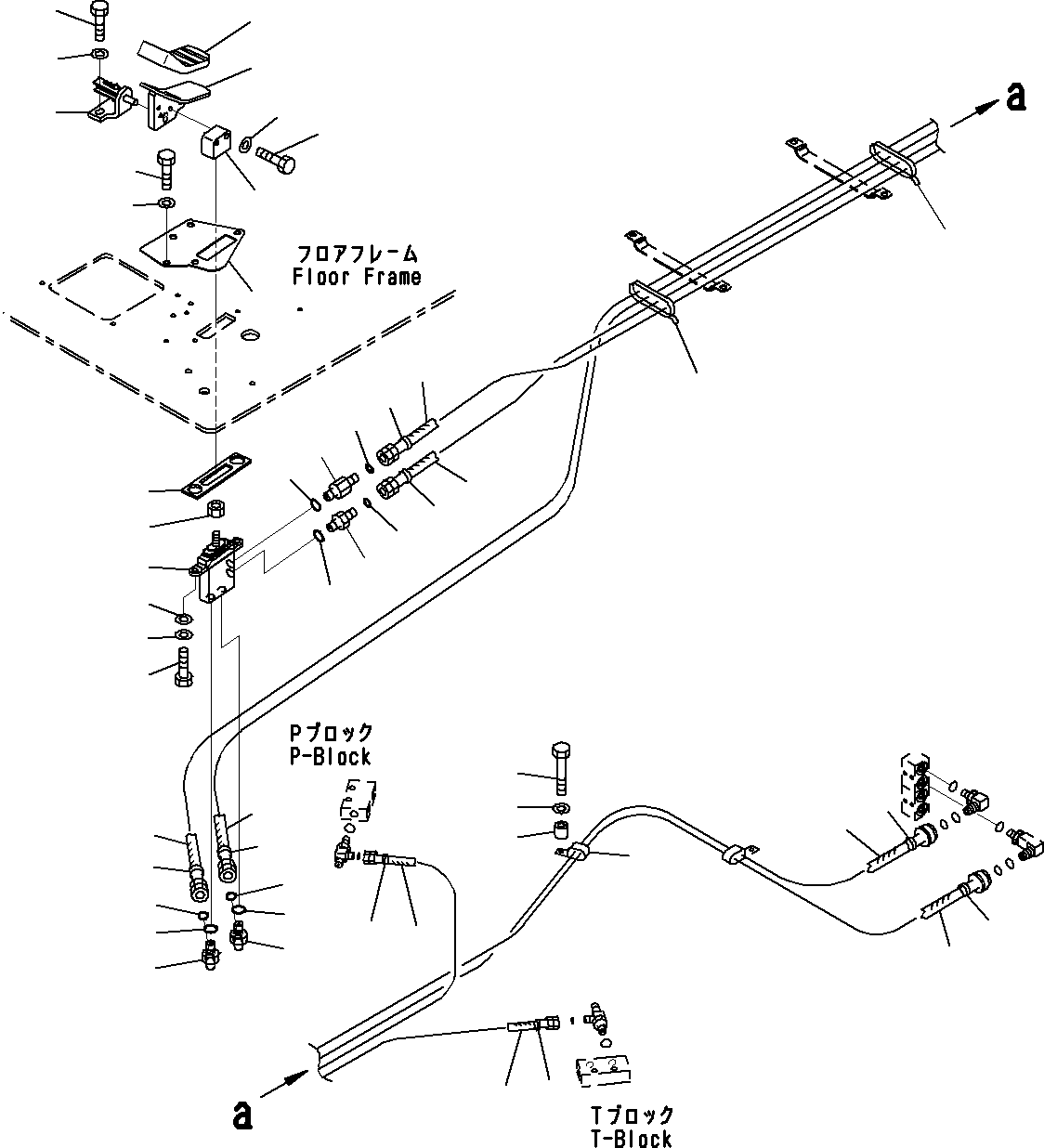

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 702-16-01230 | Valve, Pilot, LHS | 1 | SN: 10001- SCC: |
|||
| ? | 22U-54-25660 | Seal | 1 | SN: 10001- SCC: |
|||
| ? | 22U-43-21470 | Seat | 1 | SN: 10001- SCC: |
|||
| ? | 01010-81025 | Bolt | 2 | SN: 10001- SCC: |
|||
| ? | 01643-31032 | Washer | 2 | SN: 10001- SCC: |
|||
| ? | 01643-31032 | Washer | 2 | SN: 10001- SCC: |
|||
| ? | 20Y-62-25360 | Bracket | 1 | SN: 10001- SCC: |
|||
| ? | 01010-D1025 | Bolt | 2 | SN: 10001- SCC: |
|||
| ? | 01643-71032 | Washer | 2 | SN: 10001- SCC: |
|||
| ? | 20Y-43-31220 | Pedal | 1 | SN: 10001- SCC: |
|||
| ? | 01010-D1045 | Bolt | 2 | SN: 10001- SCC: |
|||
| ? | 01643-71032 | Washer | 2 | SN: 10001- SCC: |
|||
| ? | 22U-54-25180 | Plate | 1 | SN: 10001- SCC: |
|||
| ? | 01010-81020 | Bolt | 1 | SN: 10001- SCC: |
|||
| ? | 01643-31032 | Washer | 1 | SN: 10001- SCC: |
|||
| ? | 22U-54-25670 | Cap | 1 | SN: 10001- SCC: |
|||
| ? | 21W-62-43980 | Elbow | 2 | SN: 10001- SCC: |
|||
| ? | 02896-11008 | O-ring | 2 | SN: 10001- SCC: |
|||
| ? | 07000-12011 | O-ring | 2 | SN: 10001- SCC: |
|||
| ? | 20Y-62-43470 | Nipple | 1 | SN: 10001- SCC: |
|||
| ? | 02896-11008 | O-ring | 1 | SN: 10001- SCC: |
|||
| ? | 11Y-62-12140 | Nipple | 1 | SN: 10001- SCC: |
|||
| ? | 02896-11008 | O-ring | 1 | SN: 10001- SCC: |
|||
| ? | 07000-12011 | O-ring | 2 | SN: 10001- SCC: |
|||
| ? | 02760-00211 | Hose | 1 | SN: 10001- SCC: |
|||
| ? | 02760-00212 | Hose, L=1200mm | 1 | SN: 10001- SCC: |
|||
| ? | 20Y-62-43490 | Hose, L=2400mm | 1 | SN: 10001- SCC: |
|||
| ? | 20Y-62-43790 | Hose, L=2450mm | 1 | SN: 10001- SCC: |
|||
| ? | 20Y-62-22790 | Band, Red | 2 | SN: 10001- SCC: |
|||
| ? | 20Y-62-22820 | Band, Blue | 2 | SN: 10001- SCC: |
|||
| ? | 20Y-62-22840 | Band, Black | 2 | SN: 10001- SCC: |
|||
| ? | 20Y-62-22860 | Band, Brown | 2 | SN: 10001- SCC: |
|||
| ? | 08034-20536 | Band | 2 | SN: 10001- SCC: |
|||
| ? | 04435-51210 | Clip | 1 | SN: 10001- SCC: |
|||
| ? | 195-33-11220 | Spacer | 1 | SN: 10001- SCC: |
|||
| ? | 01010-81050 | Bolt | 1 | SN: 10001- SCC: |
|||
| ? | 01643-31032 | Washer | 1 | SN: 10001- SCC: |
|||
| ? | 01583-51408 | Nut | 1 | SN: 10001- SCC: |
