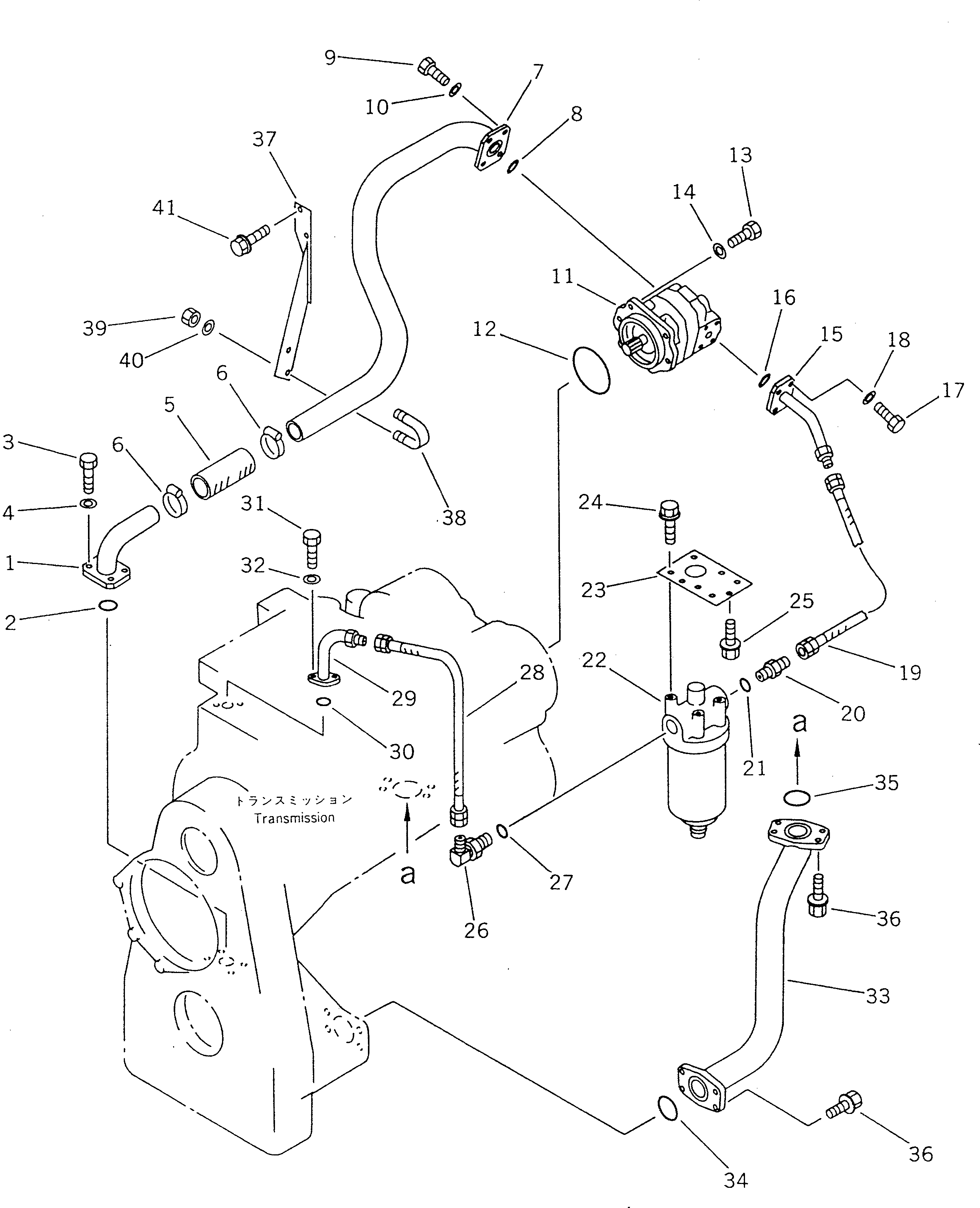

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 421-16-11321 | TUBE | 1 | SN: 10001- |
|||
| ? | 07000-12060 | O-RING | 1 | SN: 10001- |
|||
| ? | 01010-51235 | BOLT | 4 | SN: 10001- |
|||
| ? | 01643-51232 | WASHER | 4 | SN: 10001- |
|||
| ? | 07260-04714 | HOSE | 1 | SN: 10001- |
|||
| ? | 07281-00489 | CLAMP | 2 | SN: 10001- |
|||
| ? | 421-16-11331 | TUBE | 1 | SN: 10001- |
|||
| ? | 07000-12060 | O-RING | 1 | SN: 10001- |
|||
| ? | 01010-51235 | BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 10001- |
|||
| ? | (705-12-36010) | PUMP ASS'Y,(SEE FIG.2601) | 1 | SN: 10001- |
|||
| ? | 07000-12130 | O-RING | 1 | SN: 10001- |
|||
| ? | 01010-51645 | BOLT | 2 | SN: 10001- |
|||
| ? | 01643-31645 | WASHER | 2 | SN: 10001- |
|||
| ? | 421-16-11313 | TUBE | 1 | SN: 10001- |
|||
| ? | 07000-13032 | O-RING | 1 | SN: 10001- |
|||
| ? | 01010-51035 | BOLT | 4 | SN: 10001- |
|||
| ? | 01643-51032 | WASHER | 4 | SN: 10001- |
|||
| ? | 07102-20605 | HOSE | 1 | SN: 10001- |
|||
| ? | 417-16-11131 | UNION | 1 | SN: 10001- |
|||
| ? | 07002-03334 | O-RING | 1 | SN: 10001- |
|||
| ? | (424-16-11101) | OIL FILTER ASS'Y,(SEE FIG.2651) | 1 | SN: 10001- |
|||
| ? | 421-16-11633 | BRACKET | 1 | SN: 10001- |
|||
| ? | 01435-01030 | BOLT | 4 | SN: 10001- |
|||
| ? | 01435-01225 | BOLT | 3 | SN: 10001- |
|||
| ? | 421-16-11650 | ELBOW | 1 | SN: 10001- |
|||
| ? | 07002-03334 | O-RING | 1 | SN: 10001- |
|||
| ? | 07102-20609 | HOSE¤ 900MM | 1 | SN: 10001- |
|||
| ? | 421-16-11234 | TUBE | 1 | SN: 10001- |
|||
| ? | 07000-13028 | O-RING | 1 | SN: 10001- |
|||
| ? | 01010-51035 | BOLT | 2 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 10001- |
|||
| ? | 421-16-11561 | TUBE | 1 | SN: 10001- |
|||
| ? | 07000-02085 | O-RING | 1 | SN: 10001- |
|||
| ? | 07000-02070 | O-RING | 1 | SN: 10001- |
|||
| ? | 01435-01235 | BOLT | 8 | SN: 10001- |
|||
| ? | 421-16-11271 | BRACKET | 1 | SN: 10001- |
|||
| ? | 07283-24949 | CLIP | 1 | SN: 10001- |
|||
| ? | 01599-01011 | NUT | 2 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 10001- |
|||
| ? | 01435-01225 | BOLT | 2 | SN: 10001- |
