| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

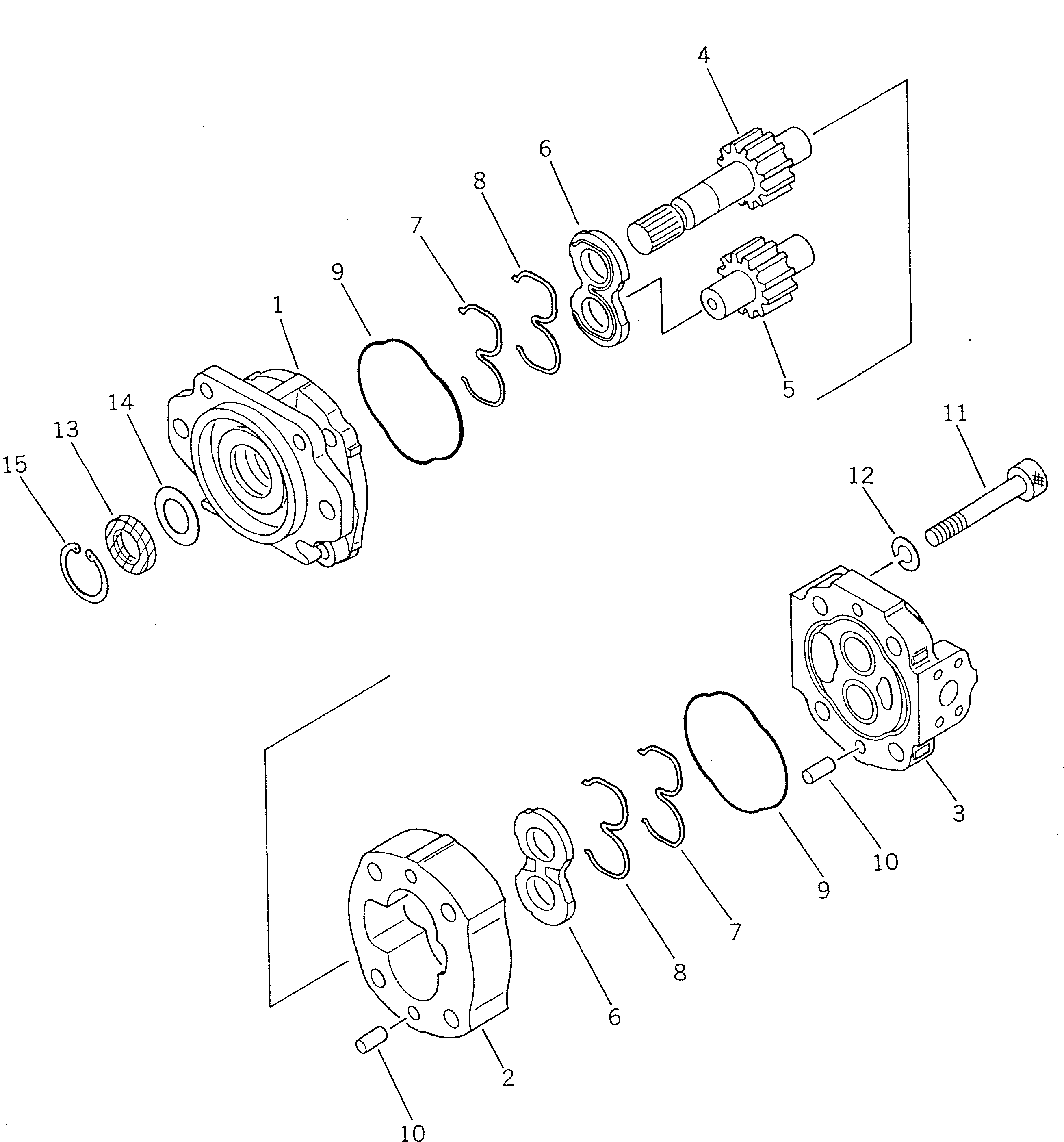

| ? | 705-12-36010 | PUMP ASS'Y,(SAR63) | 1 | SN: 10001- |
|||
| ? | (★705-17-03021) | • BRACKET ASS'Y | 1 | SN: 10001- |
|||
| ? | (★705-17-03352) | • • BUSHING,PLANE | 2 | SN: 10001- |
|||
| ? | (★705-17-36010) | • CASE | 1 | SN: 10001- |
|||
| ? | (★705-17-03121) | • COVER | 1 | SN: 10001- |
|||
| ? | (★705-17-03352) | • • BUSHING,PLANE | 2 | SN: 10001- |
|||
| ? | (★705-17-36411) | • GEAR,DRIVE | 1 | SN: 10001- |
|||
| ? | (★705-17-36511) | • GEAR,DRIVEN | 1 | SN: 10001- |
|||
| ? | (★705-17-03610) | • PLATE,SIDE | 2 | SN: 10001- |
|||
| ? | (★705-17-03470) | • SEAL,RING | 2 | SN: 10001- |
|||
| ? | (★705-17-03440) | • RING,BACK-UP | 2 | SN: 10001- |
|||
| ? | (★705-17-03380) | • O-RING | 2 | SN: 10001- |
|||
| ? | (★04020-01228) | • PIN,DOWEL | 4 | SN: 10001- |
|||
| ? | (★705-17-03750) | • BOLT | 4 | SN: 10001- |
|||
| ? | (★01643-51645) | • WASHER | 4 | SN: 10001- |
|||
| ? | 705-17-03810 | • SEAL,OIL | 1 | SN: 10001- |
|||
| ? | 705-17-03870 | • PLATE | 1 | SN: 10001- |
|||
| ? | 04065-05220 | • RING,SNAP | 1 | SN: 10001- |
