| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

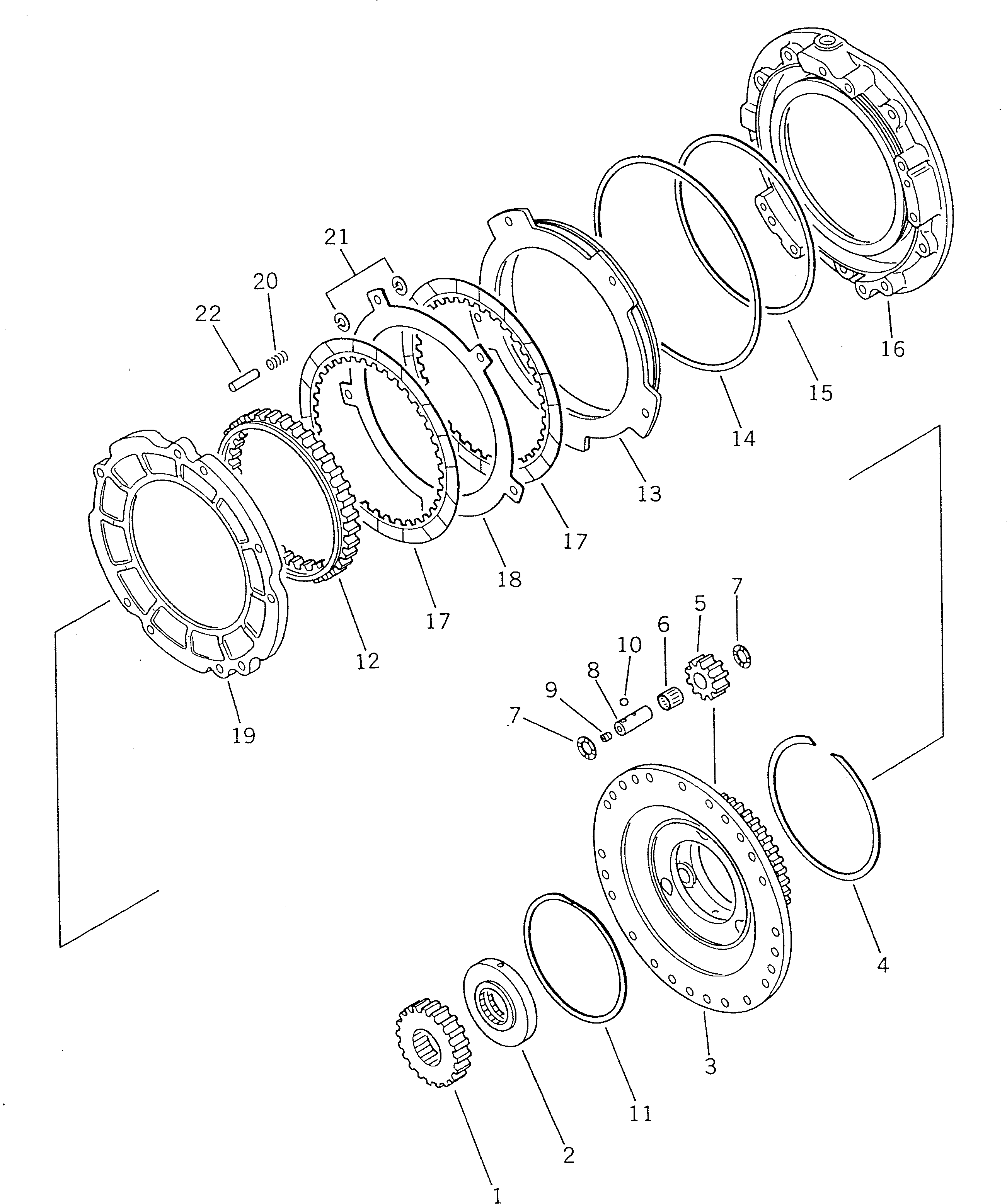

| ? | (421-15-00013) | TRANSMISSION ASS'Y | 1 | SN: 10001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||||
| ? | 421-15-12251 | • GEAR | 1 | SN: 10001- |
|||
| ? | 421-15-12561 | • SPACER | 1 | SN: 10001- |
|||
| ? | 421-15-12351 | • CARRIER | 1 | SN: 10001- |
|||
| ? | 232-15-19540 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-12450 | • GEAR | 3 | SN: 10001- |
|||
| ? | 421-15-19410 | • BEARING | 3 | SN: 10001- |
|||
| ? | 421-15-12360 | • WASHER,THRUST | 6 | SN: 10001- |
|||
| ? | 421-15-00140 | • SHAFT ASS'Y | 3 | SN: 10001- |
|||
| ? | ☆ | • • SHAFT | 1 | SN: 10001- |
|||
| ? | 113-15-21320 | • • PLUG | 1 | SN: 10001- |
|||
| ? | 04260-00635 | • BALL | 3 | SN: 10001- |
|||
| ? | 130-09-15790 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-12680 | • GEAR,RING | 1 | SN: 10001- |
|||
| ? | 421-15-12750 | • PISTON | 1 | SN: 10001- |
|||
| ? | 144-15-22881 | • RING,SEAL (K2) | 1 | SN: 10001- |
|||
| ? | 569-15-12860 | • RING,SEAL (K2) | 1 | SN: 10001- |
|||
| ? | 421-15-11140 | • HOUSING,2ND | 1 | SN: 10001- |
|||
| ? | 424-15-12710 | • DISC | 2 | SN: 10001- |
|||
| ? | 424-15-12720 | • PLATE | 1 | SN: 10001- |
|||
| ? | 424-15-11130 | • HOUSING | 1 | SN: 10001- |
|||
| ? | 421-15-12910 | • SPRING | 10 | SN: 10001- |
|||
| ? | 175-15-42880 | • SPRING | 10 | SN: 10001- |
|||
| ? | 04020-01228 | • PIN,DOWEL | 4 | SN: 10001- |
