| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

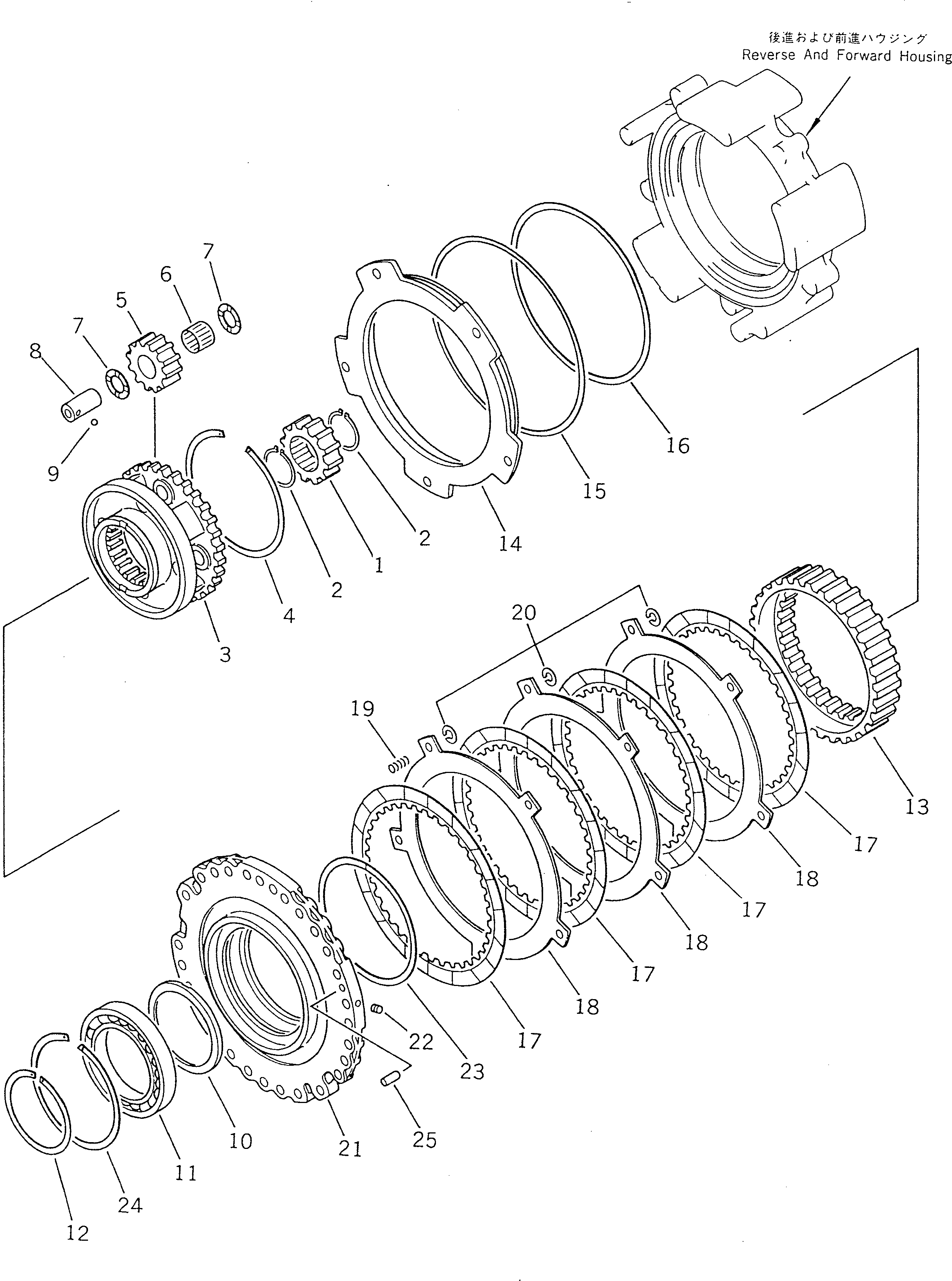

| ? | (421-15-00013) | TRANSMISSION ASS'Y | 1 | SN: 10001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||||
| ? | 421-15-12220 | • GEAR | 1 | SN: 10001- |
|||
| ? | 04064-04818 | • RING,SNAP | 2 | SN: 10001- |
|||
| ? | 421-15-12341 | • CARRIER | 1 | SN: 10001- |
|||
| ? | 232-15-19530 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-12420 | • GEAR | 4 | SN: 10001- |
|||
| ? | 09232-02932 | • BEARING | 4 | SN: 10001- |
|||
| ? | 09233-02920 | • WASHER,THRUST | 8 | SN: 10001- |
|||
| ? | 232-15-12530 | • SHAFT | 4 | SN: 10001- |
|||
| ? | 04260-00635 | • BALL | 4 | SN: 10001- |
|||
| ? | 421-15-12150 | • SPACER | 1 | SN: 10001- |
|||
| ? | 06000-06926 | • BEARING | 1 | SN: 10001- |
|||
| ? | 04070-00130 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-12660 | • GEAR,RING | 1 | SN: 10001- |
|||
| ? | 421-15-12740 | • PISTON,FORWARD | 1 | SN: 10001- |
|||
| ? | 144-15-22881 | • RING,SEAL (K2) | 1 | SN: 10001- |
|||
| ? | 195-15-49210 | • RING,SEAL (K2) | 1 | SN: 10001- |
|||
| ? | 424-15-12710 | • DISC | 4 | SN: 10001- |
|||
| ? | 424-15-12720 | • PLATE | 3 | SN: 10001- |
|||
| ? | 145-14-12790 | • SPRING¤ (L= 59.0) | 10 | SN: 10001- |
|||
| ? | 175-15-42880 | • SPRING | 20 | SN: 10001- |
|||
| ? | 421-15-00120 | • CAGE ASS'Y | 1 | SN: 10001- |
|||
| ? | ☆ | • • CAGE | 1 | SN: 10001- |
|||
| ? | 568-15-11380 | • • PLUG | 1 | SN: 10001- |
|||
| ? | 07018-12105 | • RING,SEAL | 1 | SN: 10001- |
|||
| ? | 04071-00180 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 175-15-31210 | • PIN,DOWEL | 2 | SN: 10001- |
