| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

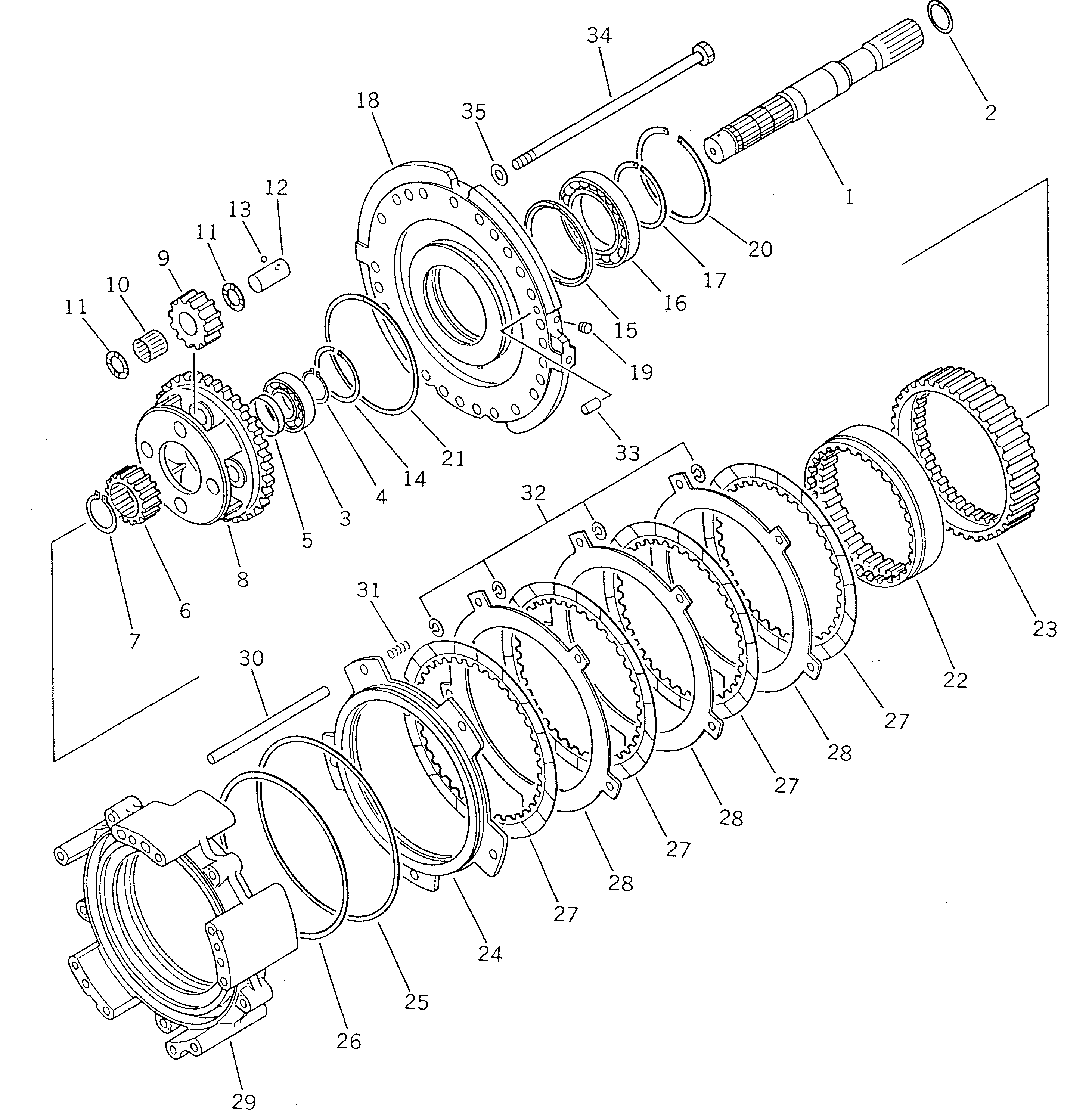

| ? | (421-15-00013) | TRANSMISSION ASS'Y | 1 | SN: 10001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||||
| ? | 421-15-12112 | • SHAFT | 1 | SN: 10001- |
|||
| ? | 07018-20502 | • RING,SEAL | 1 | SN: 10001- |
|||
| ? | 06000-06210 | • BEARING | 1 | SN: 10001- |
|||
| ? | 04064-05020 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-12140 | • SPACER | 1 | SN: 10001- |
|||
| ? | 421-15-12210 | • GEAR | 1 | SN: 10001- |
|||
| ? | 04064-04818 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-12310 | • CARRIER | 1 | SN: 10001- |
|||
| ? | 421-15-12410 | • GEAR | 4 | SN: 10001- |
|||
| ? | 09232-02932 | • BEARING | 4 | SN: 10001- |
|||
| ? | 09233-02920 | • WASHER,THRUST | 8 | SN: 10001- |
|||
| ? | 232-15-12530 | • SHAFT | 4 | SN: 10001- |
|||
| ? | 04260-00635 | • BALL | 4 | SN: 10001- |
|||
| ? | 04077-00090 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-12810 | • SPACER | 1 | SN: 10001- |
|||
| ? | 06000-06922 | • BEARING | 1 | SN: 10001- |
|||
| ? | 04070-00110 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 421-15-00110 | • CAGE ASS'Y | 1 | SN: 10001- |
|||
| ? | ☆ | • • CAGE | 1 | SN: 10001- |
|||
| ? | 175-15-11230 | • • PLUG | 1 | SN: 10001- |
|||
| ? | 04077-00150 | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 07018-12005 | • RING,SEAL | 1 | SN: 10001- |
|||
| ? | 421-15-12620 | • GEAR,RING | 1 | SN: 10001- |
|||
| ? | 421-15-12610 | • GEAR,RING | 1 | SN: 10001- |
|||
| ? | 421-15-12750 | • PISTON,REVERSE | 1 | SN: 10001- |
|||
| ? | 144-15-22881 | • RING,SEAL (K2) | 1 | SN: 10001- |
|||
| ? | 569-15-12860 | • RING,SEAL (K2) | 1 | SN: 10001- |
|||
| ? | 424-15-12710 | • DISC | 4 | SN: 10001- |
|||
| ? | 424-15-12720 | • PLATE | 3 | SN: 10001- |
|||
| ? | 421-15-11171 | • HOUSING,FORWARD AND REVERSE | 1 | SN: 10001- |
|||
| ? | 232-15-11270 | • PIN | 5 | SN: 10001- |
|||
| ? | 145-14-12790 | • SPRING¤ (L= 59.0) | 10 | SN: 10001- |
|||
| ? | 175-15-42880 | • SPRING | 20 | SN: 10001- |
|||
| ? | 04020-01228 | • PIN,DOWEL | 2 | SN: 10001- |
|||
| ? | 421-15-11250 | • BOLT | 9 | SN: 10001- |
|||
| ? | 145-14-11570 | • WASHER | 9 | SN: 10001- |
