| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

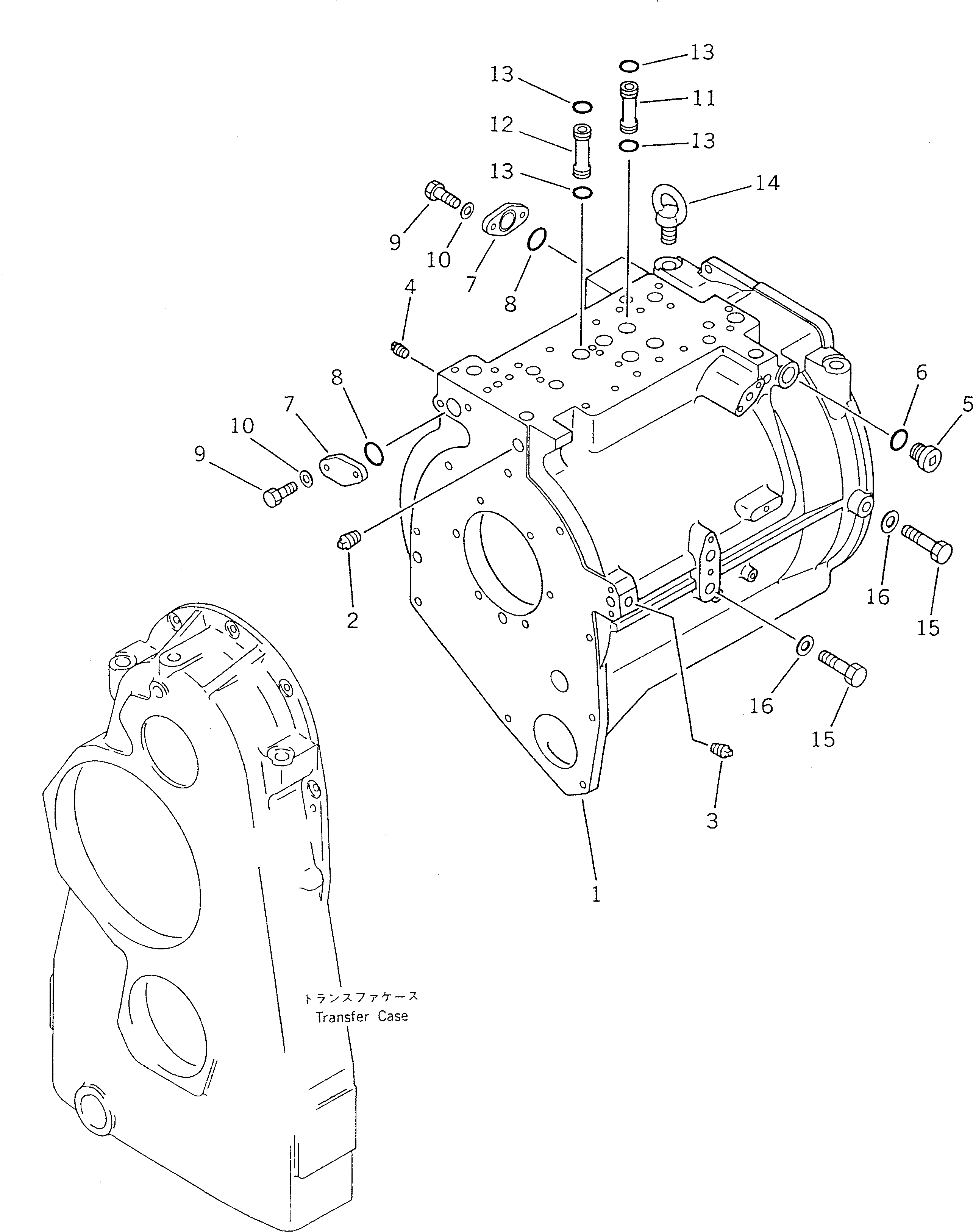

| ? | 421-15-00013 | TRANSMISSION ASS'Y | 1 | SN: 10001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2531. | ||||||
| ? | 421-15-00101 | • CASE ASS'Y | 1 | SN: 10001- |
|||
| ? | ☆ | • • CASE | 1 | SN: 10001- |
|||
| ? | 07042-30415 | • • PLUG | 2 | SN: 10001- |
|||
| ? | 07042-70312 | • • PLUG | 2 | SN: 10001- |
|||
| ? | 07042-30211 | • • PLUG | 1 | SN: 10001- |
|||
| ? | 07040-12414 | • PLUG | 2 | SN: 10001- |
|||
| ? | 07002-02434 | • O-RING (K2) | 2 | SN: 10001- |
|||
| ? | 421-15-11390 | • FLANGE | 2 | SN: 10001- |
|||
| ? | 07000-73032 | • O-RING (K2) | 2 | SN: 10001- |
|||
| ? | 01010-51030 | • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31032 | • WASHER | 4 | SN: 10001- |
|||
| ? | 421-15-11320 | • SLEEVE | 4 | SN: 10001- |
|||
| ? | 421-15-11330 | • SLEEVE | 1 | SN: 10001- |
|||
| ? | 07000-72021 | • O-RING (K2) | 10 | SN: 10001- |
|||
| ? | 04530-02030 | • BOLT | 2 | SN: 10001- |
|||
| ? | 01010-81460 | • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31445 | • WASHER | 4 | SN: 10001- |
