| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

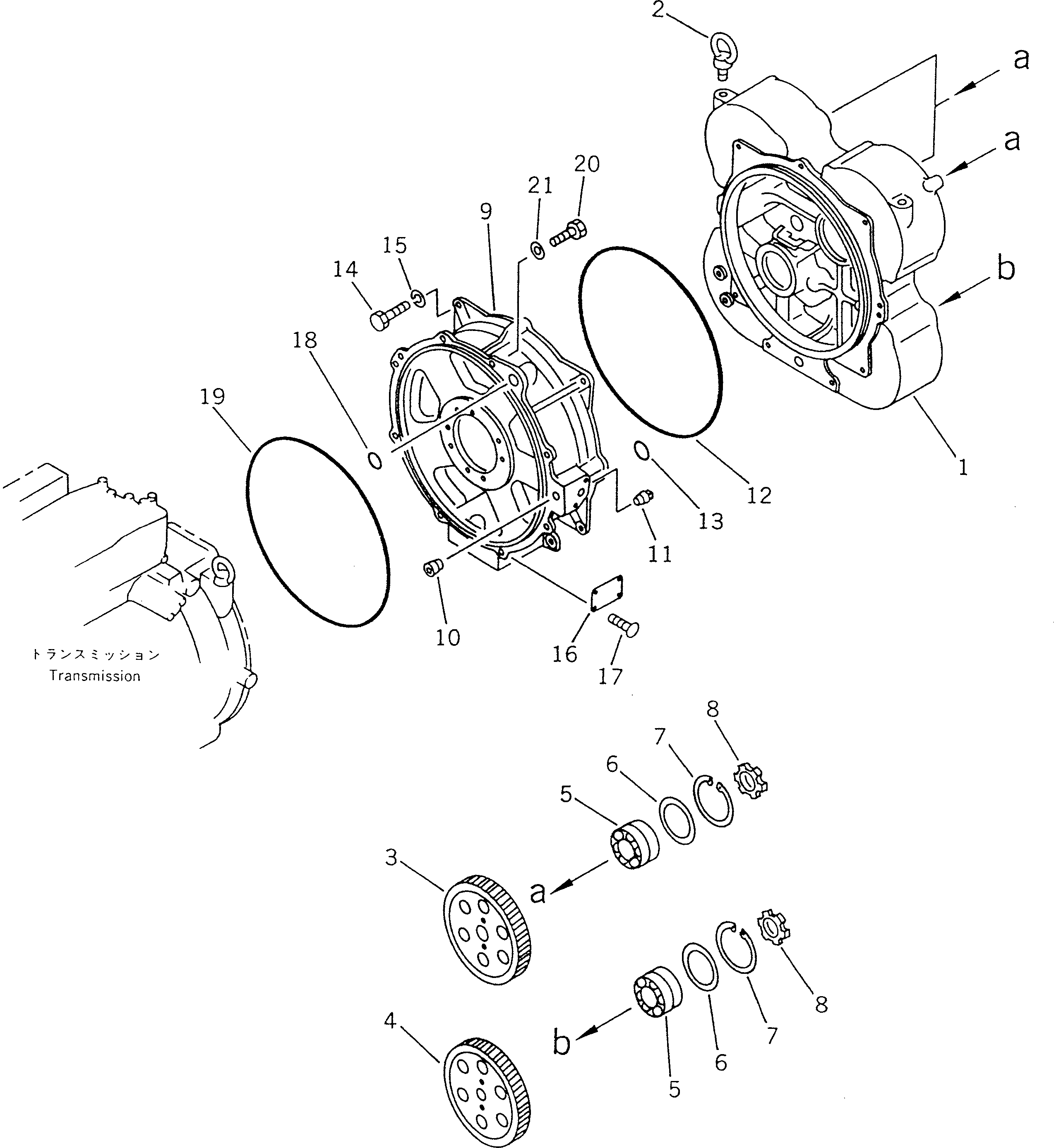

| ? | SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||||
| ? | 711-47-00030 | TORQUE CONVERTER A. | 1 | SN: (3076)- |
|||
| ? | 711-47-31001 | TORQUE CONVERTER A. | 1 | SN: 10001-(3075) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 AND 2311. | ||||||
| ? | 711-47-33130 | • HOUSING | 1 | SN: 10001- |
|||
| ? | 04530-12030 | • BOLT,EYE | 2 | SN: 10001- |
|||
| ? | 711-47-34210 | • GEAR | 3 | SN: 10001- |
|||
| ? | 711-47-34310 | • GEAR | 1 | SN: 10001- |
|||
| ? | 711-35-14230 | • BEARING | 4 | SN: 10001- |
|||
| ? | 711-35-14120 | • PLATE | 4 | SN: 10001- |
|||
| ? | 04065-09530 | • RING,SNAP | 4 | SN: 10001- |
|||
| ? | 01530-04812 | • NUT | 4 | SN: 10001- |
|||
| ? | 711-47-13111 | • HOUSING | 1 | SN: 10001- |
|||
| ? | 07043-00617 | • PLUG | 1 | SN: 10001- |
|||
| ? | 07042-20108 | • PLUG | 1 | SN: 10001- |
|||
| ? | 07000-65420 | • O-RING (K1) | 1 | SN: 10001- |
|||
| ? | 07000-63035 | • O-RING (K1) | 1 | SN: 10001- |
|||
| ? | 01010-51235 | • BOLT | 9 | SN: 10001- |
|||
| ? | 01602-21236 | • WASHER,SPRING | 9 | SN: 10001- |
|||
| ? | 09607-05080 | • PLATE¤ NAME,(LIMITED SUPPLY) | 1 | SN: 10001- |
|||
| ? | 04418-03060 | • SCREW | 4 | SN: 10001- |
|||
| ? | 07000-73035 | O-RING | 1 | SN: 10001- |
|||
| ? | 07000-05465 | O-RING | 1 | SN: 10001- |
|||
| ? | 01010-51235 | BOLT | 8 | SN: 10001- |
|||
| ? | 01643-31232 | WASHER | 8 | SN: 10001- |
