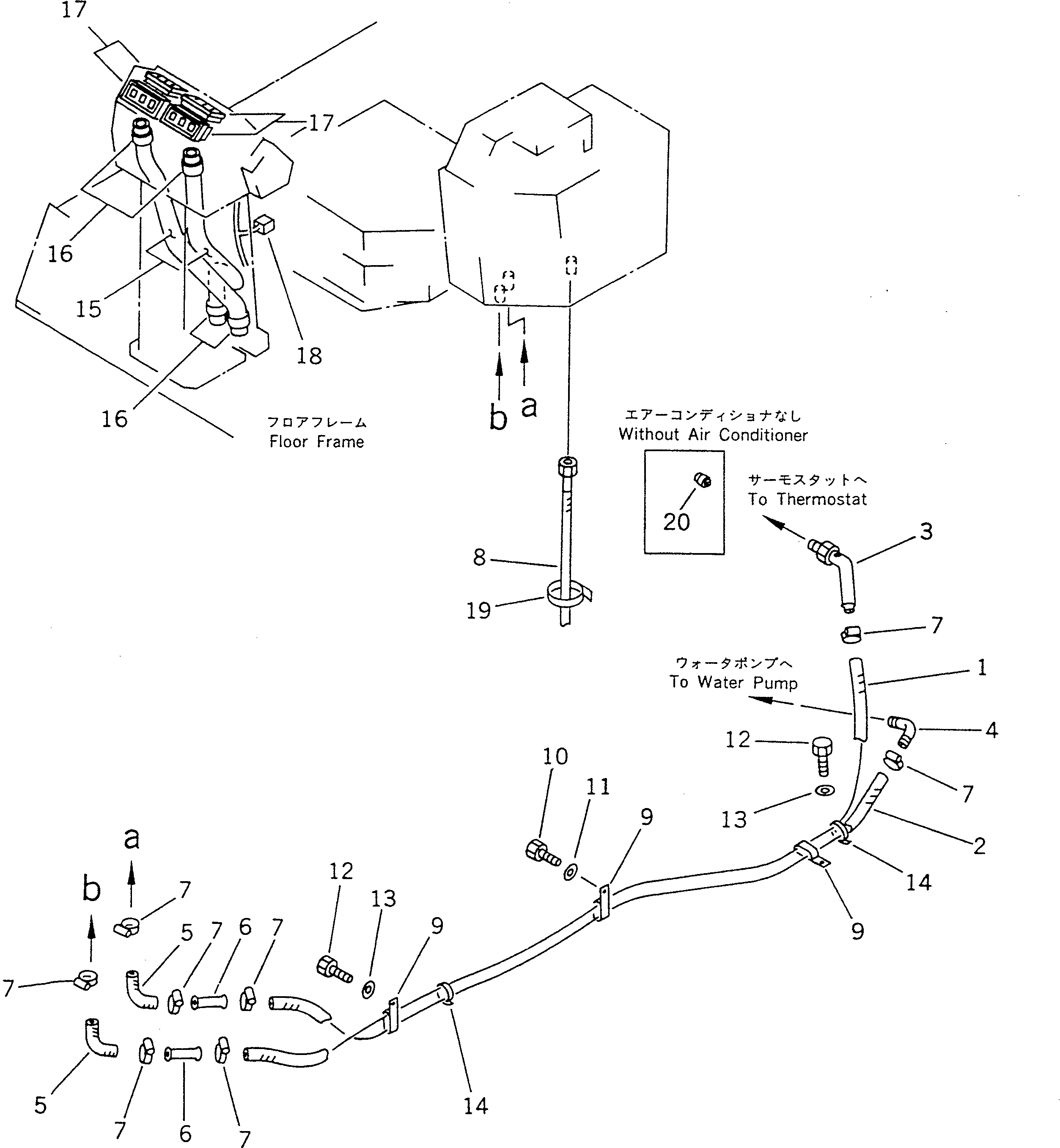

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 09483-10533 | HOSE | 1 | SN: 10001- |
|||
| ? | 09483-10525 | HOSE | 1 | SN: 10001- |
|||
| ? | 424-07-11360 | ELBOW | 1 | SN: 10001- |
|||
| ? | 6137-81-3221 | ELBOW | 1 | SN: 10001- |
|||
| ? | 09483-30550 | HOSE | 2 | SN: 10001- |
|||
| ? | 09484-00560 | CONNECTOR | 2 | SN: 10001- |
|||
| ? | 07281-00259 | CLAMP | 8 | SN: 10001- |
|||
| ? | 425-963-1190 | HOSE | 1 | SN: 10001- |
|||
| ? | 421-07-11550 | CLIP | 3 | SN: 10001- |
|||
| ? | 01010-51025 | BOLT | 1 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 1 | SN: 10001- |
|||
| ? | 01010-51225 | BOLT | 2 | SN: 10001- |
|||
| ? | 01643-31232 | WASHER | 2 | SN: 10001- |
|||
| ? | 08034-00536 | BAND | 2 | SN: 10001- |
|||
| ? | 421-07-12831 | HOSE | 2 | SN: 10001- |
|||
| ? | 421-07-12810 | CONNECTOR | 4 | SN: 10001- |
|||
| ? | 421-07-12512 | GRILLE ASS'Y | 4 | SN: 10001- |
|||
| ? | 424-09-12610 | COVER,(WITHOUT AIR CONDITIONER) | 4 | SN: 10001- |
|||
| ? | 419-963-1510 | WIRE ASS'Y | 1 | SN: 10001- |
|||
| ? | 08034-00536 | BAND | 1 | SN: 10001- |
|||
| ? | 07042-70415 | PLUG,(WITHOUT AIR CONDITIONER) | 1 | SN: 10001- |
