| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

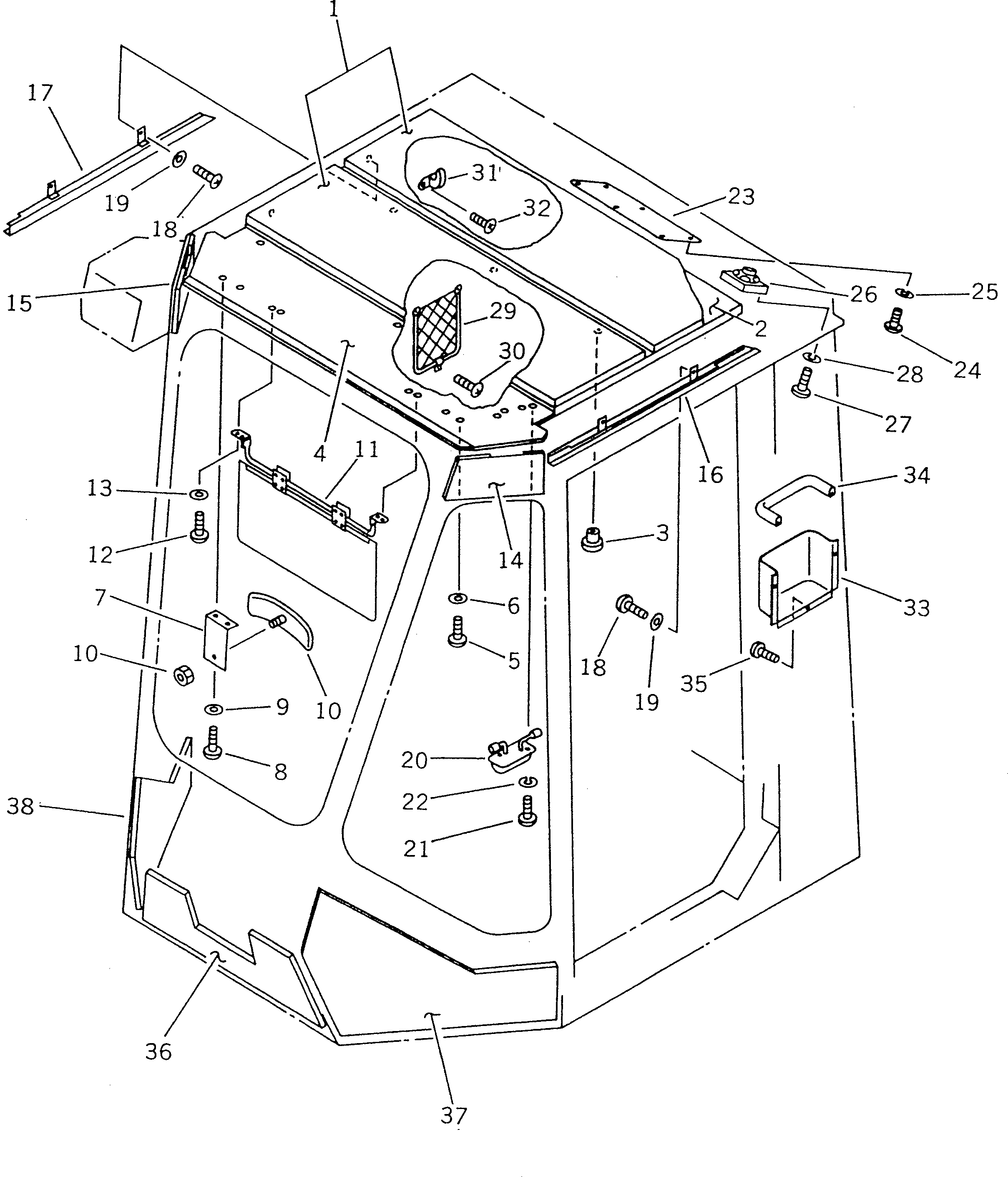

| ? | (41K-56-11000) | OPERATOR'S CAB ASS'Y | 1 | SN: 10001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5431 TO 5436. | ||||||
| ? | 421-56-11850 | • INSULATOR | 2 | SN: 10001- |
|||
| ? | 421-56-11242 | • PAD | 1 | SN: 10001- |
|||
| ? | 09416-10000 | • BUTTON | 3 | SN: 10001- |
|||
| ? | 421-56-11251 | • COVER | 1 | SN: 10001- |
|||
| ? | 01225-40516 | • SCREW | 4 | SN: 10001- |
|||
| ? | 421-54-15790 | • WASHER | 4 | SN: 10001- |
|||
| ? | 419-56-11271 | • STAY | 1 | SN: 10001- |
|||
| ? | 01225-40516 | • SCREW | 2 | SN: 10001- |
|||
| ? | 421-54-15790 | • WASHER | 2 | SN: 10001- |
|||
| ? | 419-56-11260 | • MIRROR,ROOM | 1 | SN: 10001- |
|||
| ? | 419-56-11251 | • SUN VISOR | 1 | SN: 10001- |
|||
| ? | 01220-40516 | • SCREW | 4 | SN: 10001- |
|||
| ? | 01641-20508 | • WASHER | 4 | SN: 10001- |
|||
| ? | 421-56-11451 | • PAD,L.H. | 1 | SN: 10001- |
|||
| ? | 421-56-11461 | • PAD,R.H. | 1 | SN: 10001- |
|||
| ? | 421-56-11380 | • COVER,L.H. | 1 | SN: 10001- |
|||
| ? | 421-56-11390 | • COVER,R.H. | 1 | SN: 10001- |
|||
| ? | 01225-40516 | • SCREW | 4 | SN: 10001- |
|||
| ? | 421-54-15790 | • WASHER | 4 | SN: 10001- |
|||
| ? | 08141-12400 | • LAMP,ROOM | 1 | SN: 10001- |
|||
| ? | 08116-02410 | • • BULB¤ 10W | 1 | SN: 10001- |
|||
| ? | 01220-40416 | • SCREW | 2 | SN: 10001- |
|||
| ? | 01601-20410 | • WASHER,SPRING | 2 | SN: 10001- |
|||
| ? | 419-923-1310 | • PLATE | 1 | SN: 10001- |
|||
| ? | 01220-40512 | • SCREW | 6 | SN: 10001- |
|||
| ? | 01601-20513 | • WASHER,SPRING | 6 | SN: 10001- |
|||
| ? | 205-06-62320 | • SPEAKER | 1 | SN: 10001- |
|||
| ? | 01220-40520 | • SCREW | 4 | SN: 10001- |
|||
| ? | 01601-20513 | • WASHER,SPRING | 4 | SN: 10001- |
|||
| ? | 419-54-15522 | 1 | SN: 10001- |
||||
| ? | 01220-40416 | • SCREW | 3 | SN: 10001- |
|||
| ? | 205-54-51250 | • HANGER | 1 | SN: 10001- |
|||
| ? | 01224-40416 | • SCREW | 2 | SN: 10001- |
|||
| ? | 421-56-11342 | • BOX | 1 | SN: 10001- |
|||
| ? | 421-56-11820 | • FINISHER | 1 | SN: 10001- |
|||
| ? | 01220-40416 | • SCREW | 3 | SN: 10001- |
|||
| ? | 421-56-11310 | • PAD | 1 | SN: 10001- |
|||
| ? | 421-56-11320 | • PAD,L.H. | 1 | SN: 10001- |
|||
| ? | 421-56-11330 | • PAD,R.H. | 1 | SN: 10001- |
