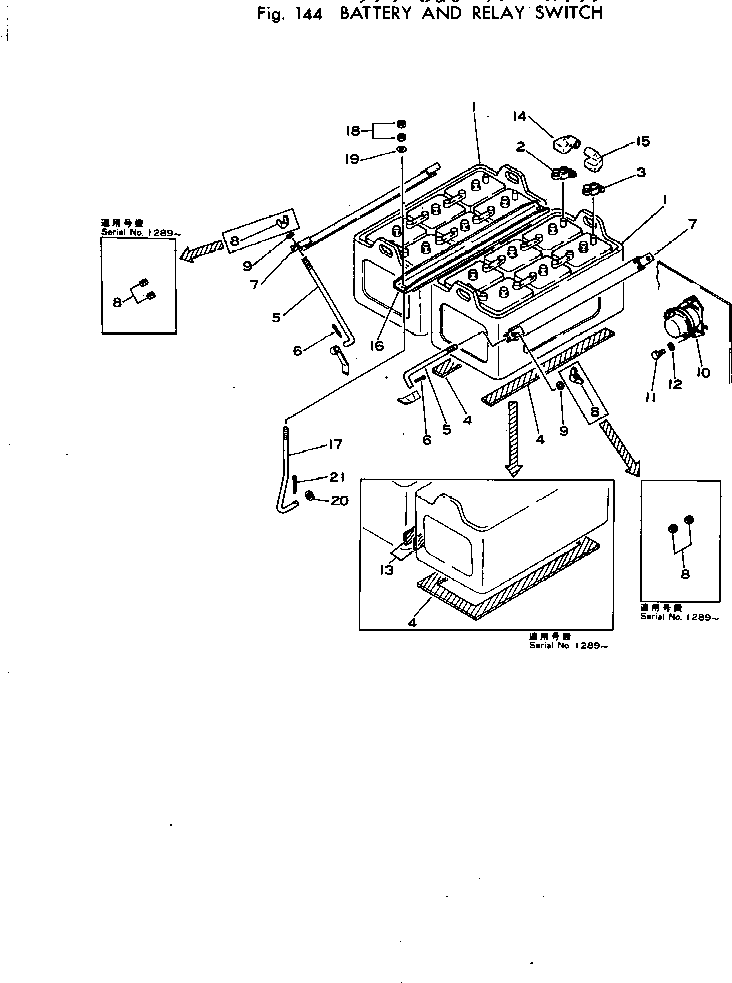

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 08000-02220 | BATTERY (190H52) | 2 | SN: 1289- |
|||
| ? | □08000-01220 | BATTERY (190H52) | 2 | SN: 1008-1288 |
|||
| ? | 08000-00000 | TERMINAL ? (+) | 2 | SN: 1008- |
|||
| ? | 08000-00001 | TERMINAL ? (-) | 2 | SN: 1008- |
|||
| ? | 281-06-14180 | SEAT,BATTERY | 2 | SN: 1188- |
|||
| ? | 08007-03549 | CUSHION,BATTERY | 4 | SN: 1008-1187 |
|||
| ? | 281-06-14120 | ROD | 4 | SN: 1008- |
|||
| ? | 04050-13018 | PIN,COTTER | 4 | SN: 1008- |
|||
| ? | 281-06-14131 | CLAMP | 2 | SN: 1289- |
|||
| ? | □281-06-14130 | CLAMP | 2 | SN: 1008-1288 |
|||
| ? | 01582-11008 | NUT | 8 | SN: 1289- |
|||
| ? | 01540-11050 | NUT,WING | 4 | SN: 1008-1288 |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 1289- |
|||
| ? | 01640-21016 | WASHER | 4 | SN: 1008-1288 |
|||
| ? | 08088-10000 | SWITCH,BATTERY RELAY | 1 | SN: 1287- |
|||
| ? | 08088-00000 | SWITCH,BATTERY RELAY | 1 | SN: 1008-1286 |
|||
| ? | 01010-50810 | BOLT | 2 | SN: 1008- |
|||
| ? | 01602-20825 | WASHER | 2 | SN: 1008- |
|||
| ? | (08007-03549) | CUSHION | 2 | SN: 1188- |
|||
| ? | 287-09-11320 | BOOT | 3 | SN: 1289- |
|||
| ? | 287-09-11320 | BOOT | 2 | SN: 1008-1288 |
|||
| ? | 287-09-11330 | BOOT | 1 | SN: 1289- |
|||
| ? | 287-09-11330 | BOOT | 2 | SN: 1008-1288 |
|||
| ? | 281-06-14170 | CLAMP | 1 | SN: 1287- |
|||
| ? | 281-06-14160 | ROD | 2 | SN: 1287- |
|||
| ? | 01582-11008 | NUT | 4 | SN: 1287- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 1287- |
|||
| ? | 01641-21016 | WASHER | 2 | SN: 1287- |
|||
| ? | 04050-13018 | PIN,COTTER | 2 | SN: 1287- |
