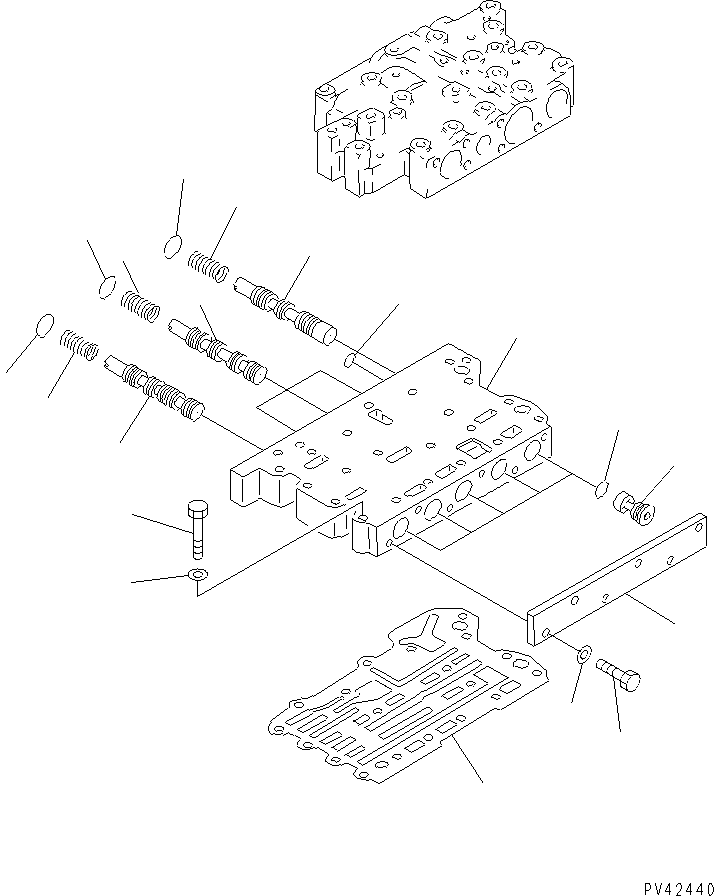

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||||
| ? | (427-15-01001) | TORQFLOW ASS'Y | 1 | SN: (1045)-(1100) |
|||
| ? | (□427-15-01000) | TORQFLOW ASS'Y | 1 | SN: 10001-(1044) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||||
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||||
| ? | (427-15-00013) | • TRANSMISSION ASS'Y | 1 | SN: (1144)- |
|||
| ? | (□427-15-00012) | • TRANSMISSION ASS'Y | 1 | SN: (1101)-(1143) |
|||
| ? | (427-15-00011) | • TRANSMISSION ASS'Y | 1 | SN: 10001-(1100) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524. | ||||||
| ? | (427-15-00201) | • • CONTROL VALVE A. | 1 | SN: (1101)- |
|||
| ? | (427-15-00200) | • • CONTROL VALVE A. | 1 | SN: 10001-(1100) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2521 TO 2524. | ||||||
| ? | 427-15-00300 | • • • VALVE ASS'Y | 1 | SN: 10001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2521 TO 2523. | ||||||
| ? | 195-15-35110 | • • • • BODY,VALVE | 1 | SN: 10001- |
|||
| ? | 195-15-35320 | • • • • VALVE,REVERSE | 1 | SN: 10001- |
|||
| ? | 195-15-35330 | • • • • VALVE,FORWARD¤ 1ST¤ 2ND | 3 | SN: 10001- |
|||
| ? | 195-15-35340 | • • • • VALVE,3RD | 1 | SN: 10001- |
|||
| ? | 195-15-35370 | • • • • STOPPER | 5 | SN: 10001- |
|||
| ? | 07000-72018 | • • • • O-RING (K4) | 5 | SN: 10001- |
|||
| ? | 568-15-15330 | • • • • SPRING¤ (L= 78.0) | 5 | SN: 10001- |
|||
| ? | 07000-73028 | • • • • O-RING (K4) | 5 | SN: 10001- |
|||
| ? | 07000-72018 | • • • • O-RING (K4) | 1 | SN: 10001- |
|||
| ? | 195-15-35380 | • • • • PLATE | 1 | SN: 10001- |
|||
| ? | 01010-81030 | • • • • BOLT | 6 | SN: 10001- |
|||
| ? | 01643-51032 | • • • • WASHER | 6 | SN: 10001- |
|||
| ? | 195-15-35910 | • • • • GASKET (K4) | 1 | SN: 10001- |
|||
| ? | 01010-81090 | • • BOLT | 2 | SN: 10001- |
|||
| ? | 01643-31032 | • • WASHER | 2 | SN: 10001- |
