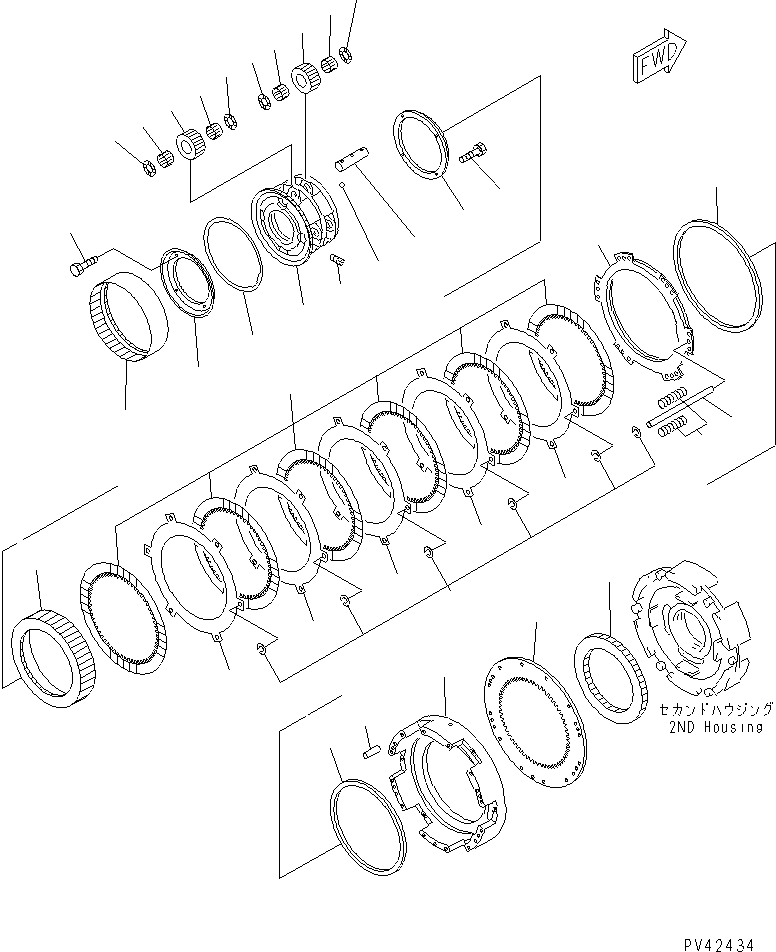

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||||
| ? | (427-15-01001) | TORQFLOW ASS'Y | 1 | SN: (1045)-(1100) |
|||
| ? | (□427-15-01000) | TORQFLOW ASS'Y | 1 | SN: 10001-(1044) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||||
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||||
| ? | (427-15-00013) | • TRANSMISSION ASS'Y | 1 | SN: (1144)- |
|||
| ? | (□427-15-00012) | • TRANSMISSION ASS'Y | 1 | SN: (1101)-(1143) |
|||
| ? | (427-15-00011) | • TRANSMISSION ASS'Y | 1 | SN: 10001-(1100) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524. | ||||||
| ? | 427-15-00130 | • • CARRIER ASS'Y | 1 | SN: 10001- |
|||
| ? | ☆ | • • • CARRIER | 1 | SN: 10001- |
|||
| ? | 568-15-11380 | • • • PLUG | 8 | SN: 10001- |
|||
| ? | 427-15-12420 | • • GEAR | 8 | SN: 10001- |
|||
| ? | 582-15-19720 | • • BEARING | 16 | SN: 10001- |
|||
| ? | 427-15-12560 | • • WASHER,THRUST | 16 | SN: 10001- |
|||
| ? | 427-15-12520 | • • SHAFT | 4 | SN: 10001- |
|||
| ? | 04260-00635 | • • BALL | 4 | SN: 10001- |
|||
| ? | 427-15-12370 | • • COVER | 1 | SN: 10001- |
|||
| ? | 01252-31035 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 427-15-12651 | • • GEAR,RING | 1 | SN: (1062)- |
|||
| ? | □427-15-12650 | • • GEAR,RING | 1 | SN: 10001-(1061) |
|||
| ? | 198-15-29520 | • • RING | 1 | SN: 10001- |
|||
| ? | 427-15-12360 | • • COVER | 1 | SN: 10001- |
|||
| ? | 01252-31035 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 427-15-12630 | • • GEAR,RING | 1 | SN: 10001- |
|||
| ? | 427-15-11161 | • • HOUSING | 1 | SN: (1062)- |
|||
| ? | □427-15-11160 | • • HOUSING | 1 | SN: 10001-(1061) |
|||
| ? | 04020-01842 | • • PIN,DOWEL | 2 | SN: 10001- |
|||
| ? | 427-15-11170 | • • HOUSING,FORWARD | 1 | SN: 10001- |
|||
| ? | 568-15-11370 | • • PIN,(D=20¤ L=237.5) | 6 | SN: 10001- |
|||
| ? | 427-15-12760 | • • PISTON,FORWARD | 1 | SN: 10001- |
|||
| ? | 427-15-19210 | • • RING,SEAL (K3) | 1 | SN: 10001- |
|||
| ? | 195-15-29210 | • • RING,SEAL (K3) | 1 | SN: 10001- |
|||
| ? | 427-15-12640 | • • GEAR,RING | 1 | SN: 10001- |
|||
| ? | 198-15-22710 | • • DISC | 6 | SN: 10001- |
|||
| ? | 198-15-22720 | • • PLATE | 5 | SN: 10001- |
|||
| ? | 568-15-12960 | • • SPRING,(L=108.5) | 12 | SN: 10001- |
|||
| ? | 195-15-12880 | • • SPRING | 36 | SN: 10001- |
