| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||||
| ? | (427-15-01001) | TORQFLOW ASS'Y | 1 | SN: (1045)-(1100) |
|||
| ? | (□427-15-01000) | TORQFLOW ASS'Y | 1 | SN: 10001-(1044) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||||
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||||
| ? | 427-15-00013 | • TRANSMISSION ASS'Y | 1 | SN: (1144)- |
|||
| ? | □427-15-00012 | • TRANSMISSION ASS'Y | 1 | SN: (1101)-(1143) |
|||
| ? | 427-15-00011 | • TRANSMISSION ASS'Y | 1 | SN: 10001-(1100) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524. | ||||||

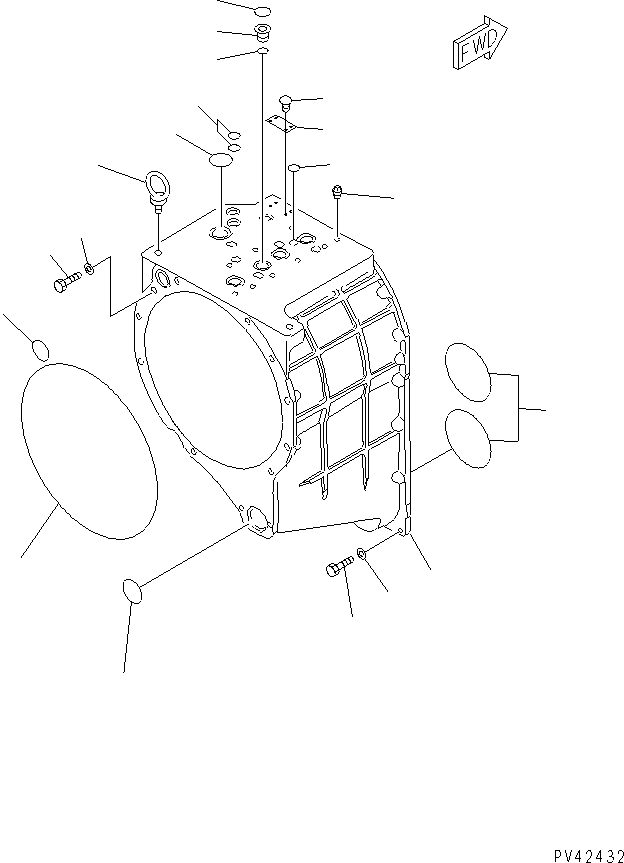

| ? | 427-15-11110 | • • CASE | 1 | SN: 10001- |
|||
| ? | 07042-70211 | • • PLUG | 1 | SN: (1308)- |
|||
| ? | 07042-00211 | • • PLUG | 1 | SN: 10001-(1307) |
|||
| ? | 07048-02216 | • • PLUG | 2 | SN: (1292)- |
|||
| ? | 04530-02438 | • • BOLT,EYE | 2 | SN: 10001-(1291) |
|||
| ? | 198-15-21310 | • • SLEEVE | 4 | SN: 10001- |
|||
| ? | 07000-73030 | • • O-RING (K3) | 4 | SN: 10001- |
|||
| ? | 07000-73050 | • • O-RING (K3) | 4 | SN: 10001- |
|||
| ? | 07000-72065 | • • O-RING (K3) | 2 | SN: 10001- |
|||
| ? | 07000-73025 | • • O-RING (K3) | 6 | SN: 10001- |
|||
| ? | 07000-73035 | • • O-RING (K3) | 3 | SN: 10001- |
|||
| ? | 07000-02085 | • • O-RING (K3) | 1 | SN: 10001- |
|||
| ? | 07000-05190 | • • O-RING (K3) | 2 | SN: 10001- |
|||
| ? | 281-09-11110 | • • O-RING (K3) | 1 | SN: (1387)- |
|||
| ? | □198-15-29610 | • • O-RING (K3) | 1 | SN: 10001-(1386) |
|||
| ? | 09608-05080 | • • PLATE¤ NAME,(LIMITED SUPPLY) | 1 | SN: 10001- |
|||
| ? | 04418-13060 | • • SCREW | 4 | SN: 10001- |
|||
| ? | 01010-61645 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31645 | • • WASHER | 4 | SN: 10001- |
|||
| ? | 01010-61645 | • • BOLT | 13 | SN: 10001- |
|||
| ? | 01643-31645 | • • WASHER | 13 | SN: 10001- |
