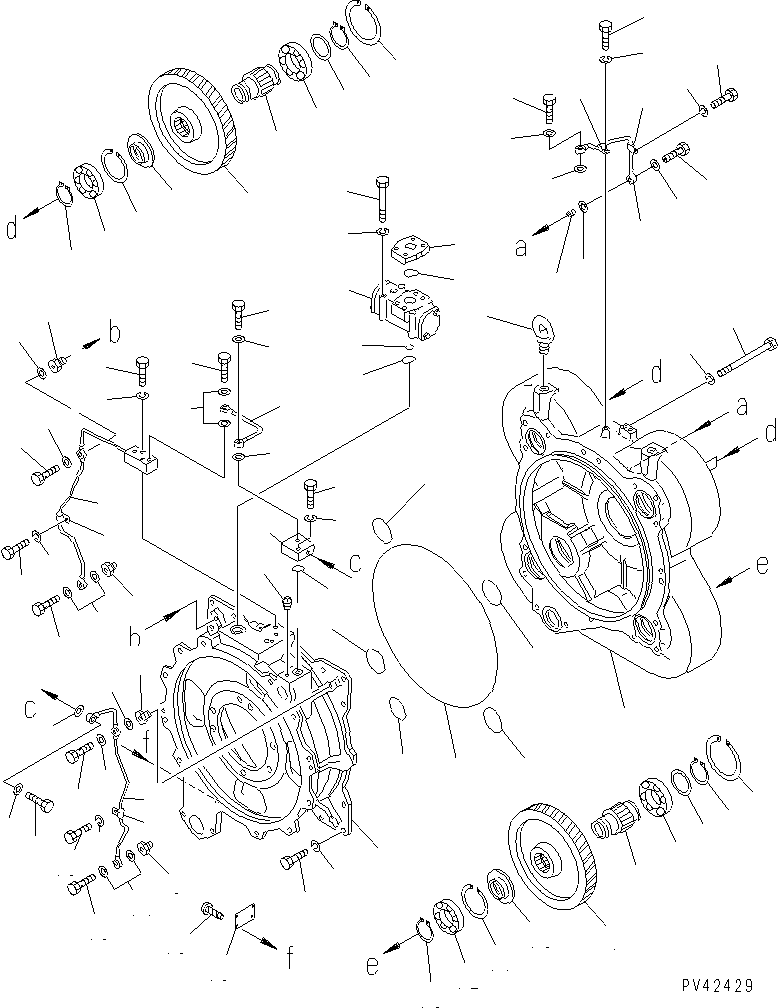

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||||
| ? | 427-15-01001 | TORQFLOW ASS'Y | 1 | SN: (1045)-(1100) |
|||
| ? | □427-15-01000 | TORQFLOW ASS'Y | 1 | SN: 10001-(1044) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||||
| ? | 711-56-00011 | • TORQUE CONVERTER A. | 1 | SN: (1045)- |
|||
| ? | □711-56-00010 | • TORQUE CONVERTER A. | 1 | SN: 10001-(1044) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2321. | ||||||
| ? | 711-56-33131 | • • HOUSING,FRONT | 1 | SN: 10001- |
|||
| ? | 711-21-13850 | • • NOZZLE,(D=1.6MM) | 1 | SN: 10001- |
|||
| ? | 04530-03045 | • • BOLT | 2 | SN: 10001- |
|||
| ? | 711-56-33110 | • • HOUSING,REAR | 1 | SN: 10001- |
|||
| ? | 711-56-36960 | • • PLUG,(D=1.4MM¤ 0.6MM) | 4 | SN: 10001- |
|||
| ? | 07042-20108 | • • PLUG | 1 | SN: 10001- |
|||
| ? | 711-56-34211 | • • GEAR | 4 | SN: 10001- |
|||
| ? | 711-56-34361 | • • SHAFT | 3 | SN: 10001- |
|||
| ? | 711-56-34461 | • • SHAFT | 1 | SN: 10001- |
|||
| ? | 711-56-34370 | • • COLLAR | 4 | SN: 10001- |
|||
| ? | 04071-00120 | • • RING,SNAP | 4 | SN: 10001- |
|||
| ? | 06032-00213 | • • BEARING | 4 | SN: (1387)- |
|||
| ? | 711-56-14380 | • • BEARING | 4 | SN: 10001-(1386) |
|||
| ? | 04064-06525 | • • RING,SNAP | 4 | SN: 10001- |
|||
| ? | 06040-06315 | • • BEARING | 3 | SN: 10001- |
|||
| ? | 195-13-11730 | • • SPACER | 3 | SN: 10001- |
|||
| ? | 04064-07525 | • • RING,SNAP | 3 | SN: 10001- |
|||
| ? | 04071-00160 | • • RING,SNAP | 3 | SN: 10001- |
|||
| ? | 06040-06214 | • • BEARING | 1 | SN: 10001- |
|||
| ? | 711-47-11770 | • • PLATE | 1 | SN: 10001- |
|||
| ? | 04064-07025 | • • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 04071-00125 | • • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 566-13-13341 | • • O-RING (K1) | 1 | SN: (1045)- |
|||
| ? | □711-33-13340 | • • O-RING (K1) | 1 | SN: 10001-(1044) |
|||
| ? | 07000-72105 | • • O-RING (K1) | 4 | SN: (1285)- |
|||
| ? | 07000-62105 | • • O-RING (K1) | 4 | SN: 10001-(1284) |
|||
| ? | 07000-72085 | • • O-RING (K1) | 1 | SN: 10001- |
|||
| ? | 01011-61685 | • • BOLT | 2 | SN: 10001- |
|||
| ? | 01010-61645 | • • BOLT | 16 | SN: 10001- |
|||
| ? | 01643-31645 | • • WASHER | 18 | SN: (1283)- |
|||
| ? | 01602-21648 | • • WASHER,SPRING | 18 | SN: 10001-(1282) |
|||
| ? | (711-56-36600) | • • VALVE ASS'Y,(SEE FIG.2321) | 1 | SN: 10001- |
|||
| ? | 07000-73048 | • • O-RING (K2) | 1 | SN: 10001- |
|||
| ? | 07000-72014 | • • O-RING (K2) | 2 | SN: 10001- |
|||
| ? | 01011-81010 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 4 | SN: 10001- |
|||
| ? | 711-56-36710 | • • FLANGE | 1 | SN: 10001- |
|||
| ? | 07000-73048 | • • O-RING (K2) | 1 | SN: (1285)- |
|||
| ? | 07000-63048 | • • O-RING (K2) | 1 | SN: 10001-(1284) |
|||
| ? | 711-56-36911 | • • BLOCK | 1 | SN: 10001- |
|||
| ? | 07000-73028 | • • O-RING (K1) | 1 | SN: 10001- |
|||
| ? | 711-56-36931 | • • TUBE | 1 | SN: 10001- |
|||
| ? | 01010-81055 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31645 | • • WASHER | 4 | SN: (1285)- |
|||
| ? | 01602-21030 | • • WASHER,SPRING | 4 | SN: 10001-(1284) |
|||
| ? | 711-56-36921 | • • TUBE | 1 | SN: 10001- |
|||
| ? | 711-56-36941 | • • TUBE | 1 | SN: 10001- |
|||
| ? | 711-56-36950 | • • TUBE | 1 | SN: 10001- |
|||
| ? | 07206-30812 | • • BOLT | 9 | SN: 10001- |
|||
| ? | 07005-01212 | • • GASKET (K1) | 18 | SN: 10001- |
|||
| ? | 04434-00808 | • • CLIP | 4 | SN: 10001- |
|||
| ? | 01010-80816 | • • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31645 | • • WASHER | 4 | SN: (1285)- |
|||
| ? | 01602-20825 | • • WASHER,SPRING | 4 | SN: 10001-(1284) |
|||
| ? | 09607-05080 | • • PLATE¤ NAME,(LIMITED SUPPLY) | 1 | SN: 10001- |
|||
| ? | 04418-13060 | • • SCREW | 4 | SN: 10001- |
