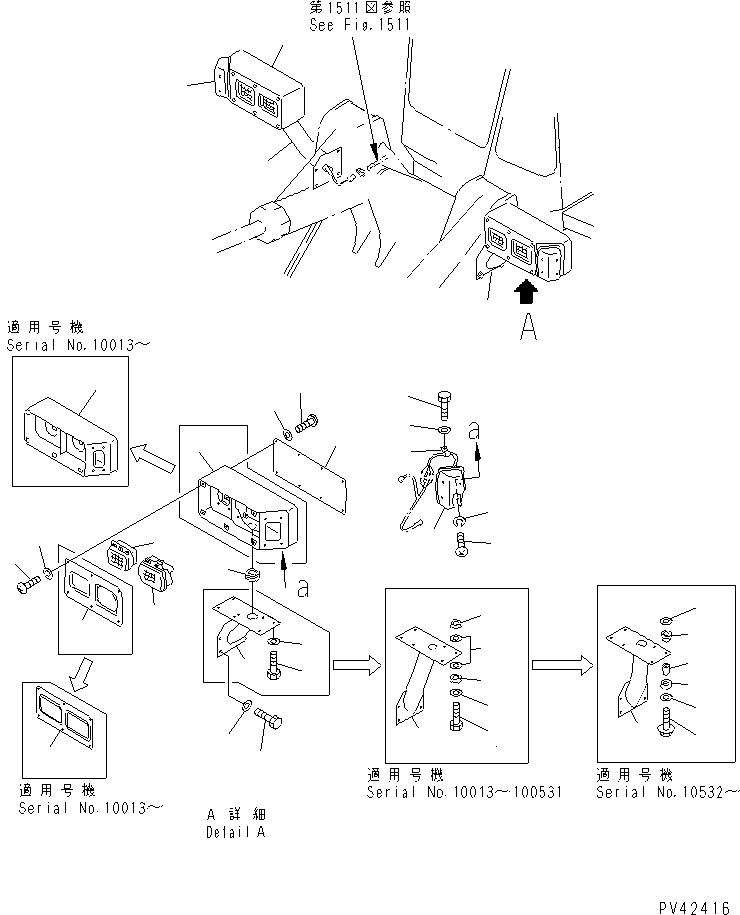

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 427-06-13114 | SUPPORT,L.H. | 1 | SN: 10532- |
|||
| ? | 427-06-13113 | SUPPORT,L.H. | 1 | SN: 10001-10531 |
|||
| ? | (☒427-06-13112) | SUPPORT,L.H. | 1 | SN: (10001-10011) |
|||
| ? | 427-06-13124 | SUPPORT,R.H. | 1 | SN: 10532- |
|||
| ? | 427-06-13123 | SUPPORT,R.H. | 1 | SN: 10001-10531 |
|||
| ? | (☒427-06-13122) | SUPPORT,R.H. | 1 | SN: (10001-10011) |
|||
| ? | 01435-01240 | BOLT | 8 | SN: 10501- |
|||
| ? | 01010-51240 | BOLT | 8 | SN: 10001-10499 |
|||
| ? | 01643-31232 | WASHER | 8 | SN: 10001-10499 |
|||
| ? | 427-06-13132 | BRACKET,L.H. | 1 | SN: 10013- |
|||
| ? | 427-06-13130 | BRACKET,L.H. | 1 | SN: 10001-10012 |
|||
| ? | 427-06-13142 | BRACKET,R.H. | 1 | SN: 10013- |
|||
| ? | 427-06-13140 | BRACKET,R.H. | 1 | SN: 10001-10012 |
|||
| ? | 01435-01250 | BOLT | 12 | SN: 10532- |
|||
| ? | 01010-51235 | BOLT | 12 | SN: 10013-10531 |
|||
| ? | 01010-51225 | BOLT | 12 | SN: 10001-10012 |
|||
| ? | 419-43-17920 | WASHER | 24 | SN: 10532- |
|||
| ? | 427-06-13240 | WASHER | 12 | SN: 10001-10531 |
|||
| ? | (☒01643-31232) | WASHER | 12 | SN: (10001-10012) |
|||
| ? | 415-46-11380 | CUSHION | 24 | SN: 10013-10531 |
|||
| ? | 01641-21223 | WASHER | 24 | SN: 10013-10531 |
|||
| ? | 415-64-13130 | CUSHION | 12 | SN: 10532- |
|||
| ? | 419-43-17930 | CUSHION | 12 | SN: 10532- |
|||
| ? | 417-62-14130 | SPACER | 12 | SN: 10532- |
|||
| ? | 427-06-13151 | COVER | 2 | SN: 10013- |
|||
| ? | 427-06-13150 | COVER | 2 | SN: 10001-10012 |
|||
| ? | 01220-40610 | SCREW | 12 | SN: 10001- |
|||
| ? | 01602-20619 | WASHER,SPRING | 12 | SN: 10001- |
|||
| ? | 421-06-13202 | WORK LAMP ASS'Y,HEAD | 2 | SN: 10013- |
|||
| ? | 421-06-13102 | LAMP ASS'Y,HEAD | 2 | SN: 10001-10012 |
|||
| ? | 22W-06-12170 | • BULB | 1 | SN: 10013- |
|||
| ? | 421-06-13110 | • BULB¤ 85/65W | 1 | SN: 10001-10012 |
|||
| ? | 421-06-13120 | • CUSHION | 4 | SN: 10001- |
|||
| ? | 421-06-13202 | WORK LAMP ASS'Y | 2 | SN: 10001- |
|||
| ? | 22W-06-12170 | • BULB | 1 | SN: 10001- |
|||
| ? | 421-06-13120 | • CUSHION | 4 | SN: 10001- |
|||
| ? | 421-06-13301 | LAMP ASS'Y,L.H. | 1 | SN: 10001- |
|||
| ? | 421-06-13401 | LAMP ASS'Y,R.H. | 1 | SN: 10001- |
|||
| ? | 22W-06-12310 | • LENS,L.H. | 1 | SN: 10001- |
|||
| ? | 22W-06-12320 | • LENS,R.H. | 1 | SN: 10001- |
|||
| ? | 421-06-13310 | • BULB¤ 10/4W | 1 | SN: 10001- |
|||
| ? | 08105-12420 | • BULB¤ 25W | 2 | SN: 10001- |
|||
| ? | 01220-50450 | • SCREW | 2 | SN: 10001- |
|||
| ? | 01220-50416 | • SCREW | 2 | SN: 10001- |
|||
| ? | 01641-40405 | • WASHER | 4 | SN: 10001- |
|||
| ? | 01220-40516 | SCREW | 8 | SN: 10001- |
|||
| ? | 01601-20513 | WASHER,SPRING | 8 | SN: 10001- |
|||
| ? | 08037-03614 | GROMMET | 2 | SN: 10001- |
|||
| ? | 08036-11210 | CLIP | 4 | SN: 10001- |
|||
| ? | 01010-81020 | BOLT | 4 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 10001- |
|||
| ? | 427-06-13160 | COVER | 2 | SN: 10001- |
|||
| ? | 01220-40610 | SCREW | 16 | SN: 10001- |
|||
| ? | 01602-20619 | WASHER,SPRING | 16 | SN: 10001- |
