| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||||

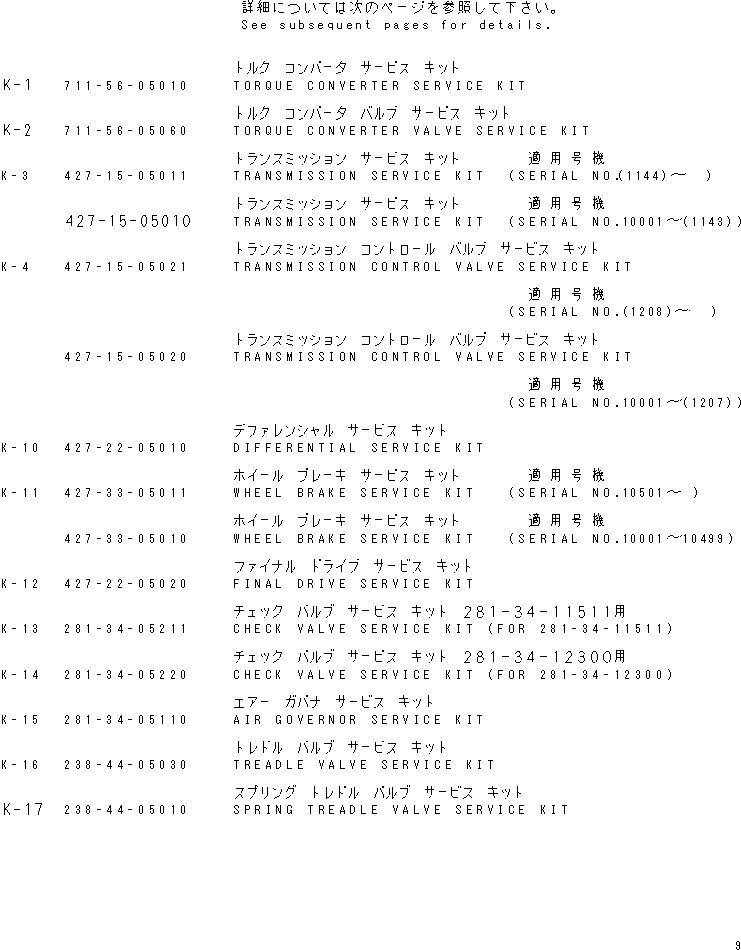

| ? | 711-56-05011 | SERVICE KIT | 1 | SN: (1045)- |
|||
| ? | 711-56-05010 | SERVICE KIT,TORQUE CONVERTER | 1 | SN: 10001-(1044) |
|||
| ? | 566-13-13341 | • O-RING | 1 | SN: (1045)- |
|||
| ? | □711-33-13340 | • O-RING | 1 | SN: 10001-(1044) |
|||
| ? | 07000-72105 | • O-RING | 4 | SN: (1285)- |
|||
| ? | 07000-62105 | • O-RING | 4 | SN: 10001-(1284) |
|||
| ? | 07000-72085 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-73028 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07005-01212 | • GASKET | 18 | SN: 10001- |
|||
| ? | 07012-10110 | • SEAL,OIL | 1 | SN: 10001- |
|||
| ? | 07000-75145 | • O-RING | 1 | SN: (1285)- |
|||
| ? | 07000-05145 | • O-RING | 1 | SN: (1045)-(1284) |
|||
| ? | 07000-65145 | • O-RING | 1 | SN: 10001-(1044) |
|||
| ? | 07000-75075 | • O-RING | 1 | SN: (1285)- |
|||
| ? | 07000-05075 | • O-RING | 1 | SN: (1045)-(1284) |
|||
| ? | 07000-65075 | • O-RING | 1 | SN: 10001-(1044) |
|||
| ? | 07018-31706 | • RING | 1 | SN: 10001- |
|||
| ? | 711-56-05060 | SERVICE KIT,TORQUE CONVERTER VALVE | 1 | SN: 10001- |
|||
| ? | 07000-73048 | • O-RING | 2 | SN: (1285)- |
|||
| ? | 07000-63048 | • O-RING | 2 | SN: 10001-(1284) |
|||
| ? | 07000-72014 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-72014 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-73045 | • O-RING | 2 | SN: 10001- |
|||
| ? | 427-15-05012 | SERVICE KIT | SN: (1387)- |
||||
| ? | 427-15-05011 | SERVICE KIT,TRANSMISSION | 1 | SN: (1144)-(1386) |
|||
| ? | 427-15-05010 | SERVICE KIT,TRANSMISSION | 1 | SN: 10001-(1143) |
|||
| ? | 07000-73030 | • O-RING | 4 | SN: 10001- |
|||
| ? | 07000-73050 | • O-RING | 4 | SN: 10001- |
|||
| ? | 07000-72065 | • O-RING | 2 | SN: 10001- |
|||
| ? | 07000-73025 | • O-RING | 6 | SN: 10001- |
|||
| ? | 07000-73035 | • O-RING | 3 | SN: 10001- |
|||
| ? | 07000-02085 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-05190 | • O-RING | 2 | SN: 10001- |
|||
| ? | 281-09-11110 | • O-RING | 1 | SN: (1387)- |
|||
| ? | □198-15-29610 | • O-RING | 1 | SN: 10001-(1386) |
|||
| ? | 281-09-11110 | • O-RING | 1 | SN: (1387)- |
|||
| ? | □198-15-29610 | • O-RING | 1 | SN: 10001-(1386) |
|||
| ? | 07000-73035 | • O-RING | 2 | SN: 10001- |
|||
| ? | 07000-02075 | • O-RING | 3 | SN: 10001- |
|||
| ? | 07000-73048 | • O-RING | 1 | SN: (1310)- |
|||
| ? | 07000-33048 | • O-RING | 1 | SN: 10001-(1309) |
|||
| ? | 07000-73028 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-73045 | • O-RING | 1 | SN: 10001- |
|||
| ? | 427-15-15930 | • GASKET | 1 | SN: 10001- |
|||
| ? | 198-15-29210 | • RING | 1 | SN: 10001- |
|||
| ? | 198-15-29220 | • RING | 1 | SN: 10001- |
|||
| ? | 427-15-19210 | • RING | 1 | SN: 10001- |
|||
| ? | 195-15-29210 | • RING | 1 | SN: 10001- |
|||
| ? | 154-15-22811 | • RING | 1 | SN: 10001- |
|||
| ? | 198-15-29210 | • RING | 1 | SN: 10001- |
|||
| ? | 195-15-29210 | • RING | 1 | SN: 10001- |
|||
| ? | 427-15-19210 | • RING | 1 | SN: 10001- |
|||
| ? | 103-15-12820 | • RING | 1 | SN: 10001- |
|||
| ? | 562-15-19210 | • RING | 1 | SN: 10001- |
|||
| ? | 124-15-41920 | • RING | 1 | SN: 10001- |
|||
| ? | (\4\232-15-19250) | • RING | 1 | SN: 10001- |
|||
| ? | 07000-05170 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-73035 | • O-RING | 3 | SN: 10001- |
|||
| ? | 07000-05310 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-05320 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-05210 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-02135 | • O-RING | 1 | SN: 10001- |
|||
| ? | 427-15-19110 | • SEAL | 1 | SN: 10001- |
|||
| ? | 07000-05410 | • O-RING | 1 | SN: 10001- |
|||
| ? | 427-15-19110 | • SEAL | 1 | SN: 10001- |
|||
| ? | 07000-05260 | • O-RING | 1 | SN: 10001- |
|||
| ? | 427-15-13520 | • SHIM¤ 0.15MM | 10 | SN: 10001- |
|||
| ? | 427-15-13510 | • SHIM¤ 0.2MM | 10 | SN: 10001- |
|||
| ? | 562-15-19970 | • O-RING | 2 | SN: 10001- |
|||
| ? | 427-15-05022 | SERVICE KIT | 1 | SN: (1310)- |
|||
| ? | 427-15-05021 | SERVICE KIT,TRANSMISSION CONTROL VALVE | 1 | SN: (1208)-(1309) |
|||
| ? | 427-15-05020 | SERVICE KIT,TRANSMISSION CONTROL VALVE | 1 | SN: 10001-(1207) |
|||
| ? | 07000-72014 | • O-RING | 2 | SN: 10001- |
|||
| ? | 07000-72021 | • O-RING | 2 | SN: 10001- |
|||
| ? | 07000-72060 | • O-RING | 2 | SN: (1310)- |
|||
| ? | 07000-02060 | • O-RING | 2 | SN: 10001-(1309) |
|||
| ? | 427-15-16470 | • SHIM¤ 0.5MM | 12 | SN: 10001- |
|||
| ? | 427-15-15910 | • O-RING | 1 | SN: 10001- |
|||
| ? | 427-15-16470 | • SHIM¤ 0.5MM | 2 | SN: 10001- |
|||
| ? | 427-15-15910 | • O-RING | 1 | SN: 10001- |
|||
| ? | 427-15-15921 | • GASKET | 1 | SN: (1208)- |
|||
| ? | □427-15-15920 | • GASKET | 1 | SN: 10001-(1207) |
|||
| ? | 07000-72060 | • O-RING | 1 | SN: (1310)- |
|||
| ? | 07000-02060 | • O-RING | 1 | SN: 10001-(1309) |
|||
| ? | 07000-73035 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-72018 | • O-RING | 5 | SN: 10001- |
|||
| ? | 07000-73028 | • O-RING | 5 | SN: 10001- |
|||
| ? | 07000-72018 | • O-RING | 1 | SN: 10001- |
|||
| ? | 195-15-35910 | • GASKET | 1 | SN: 10001- |
|||
| ? | 07002-03334 | • O-RING | 2 | SN: 10001- |
|||
| ? | 198-15-15570 | • SHIM¤ 0.50MM | 6 | SN: 10001- |
|||
| ? | 07000-73032 | • O-RING | 2 | SN: 10001- |
|||
| ? | 560-43-14330 | • SHIM¤ 0.5MM | 5 | SN: (1310)- |
|||
| ? | 560-43-14330 | • SHIM¤ 0.5MM | 4 | SN: 10001-(1309) |
|||
| ? | 203-57-21320 | • SHIM¤ 0.5MM | 4 | SN: 10001- |
|||
| ? | 195-15-15910 | • SHIM¤ 0.5MM | 4 | SN: 10001- |
|||
| ? | 07000-73045 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-73040 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-72021 | • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-73030 | • O-RING | 1 | SN: 10001- |
|||
| ? | 195-15-35920 | • GASKET | 1 | SN: 10001- |
|||
| ? | 424-15-17230 | • GASKET | 1 | SN: (1174)- |
|||
| ? | 22W-06-15690 | • GASKET | 1 | SN: (1101)-(1173) |
|||
| ? | 568-15-15880 | • GASKET | 1 | SN: 10001-(1100) |
|||
| ? | 195-15-37140 | • GASKET | 1 | SN: 10001- |
|||
| ? | 07000-71009 | • O-RING | 5 | SN: 10001- |
|||
| ? | 427-22-05010 | SERVICE KIT,DIFFERENTIAL | 2 | SN: 10001- |
|||
| ? | 07000-15320 | • O-RING,CAGE | 1 | SN: 10001- |
|||
| ? | 07000-15260 | • O-RING,CAGE | 1 | SN: 10001- |
|||
| ? | 07012-10150 | • SEAL,CAGE | 1 | SN: 10001- |
|||
| ? | 562-15-19970 | • O-RING,COUPLING | 1 | SN: 10001- |
|||
| ? | 562-22-12920 | • O-RING,CARRIER | 1 | SN: 10001- |
|||
| ? | 427-33-05011 | SERVICE KIT,WHEEL BRAKE | 4 | SN: 10501- |
|||
| ? | 427-33-05010 | SERVICE KIT,WHEEL BRAKE | 4 | SN: 10001-10499 |
|||
| ? | 569-33-41951 | • SEAL,CYLINDER | 1 | SN: 10501- |
|||
| ? | 569-33-41950 | • SEAL,CYLINDER | 1 | SN: 10001-10499 |
|||
| ? | 568-33-11531 | • PACKING,PISTON | 1 | SN: 10501- |
|||
| ? | 568-33-11530 | • PACKING,PISTON | 1 | SN: 10001-10499 |
|||
| ? | 07000-13038 | • O-RING,GUIDE | 5 | SN: 10001- |
|||
| ? | 07002-21823 | • O-RING,PLUG | 2 | SN: 10001- |
|||
| ? | 07000-F3025 | • O-RING,CYLINDER | 2 | SN: 10001- |
|||
| ? | 07002-12434 | • O-RING,PLUG | 1 | SN: 10001- |
|||
| ? | 07000-15470 | • O-RING,CYLINDER | 1 | SN: 10001- |
|||
| ? | 568-33-11430 | • O-RING,CYLINDER | 1 | SN: 10001- |
|||
| ? | 07002-11823 | • O-RING,PLUG | 2 | SN: 10001- |
|||
| ? | 568-33-11511 | • SEAL,HUB | 1 | SN: 10050- |
|||
| ? | □568-33-11510 | • SEAL,HUB | 1 | SN: 10001-10049 |
|||
| ? | 568-33-11430 | • O-RING,HUB | 1 | SN: 10001- |
|||
| ? | 56A-46-13480 | • O-RING,GEAR | 1 | SN: 10001- |
|||
| ? | 568-22-12810 | • O-RING,GEAR | 1 | SN: 10001- |
|||
| ? | 427-22-05020 | SERVICE KIT,FINAL DRIVE | 2 | SN: 10001- |
|||
| ? | 562-22-12920 | • O-RING,CARRIER | 2 | SN: 10001- |
|||
| ? | 07000-13028 | • O-RING,CARRIER | 2 | SN: 10001- |
|||
| ? | 07002-12434 | • O-RING,PLUG | 2 | SN: 10001- |
|||
| ? | 07002-13634 | • O-RING,PLUG | 4 | SN: 10001- |
|||
| ? | 281-09-11110 | • O-RING,COVER | 2 | SN: 10001- |
|||
| ? | 281-34-05211 | SERVICE KIT,CHECK VALVE (FOR 281-34-11511) | 3 | SN: 10001-10499 |
|||
| ? | 281-34-11540 | • SEAT | 1 | SN: 10001-10499 |
|||
| ? | 281-34-11550 | • VALVE | 1 | SN: 10001-10499 |
|||
| ? | 281-34-11561 | • SPRING | 1 | SN: 10001-10499 |
|||
| ? | 281-34-05220 | SERVICE KIT,CHECK VALVE (FOR 281-34-12300) | 2 | SN: 10001- |
|||
| ? | 281-34-12310 | • SHUTTLE | 1 | SN: 10001- |
|||
| ? | 281-34-12320 | • GASKET | 1 | SN: 10001- |
|||
| ? | 281-34-05110 | SERVICE KIT,AIR GOVERNOR | 1 | SN: 10001- |
|||
| ? | 565-44-16120 | • FILTER | 2 | SN: 10001- |
|||
| ? | ☆ | • O-RING,PISTON | 1 | SN: 10001- |
|||
| ? | ☆ | • VALVE,PRESSURE REGULATOR | 1 | SN: 10001- |
|||
| ? | ☆ | • SPRING,VALVE | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,PISTON | 2 | SN: 10001- |
|||
| ? | 565-44-16240 | • COVER | 1 | SN: 10001- |
|||
| ? | 238-44-05030 | SERVICE KIT,TREADLE VALVE | 1 | SN: 10001- |
|||
| ? | ☆ | • VALVE,UPPER | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,RETAINER | 1 | SN: 10001- |
|||
| ? | ☆ | • RING,RETAINING | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,RETAINER | 1 | SN: 10001- |
|||
| ? | ☆ | • RING,SNAP | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,PISTON RELAY | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,PISTON RELAY | 1 | SN: 10001- |
|||
| ? | ☆ | • SPRING,RUBBER | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,PISTON UPPER | 1 | SN: 10001- |
|||
| ? | ☆ | • VALVE,LOWER | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,RETAINER | 1 | SN: 10001- |
|||
| ? | ☆ | • RING,RETAINING | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,RETAINING | 1 | SN: 10001- |
|||
| ? | ☆ | • VALVE,EXHAUST | 1 | SN: 10001- |
|||
| ? | ☆ | • O-RING,BODY | 1 | SN: 10001- |
|||
| ? | 238-44-05010 | SERVICE KIT,TREADLE VALVE¤ SPRING | 1 | SN: 10001- |
|||
| ? | ☆ | • SPRING,VALVE¤ UPPER | 1 | SN: 10001- |
|||
| ? | 238-44-12220 | • SPRING,PISTON RELAY | 1 | SN: 10001- |
|||
| ? | 238-44-12260 | • SPRING,PISTON UPPER | 1 | SN: 10001- |
|||
| ? | 238-44-12280 | • SPRING,INNER | 1 | SN: 10001- |
|||
| ? | 238-44-12290 | • SPRING,OUTER | 1 | SN: 10001- |
|||
| ? | 238-44-12410 | • SPRING,RETAINING | 1 | SN: 10001-10499 |
