| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (709-12-11804) | VALVE ASS'Y,(FOR JAPAN) | 1 | SN: 10660- |
|||
| ? | (709-12-11803) | VALVE ASS'Y,(FOR JAPAN) | 1 | SN: .-10659 |
|||
| ? | (709-12-11802) | VALVE ASS'Y,(FOR JAPAN) | 1 | SN: 10501-. |
|||
| ? | (☒709-12-11801) | VALVE ASS'Y,(FOR JAPAN) | 1 | SN: (10539-10555) |
|||
| ? | (☒709-12-11800) | VALVE ASS'Y,(FOR JAPAN) | 1 | SN: (10501-10538) |
|||
| ? | (709-12-11804) | VALVE ASS'Y,(EXCEPT JAPAN) | 1 | SN: 10660- |
|||
| ? | (709-12-11803) | VALVE ASS'Y,(EXCEPT JAPAN) | 1 | SN: .-10659 |
|||
| ? | (709-12-11802) | VALVE ASS'Y,(EXCEPT JAPAN) | 1 | SN: 10501-. |
|||
| ? | (☒709-12-11801) | VALVE ASS'Y,(EXCEPT JAPAN) | 1 | SN: (10541-10554) |
|||
| ? | (☒709-12-11800) | VALVE ASS'Y,(EXCEPT JAPAN) | 1 | SN: (10501-10540) |
|||

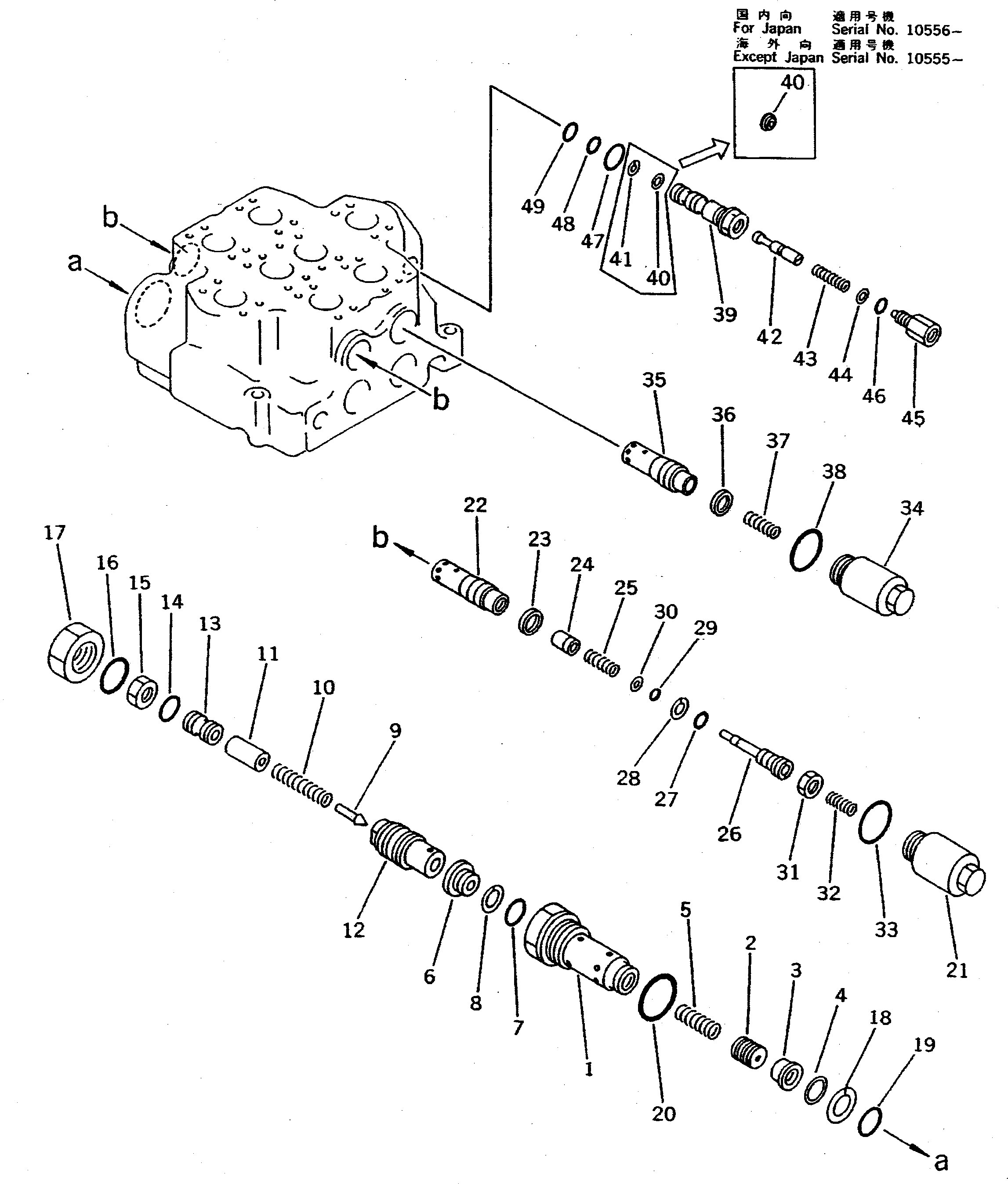

| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201A AND 6202A. | ||||||
| ? | 709-10-52903 | • VALVE ASS'Y,RELIEF | 1 | SN: 10660- |
|||
| ? | 709-10-52902 | • VALVE ASS'Y,RELIEF | 1 | SN: ..-10659 |
|||
| ? | 709-10-52901 | • VALVE ASS'Y,RELIEF | 1 | SN: .-.. |
|||
| ? | 709-10-52900 | • VALVE ASS'Y,RELIEF | 1 | SN: 10001-. |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 10660- |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: .-10659 |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 10001-. |
|||
| ? | ☆ | • • VALVE | 1 | SN: 10660- |
|||
| ? | ☆ | • • VALVE | 1 | SN: .-10659 |
|||
| ? | ☆ | • • VALVE | 1 | SN: 10001-. |
|||
| ? | ☆ | • • RETAINER | 1 | SN: 10001- |
|||
| ? | ☆ | • • RING,SNAP | 1 | SN: 10660- |
|||
| ? | ☆ | • • RING,SNAP | 1 | SN: 10001-10659 |
|||
| ? | ☆ | • • SPRING | 1 | SN: 10001- |
|||
| ? | ☆ | • • SEAT | 1 | SN: 10001- |
|||
| ? | ☆ | • • O-RING | 1 | SN: 10001- |
|||
| ? | ☆ | • • RING,BACK-UP | 1 | SN: 10001- |
|||
| ? | ☆ | • • POPPET | 1 | SN: 10001- |
|||
| ? | ☆ | • • SPRING | 1 | SN: 10055- |
|||
| ? | ☆ | • • RETAINER | 1 | SN: 10055- |
|||
| ? | ☆ | • • HOLDER | 1 | SN: 10055- |
|||
| ? | ☆ | • • SCREW | 1 | SN: 10660- |
|||
| ? | ☆ | • • SCREW | 1 | SN: 10055-10659 |
|||
| ? | ☆ | • • O-RING | 1 | SN: 10055- |
|||
| ? | ☆ | • • NUT | 1 | SN: 10001- |
|||
| ? | ☆ | • • O-RING | 1 | SN: 10001- |
|||
| ? | ☆ | • • NUT | 1 | SN: 10001- |
|||
| ? | 07001-03032 | • • RING,BACK-UP | 1 | SN: 10001- |
|||
| ? | 07000-13032 | • • O-RING | 1 | SN: 10001- |
|||
| ? | 07002-05234 | • • O-RING | 1 | SN: 10001- |
|||
| ? | 709-10-62201 | • VALVE ASS'Y,SUCTION AND SAFETY | 2 | SN: 10001- |
|||
| ? | ☆ | • • SLEEVE | 1 | SN: 10001- |
|||
| ? | ☆ | • • VALVE | 1 | SN: .- |
|||
| ? | ☆ | • • SEAL | 1 | SN: 10001- |
|||
| ? | ☆ | • • POPPET | 1 | SN: 10001- |
|||
| ? | ☆ | • • SPRING | 1 | SN: .- |
|||
| ? | ☆ | • • PISTON | 1 | SN: 10001- |
|||
| ? | ☆ | • • O-RING | 1 | SN: 10001- |
|||
| ? | ☆ | • • RING,BACK-UP | 1 | SN: 10001- |
|||
| ? | ☆ | • • O-RING | 1 | SN: 10001- |
|||
| ? | ☆ | • • SEAL | 1 | SN: 10001- |
|||
| ? | ☆ | • • NUT | 1 | SN: 10001- |
|||
| ? | ☆ | • • SPRING | 1 | SN: 10001- |
|||
| ? | 07002-03634 | • • O-RING | 1 | SN: 10001- |
|||
| ? | 700-90-74001 | • VALVE ASS'Y,SUCTION | 1 | SN: 10001- |
|||
| ? | 700-90-61211 | • • SLEEVE | 1 | SN: 10001- |
|||
| ? | ☆ | • • VALVE | 1 | SN: 10001- |
|||
| ? | ☆ | • • SEAL | 1 | SN: 10001- |
|||
| ? | 700-90-61170 | • • SPRING | 1 | SN: 10001- |
|||
| ? | 07002-03634 | • • O-RING | 1 | SN: 10001- |
|||
| ? | 709-10-68401 | • VALVE ASS'Y,FLOAT SELECTOR (FOR JAPAN) | 1 | SN: 10501- |
|||
| ? | (☒709-10-68400) | • VALVE ASS'Y,FLOAT SELECTOR (FOR JAPAN) | 1 | SN: (10501-10555) |
|||
| ? | 709-10-68401 | • VALVE ASS'Y,FLOAT SELECTOR (EXCEPT JAPAN) | 1 | SN: 10501- |
|||
| ? | (☒709-10-68400) | • VALVE ASS'Y,FLOAT SELECTOR (EXCEPT JAPAN) | 1 | SN: (10501-10554) |
|||
| ? | ☆ | • • SLEEVE,(FOR JAPAN) | 1 | SN: 10556- |
|||
| ? | ☆ | • • SLEEVE,(FOR JAPAN) | 1 | SN: 10501-10555 |
|||
| ? | ☆ | • • SLEEVE,(EXCEPT JAPAN) | 1 | SN: 10555- |
|||
| ? | ☆ | • • SLEEVE,(EXCEPT JAPAN) | 1 | SN: 10501-10554 |
|||
| ? | 709-10-68121 | • • SEAT,(FOR JAPAN) | 1 | SN: 10001- |
|||
| ? | (☒709-10-68120) | • • SEAT,(FOR JAPAN) | 1 | SN: (10001-10555) |
|||
| ? | 709-10-68121 | • • SEAT,(EXCEPT JAPAN) | 1 | SN: 10001- |
|||
| ? | (☒709-10-68120) | • • SEAT,(EXCEPT JAPAN) | 1 | SN: (10001-10554) |
|||
| ? | (☒700-20-51240) | • • RING,(FOR JAPAN) | 1 | SN: (10001-10555) |
|||
| ? | (☒700-20-51240) | • • RING,(EXCEPT JAPAN) | 1 | SN: (10001-10554) |
|||
| ? | ☆ | • • PISTON | 1 | SN: 10001- |
|||
| ? | 709-12-12520 | • • SPRING | 1 | SN: 10501- |
|||
| ? | 709-10-68180 | • • SHIM¤ 0.2MM | 1 | SN: 10001- |
|||
| ? | 709-10-68170 | • • NIPPLE | 1 | SN: 10001- |
|||
| ? | 07000-02011 | • • O-RING | 1 | SN: 10001- |
|||
| ? | 07002-12434 | • • O-RING | 1 | SN: 10001- |
|||
| ? | 07000-12016 | • • O-RING | 1 | SN: 10001- |
|||
| ? | 700-22-11410 | • • O-RING | 1 | SN: 10001- |
