| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

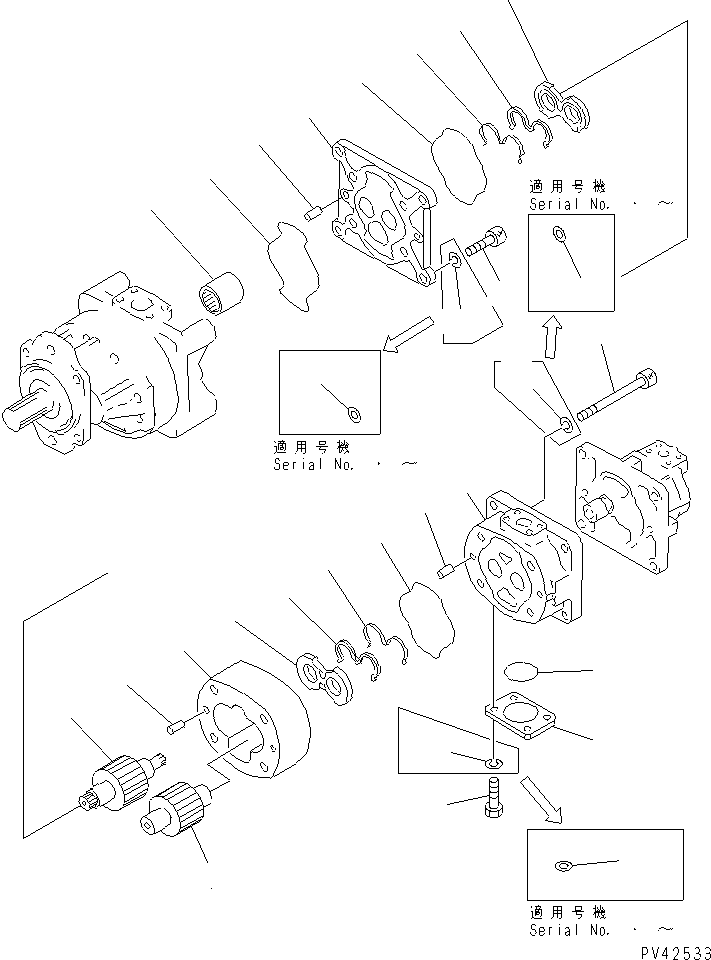

| ? | (705-58-43030) | PUMP ASS'Y | 1 | SN: 10528- |
|||
| ? | ♦705-58-43010 | PUMP ASS'Y,(SAR4-112+3-100+1-32) | 1 | SN: 10001-10527 |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6041 TO 6043. | ||||||
| ? | 705-32-40330 | • PUMP ASS'Y,(SAR100) | 1 | SN: 10001- |
|||
| ? | (★705-19-03521) | • • BRACKET | 1 | SN: 10001- |
|||
| ? | (☒705-19-03520) | • • BRACKET | 1 | SN: (10001-.) |
|||
| ? | (★705-17-03352) | • • • BUSHING | 2 | SN: 10001- |
|||
| ? | (★705-17-40010) | • • CASE,GEAR | 1 | SN: 10001- |
|||
| ? | (★705-17-03220) | • • CARRIER | 1 | SN: 10001- |
|||
| ? | (★705-17-03352) | • • • BUSHING | 2 | SN: 10001- |
|||
| ? | (★04020-01228) | • • PIN,DOWEL | 6 | SN: 10001- |
|||
| ? | (★705-17-03380) | • • O-RING | 2 | SN: 10001- |
|||
| ? | (★705-19-40460) | • • GEAR,DRIVE | 1 | SN: 10001- |
|||
| ? | (★705-17-40510) | • • GEAR,DRIVEN | 1 | SN: 10001- |
|||
| ? | (★705-17-03610) | • • PLATE,SIDE | 2 | SN: 10001- |
|||
| ? | (★705-17-03440) | • • RING,BACK-UP | 2 | SN: 10001- |
|||
| ? | (★705-17-03470) | • • SEAL | 2 | SN: 10001- |
|||
| ? | (★705-17-03770) | • • BOLT | 4 | SN: 10001- |
|||
| ? | (★01643-51645) | • • WASHER | 4 | SN: .- |
|||
| ? | □01602-21648 | • • WASHER,SPRING | 4 | SN: 10001-. |
|||
| ? | 705-17-03330 | • COUPLING | 1 | SN: 10001- |
|||
| ? | 705-19-03480 | • O-RING | 1 | SN: 10001- |
|||
| ? | 705-19-03470 | • BOLT | 4 | SN: 10001- |
|||
| ? | 705-17-04980 | • WASHER | 4 | SN: .- |
|||
| ? | □01602-21442 | • WASHER,SPRING | 4 | SN: 10001-. |
|||
| ? | 705-17-03880 | • PLATE | 1 | SN: 10001- |
|||
| ? | 07000-02055 | • O-RING | 1 | SN: 10001- |
|||
| ? | 01010-51230 | • BOLT | 4 | SN: 10001- |
|||
| ? | 01643-51232 | • WASHER | 4 | SN: .- |
|||
| ? | □01602-21236 | • WASHER,SPRING | 4 | SN: 10001-. |
