| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | SERIALNO: |
|||||
| ? | (427-15-11004) | TRANSMISSION ASS'Y | 1 | SN: 50029- KIT-FLAG: _- SERIALNO: 50029- |
|||
| ? | (427-15-11003) | TRANSMISSION ASS'Y | 1 | SN: 50002-50028 KIT-FLAG: _- SERIALNO: 50002-50028 |
|||
| ? | (427-15-00013) | TRANSMISSION ASS'Y | 1 | SN: 50001-50001 KIT-FLAG: _- SERIALNO: 50001-50001 |
|||

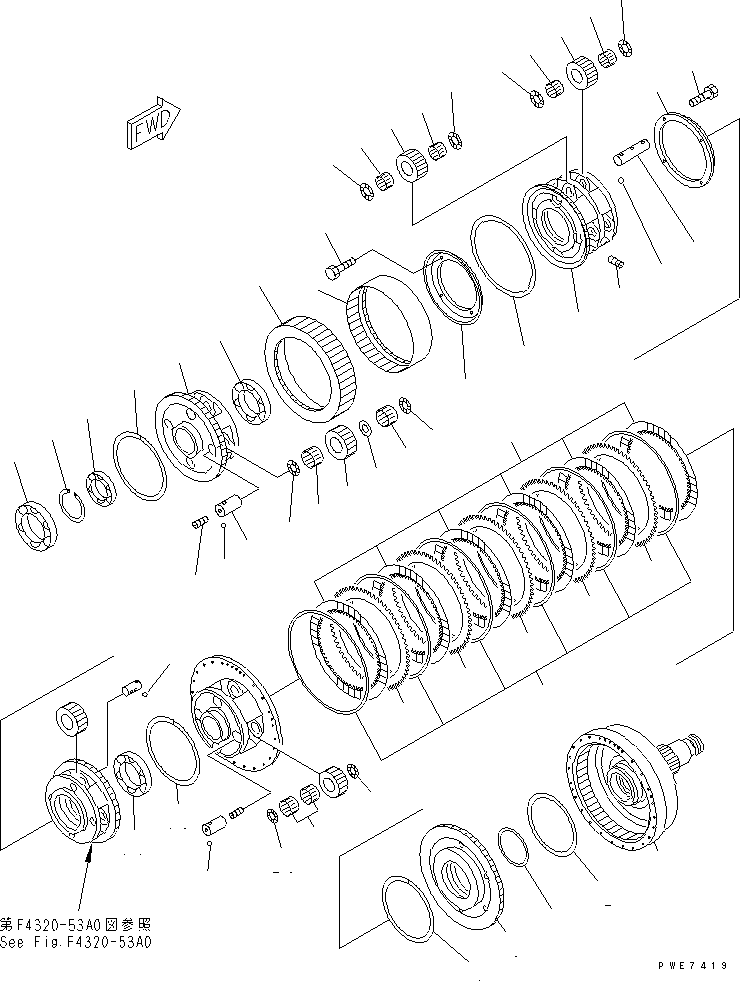

| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-65A0. | SERIALNO: |
|||||
| ? | 427-15-12134 | • SHAFT | 1 | SN: 50029- KIT-FLAG: _- SERIALNO: 50029- |
|||
| ? | 427-15-12132 | • SHAFT | 1 | SN: 50001-50028 KIT-FLAG: _- SERIALNO: 50001-50028 |
|||
| ? | 103-15-12820 | • RING,SEAL (K3) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-12750 | • PISTON,3RD | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 124-15-41920 | • RING,SEAL (K3) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 415-15-12750 | • RING,SEAL (K3) | 1 | SN: 50002- KIT-FLAG: _- SERIALNO: 50002- |
|||
| ? | 562-15-19210 | • RING,SEAL (K3) | 1 | SN: 50001-50001 KIT-FLAG: _- SERIALNO: 50001-50001 |
|||
| ? | 198-15-22810 | • DISC | 6 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-12730 | • PLATE | 5 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-19810 | • SPRING,WAVE | 6 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 562-15-12580 | • COLLAR | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-12312 | • CARRIER | 1 | SN: 50029- KIT-FLAG: _- SERIALNO: 50029- |
|||
| ? | 427-15-12311 | • CARRIER | 1 | SN: 50001-50028 KIT-FLAG: _- SERIALNO: 50001-50028 |
|||
| ? | 06030-06934 | • BEARING | 1 | SN: (1038)- KIT-FLAG: _- SERIALNO: (1038)- |
|||
| ? | 06000-06934 | • BEARING | 1 | SN: (1014)-(1037) KIT-FLAG: _- SERIALNO: (1014)-(1037) |
|||
| ? | 582-15-19470 | • BEARING | 1 | SN: 50002-(1013) KIT-FLAG: _- SERIALNO: 50002-(1013) |
|||
| ? | 06000-06934 | • BEARING | 1 | SN: 50001-50001 KIT-FLAG: _- SERIALNO: 50001-50001 |
|||
| ? | 06030-06216 | • BEARING | 1 | SN: 50029- KIT-FLAG: _- SERIALNO: 50029- |
|||
| ? | 06000-06216 | • BEARING | 1 | SN: 50001-50028 KIT-FLAG: _- SERIALNO: 50001-50028 |
|||
| ? | 04077-00140 | • RING,SNAP | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 06030-06926 | • BEARING | 2 | SN: 50029- KIT-FLAG: _- SERIALNO: 50029- |
|||
| ? | 06000-06926 | • BEARING | 2 | SN: 50001-50028 KIT-FLAG: _- SERIALNO: 50001-50028 |
|||
| ? | 427-15-12660 | • GEAR | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-19520 | • RING,SNAP | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-00120 | • SHAFT ASS'Y | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | ☆ | • • SHAFT | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 568-15-11380 | • • PLUG | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 198-15-22571 | • THRUST WASHER | 8 | SN: 50002- KIT-FLAG: _- SERIALNO: 50002- |
|||
| ? | 427-15-12410 | • GEAR | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-00132 | • CARRIER ASS'Y | 1 | SN: 50029- KIT-FLAG: _- SERIALNO: 50029- |
|||
| ? | 427-15-00131 | • CARRIER ASS'Y | 1 | SN: (1038)-00050028 KIT-FLAG: _- SERIALNO: (1038)-00050028 |
|||
| ? | 427-15-00130 | • CARRIER ASS'Y | 1 | SN: 50001-(1037) KIT-FLAG: _- SERIALNO: 50001-(1037) |
|||
| ? | ☆ | • • CARRIER | 1 | SN: 50029- KIT-FLAG: _- SERIALNO: 50029- |
|||
| ? | ☆ | • • CARRIER | 1 | SN: (1038)-00050028 KIT-FLAG: _- SERIALNO: (1038)-00050028 |
|||
| ? | ☆ | • • CARRIER | 1 | SN: 50001-(1037) KIT-FLAG: _- SERIALNO: 50001-(1037) |
|||
| ? | 568-15-11380 | • • PLUG | 8 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-12651 | • GEAR,RING | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 198-15-29520 | • RING | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-12520 | • SHAFT | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-19320 | • BEARING | 32 | SN: 50002- KIT-FLAG: _- SERIALNO: 50002- |
|||
| ? | 582-15-19720 | • BEARING | 32 | SN: 50001-50001 KIT-FLAG: _- SERIALNO: 50001-50001 |
|||
| ? | 427-15-12420 | • GEAR | 8 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 198-15-22571 | • THRUST WASHER | 24 | SN: 50002- KIT-FLAG: _- SERIALNO: 50002- |
|||
| ? | 427-15-12560 | • WASHER,THRUST | 32 | SN: 50001-50001 KIT-FLAG: _- SERIALNO: 50001-50001 |
|||
| ? | 04260-00635 | • BALL | 16 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-12360 | • COVER | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-15-12370 | • COVER | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 01252-31035 | • BOLT | 8 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
