| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

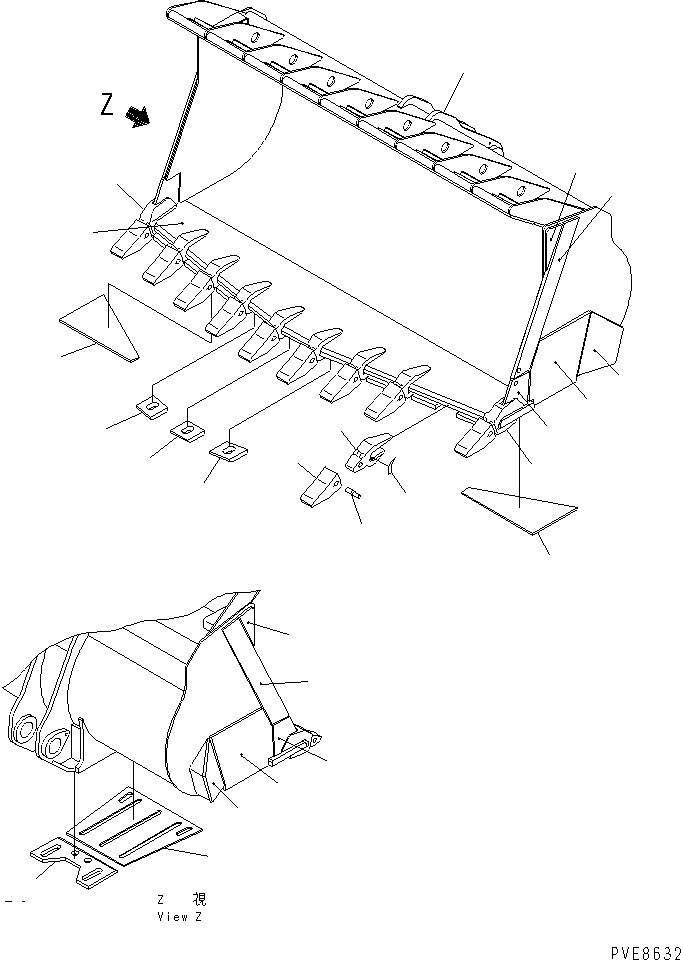

| ? | 13.0M3 BUCKET | SERIALNO: |
|||||
| ? | 427-818-2101 | BUCKET ASS'Y | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-70-13941 | • TOOTH | 10 | SN: 50001-50033 KIT-FLAG: _- SERIALNO: 50001-50033 |
|||
| ? | 427-70-13890 | • PIN | 10 | SN: 50001-50033 KIT-FLAG: _- SERIALNO: 50001-50033 |
|||
| ? | □427-818-2112 | • BUCKET,(WITH ADAPTER TOOTH) | 1 | SN: 50017- KIT-FLAG: _- SERIALNO: 50017- |
|||
| ? | 427-818-2111 | • BUCKET,(WITH ADAPTER TOOTH) | 1 | SN: 50001-50016 KIT-FLAG: _- SERIALNO: 50001-50016 |
|||
| ? | 427-70-13921 | • • ADAPTER,L.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-70-13931 | • • ADAPTER,R.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-70-13911 | • • ADAPTER (WELDED) | 8 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1270 | • • PLATE,L.H. (WELDED) | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1280 | • • PLATE,R.H. (WELDED) | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1290 | • • PLATE (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-70-13961 | • • PLATE (WELDED) | 8 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-2211 | • • BUCKET (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-70-13951 | • • • EDGE (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1240 | • • • PLATE (WELDED) | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1250 | • • • PLATE (WELDED) | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1261 | • • • PLATE,L.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1360 | • • • PLATE,R.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1371 | • • • PLATE,L.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-1381 | • • • PLATE,R.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-2220 | • • • PLATE,L.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-818-2230 | • • • PLATE,R.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-819-1250 | • • • PLATE (WELDED) | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-819-1270 | • • • GUARD (WELDED) | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-821-1281 | • • • PLATE,L.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 427-821-1291 | • • • PLATE,R.H. (WELDED) | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
