| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

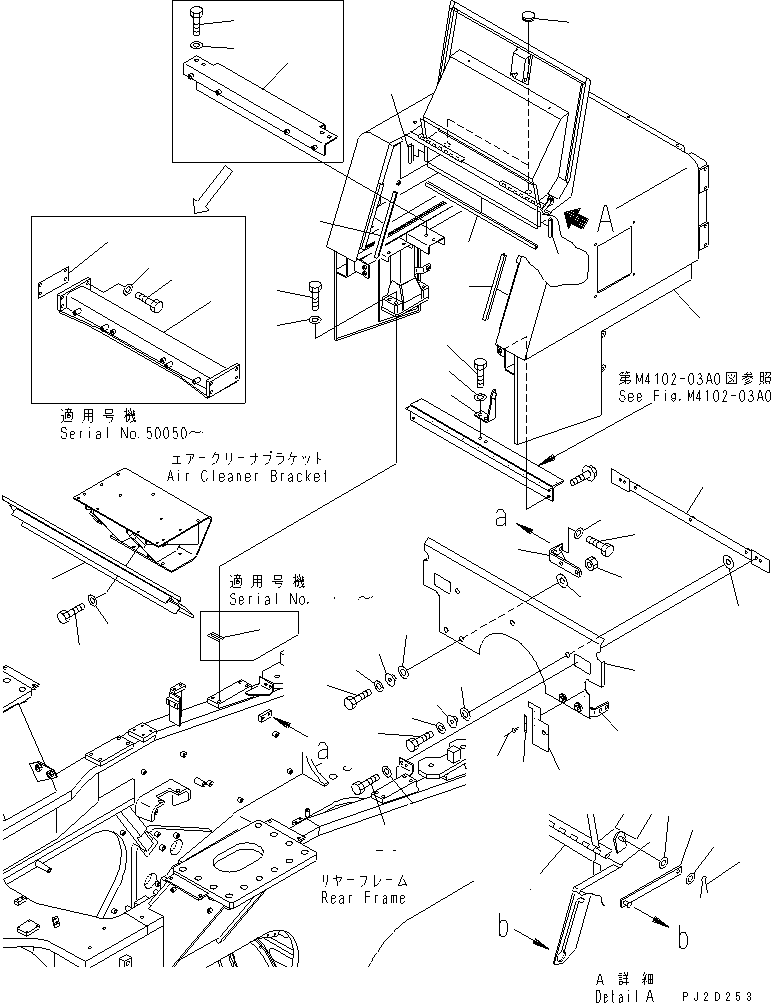

| ? | 428-54-21115 | BULKHEAD | 1 | SN: 50050-51000 |
|||
| ? | 428-54-21114 | BULKHEAD | 1 | SN: 50017-50049 |
|||
| ? | 426-54-11961 | • LOCK (WELDED) | 1 | SN: 50001-@ |
|||
| ? | 01010-81690 | BOLT | 8 | SN: 50001-@ |
|||
| ? | 01643-31645 | WASHER | 8 | SN: 50001-@ |
|||
| ? | 427-09-11210 | SHIM¤ 0.5MM | 24 | SN: .-@ |
|||
| ? | 428-54-21790 | BRACKET | 1 | SN: 50050-51000 |
|||
| ? | 428-54-21251 | BRACKET | 1 | SN: 50001-50049 |
|||
| ? | 428-54-21780 | SHIM¤ 1.0MM | 6 | SN: 50050-51000 |
|||
| ? | 01010-81240 | BOLT | 8 | SN: 50050-51000 |
|||
| ? | 01435-01220 | BOLT | 4 | SN: 50001-50049 |
|||
| ? | 01643-31232 | WASHER | 8 | SN: 50050-@ |
|||
| ? | 428-54-21420 | BAR | 1 | SN: 50002-@ |
|||
| ? | 01640-20816 | WASHER | 2 | SN: 50001-@ |
|||
| ? | 04052-10833 | PIN,SNAP | 1 | SN: 50001-@ |
|||
| ? | 428-54-11620 | SUPPORT | 1 | SN: 50001-@ |
|||
| ? | 01010-81235 | BOLT | 2 | SN: 50025-@ |
|||
| ? | 01643-31232 | WASHER | 2 | SN: 50025-@ |
|||
| ? | 09415-02512 | CAP | 2 | SN: 50001-@ |
|||
| ? | 427-54-11650 | SEAL,DOOR | 2 | SN: 50001-@ |
|||
| ? | 428-54-11630 | SEAL,DOOR | 2 | SN: 50001-@ |
|||
| ? | 428-54-11640 | SEAL,DOOR | 1 | SN: 50001-@ |
|||
| ? | 428-54-21311 | PLATE | 1 | SN: 50001-@ |
|||
| ? | 01010-81230 | BOLT | 4 | SN: 50025-@ |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 50025-@ |
|||
| ? | 428-54-21320 | ANGLE | 1 | SN: 50001-@ |
|||
| ? | 01010-81230 | BOLT | 4 | SN: 50025-@ |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 50025-@ |
|||
| ? | 428-54-21332 | PLATE | 1 | SN: 50001-@ |
|||
| ? | 427-54-11841 | BRACKET | 2 | SN: 50001-@ |
|||
| ? | 01010-81230 | BOLT | 4 | SN: 50025-@ |
|||
| ? | 01643-31232 | WASHER | 4 | SN: 50025-@ |
|||
| ? | 01010-81240 | BOLT | 7 | SN: 50025-@ |
|||
| ? | 01643-31232 | WASHER | 7 | SN: 50001-@ |
|||
| ? | 01580-11210 | NUT | 4 | SN: 50001-@ |
|||
| ? | 415-46-11370 | SPACER | 7 | SN: 50001-@ |
|||
| ? | 415-46-11380 | CUSHION | 7 | SN: 50001-@ |
|||
| ? | 01640-22440 | WASHER | 7 | SN: 50001-@ |
|||
| ? | 428-54-13460 | RUBBER | 1 | SN: 50001-@ |
|||
| ? | 427-54-13890 | PLATE | 1 | SN: 50001-@ |
|||
| ? | 362-56-41740 | RIVET | 3 | SN: 50001-@ |
