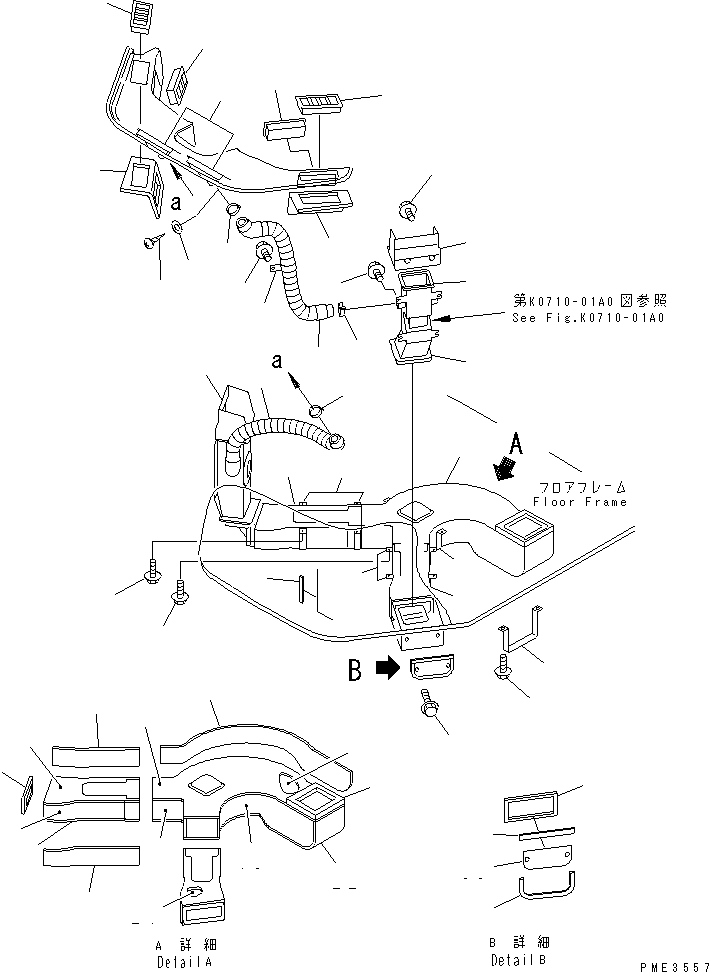

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 421-07-23650 | CLAMP,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23660 | CLAMP,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 01435-01016 | BOLT,SEE FIG. K4010-18A0 | 6 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23751 | SHEET | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 01435-01016 | BOLT,SEE FIG. K4010-18A0 | 6 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 01435-01016 | BOLT,SEE FIG. K4010-18A0 | 4 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23870 | GRILLE | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23880 | SHEET,L.H. | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23890 | SHEET,R.H. | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23910 | HOSE,DEFROSTER | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 07281-00489 | CLAMP | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23990 | NOZZLE | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 01370-00412 | SCREW | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 01611-04045 | WASHER | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 21K-62-21660 | CLIP | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 01435-01025 | BOLT | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23600 | DUCT ASS'Y,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23610 | • DUCT,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23110 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23120 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23130 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23140 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23150 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23771 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23620 | DUCT ASS'Y,SEE FIG. K4010-18A0 | 2 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23640 | • DUCT,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23160 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23170 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23180 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23190 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 423-07-23211 | • SHEET,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23710 | COVER ASS'Y,SEE FIG. K4010-18A0 | 2 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23740 | • COVER,SEE FIG. K4010-18A0 | 1 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23720 | • FINISHER,SEE FIG. K4010-18A0 | 2 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23730 | • FINISHER,SEE FIG. K4010-18A0 | 2 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23670 | CLAMP,SEE FIG. K4010-18A0 | 2 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23680 | CLAMP,SEE FIG. K4010-18A0 | 2 | SN: 50001-51000 KIT-FLAG: _- SERIALNO: 50001-51000 |
|||
| ? | 421-07-23810 | SHEET | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23820 | SHEET | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23830 | DUCT,L.H. | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-07-23840 | DUCT,R.H. | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 01435-00612 | BOLT | 4 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 01435-00616 | BOLT | 8 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 421-54-22960 | PROTECTOR | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
