| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (714-17-10041) | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING) | 1 | SN: 64001- |
|||
| ? | (714-17-10040) | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING) | 1 | SN: 63001-64000 |
|||
| ? | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-69A1. | ||||||
| ? | (714-07-15012) | • VALVE ASS'Y,TRANSMISSION | 1 | SN: (101333)- |
|||
| ? | (714-07-15011) | • VALVE ASS'Y,TRANSMISSION | 1 | SN: 63001-(101332) |
|||
| ? | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A1 TO F4350-63A1A. | ||||||

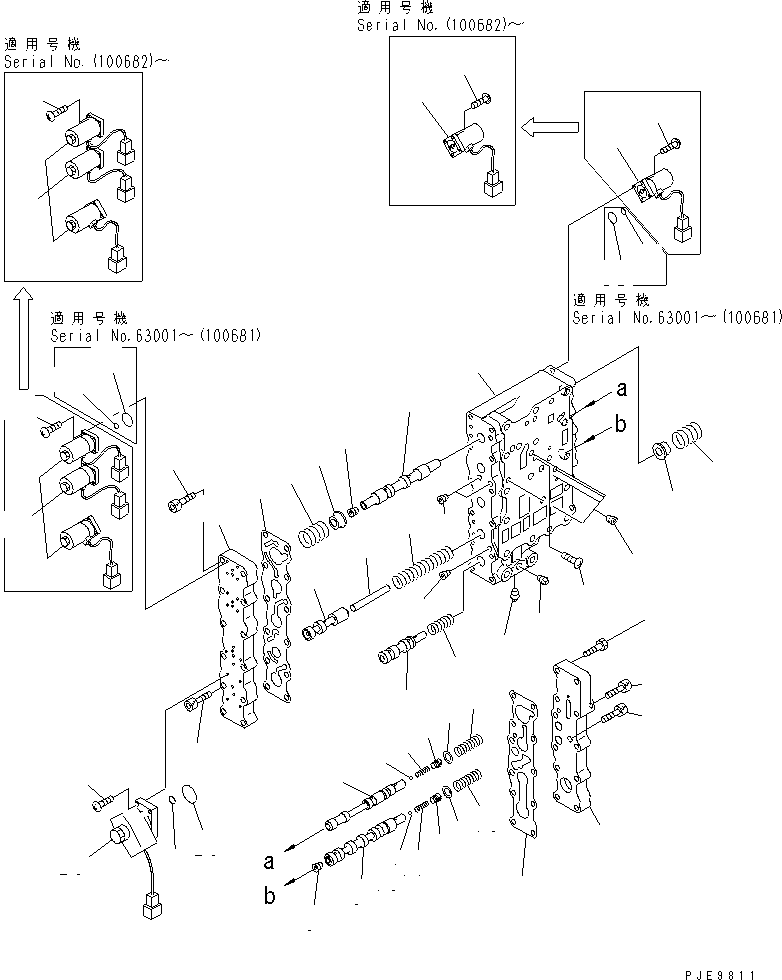

| ? | 714-07-16100 | • • VALVE ASS'Y,LOWER | 1 | SN: 63001- |
|||
| ? | 714-07-16110 | • • • BODY,LOWER VALVE | 1 | SN: 63001- |
|||
| ? | 714-07-16250 | • • • VALVE,PRIORITY | 1 | SN: 63001- |
|||
| ? | 714-07-16510 | • • • VALVE,F-R | 1 | SN: 63001- |
|||
| ? | 714-07-16520 | • • • VALVE,H-L | 1 | SN: 63001- |
|||
| ? | 714-07-16331 | • • • VALVE,SPEED | 1 | SN: 63001- |
|||
| ? | 714-07-16340 | • • • VALVE,BRAKE | 1 | SN: 63001- |
|||
| ? | 714-07-16620 | • • • SLEEVE | 2 | SN: 63001- |
|||
| ? | 02720-10104 | • • • PLUG | 6 | SN: 63001- |
|||
| ? | 714-07-16570 | • • • PLUG | 2 | SN: 63001- |
|||
| ? | 04260-00635 | • • • BALL,CHECK VALVE | 2 | SN: 63001- |
|||
| ? | 714-07-16590 | • • • SPRING,CHECK VALVE | 2 | SN: 63001- |
|||
| ? | 419-15-16631 | • • • SPACER | 2 | SN: 63001- |
|||
| ? | 714-07-16260 | • • • SPRING,PRIORITY VALVE | 1 | SN: 63001- |
|||
| ? | 714-07-16370 | • • • SPRING,F-R VALVE | 2 | SN: 63001- |
|||
| ? | 419-15-16620 | • • • SPRING,H-L AND SPEED VALVE | 2 | SN: 63001- |
|||
| ? | 714-07-16380 | • • • SPRING,BRAKE VALVE | 1 | SN: 63001- |
|||
| ? | 714-07-16270 | • • • STOPPER | 1 | SN: 63001- |
|||
| ? | 419-15-15640 | • • • PLUG | 3 | SN: 63001- |
|||
| ? | 714-07-16842 | • • • COVER,LOWER VALVE¤ L.H. | 1 | SN: 63001- |
|||
| ? | 714-07-16851 | • • • COVER,LOWER VALVE¤ R.H. | 1 | SN: 63001- |
|||
| ? | 714-07-16950 | • • • GASKET,LOWER VALVE¤ L.H. (K2) | 1 | SN: 63001- |
|||
| ? | 714-07-16960 | • • • GASKET,LOWER VALVE¤ R.H. (K2) | 1 | SN: 63001- |
|||
| ? | 17A-15-17271 | • • • SOLENOID VALVE,SOLENOID | 4 | SN: (100682)- |
|||
| ? | 714-10-16951 | • • • VALVE ASS'Y,SOLENOID | 4 | SN: 63001-(100681) |
|||
| ? | 714-10-16960 | • • • • O-RING (K2) | 1 | SN: 63001-(100681) |
|||
| ? | 714-10-16970 | • • • • O-RING (K2) | 1 | SN: 63001-(100681) |
|||
| ? | 714-07-16730 | • • • VALVE ASS'Y,SOLENOID | 1 | SN: 63001- |
|||
| ? | 421-06-16510 | • • • • O-RING (K2) | 1 | SN: 63001- |
|||
| ? | 421-06-16520 | • • • • O-RING (K2) | 1 | SN: 63001- |
|||
| ? | 01220-40412 | • • • SCREW | 16 | SN: 63001- |
|||
| ? | 01220-40416 | • • • SCREW | 4 | SN: 63001- |
|||
| ? | 01220-40406 | • • • SCREW | 1 | SN: 63001- |
|||
| ? | 01010-30835 | • • • BOLT | 7 | SN: 63001- |
|||
| ? | 01252-40845 | • • • BOLT | 2 | SN: 63001- |
|||
| ? | 01252-40835 | • • • BOLT | 12 | SN: 63001- |
|||
| ? | 01252-40825 | • • • BOLT | 2 | SN: 63001- |
|||
| ? | 07042-30108 | • • • PLUG | 2 | SN: 63001- |
