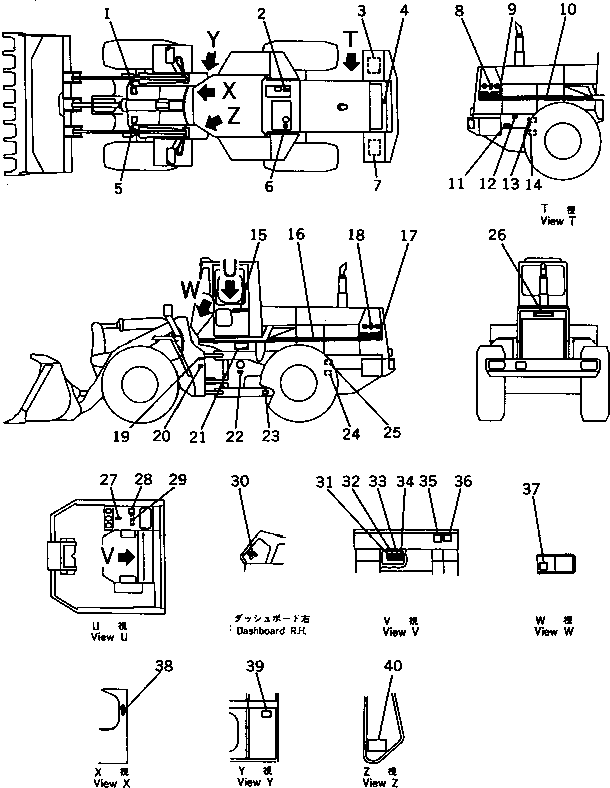

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 419-V00-1250 | PLATE, OPERATING,HANDLING | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1210 | PLATE, CAUTION,BRAKE OIL | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1120 | PLATE, CAUTION,BATTERY | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09668-01000 | PLATE, SAFETY,RADIATOR CAP | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1250 | PLATE, OPERATING,HANDLING | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09653-01000 | PLATE, SAFETY,HYDRAULIC TANK | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-VOO-1120 | PLATE, CAUTION,BATTERY | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-93-11541 | PLATE, MARK,SYMBOL | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-93-11561 | PLATE, MARK,WA450 | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 423-93-11142 | PLATE, STRIPE | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09101-01000 | PLATE, CAUTION,FUEL | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1140 | PLATE, CAUTION,FAN | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1250 | PLATE, OPERATING,HANDLING | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1180 | PLATE, CAUTION,ENGINE OIL DRAIN | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09690-50280 | PLATE, MARK,KOMATSU | 2 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 423-93-11142 | PLATE, STRIPE | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-93-11561 | PLATE, MARK,WA450 | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-93-11541 | PLATE, MARK,SYMBOL | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1230 | PLATE, CAUTION,KEEP OUT | 2 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09152-01000 | PLATE, SAFETY,AIR TANK, DRAIN | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1112 | CHART, OIL | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | (☒421-V00-1111) | CHART, OIL | 1 | SN: (10001-.) KIT-FLAG: _- SERIALNO: (10001-.) |
|||
| ? | 419-V00-1260 | PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1130 | PLATE, CAUTION,FRAME LOCK | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1190 | PLATE, CAUTION,RADIATOR WATER DRAIN | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1250 | PLATE, OPERATING,HANDLING | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09690-50400 | PLATE, MARK,KOMATSU | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09685-00003 | PLATE, OPERATING,LEVER LOCK | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-93-11132 | PLATE, OPERATING,BUCKET CONTROL LEVER | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 423-V00-1120 | PLATE, OPERATING,RELAY | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09683-11070 | PLATE, OPERATING,STARTING SWITCH | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1130 | PLATE, OPERATING,BREAKER | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1140 | PLATE, OPERATING,BREAKER | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1150 | PLATE, OPERATING,BREAKER | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1160 | PLATE, OPERATING,BREAKER | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1150 | PLATE, SAFETY,STARTING AND AFTER OPERATING | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 419-V00-1120 | PLATE, CAUTION,STARTING AND INSPECTION | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1310 | PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 421-V00-1170 | PLATE,P.O.C. PIPING | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 09602-11635 | PLATE, NAME,(LIMITED SUPPLY) | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 04418-13060 | SCREW | 4 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
|||
| ? | 423-V00-1130 | PLATE, OPERATING,MONITOR PANEL | 1 | SN: 10001-19999 KIT-FLAG: _- SERIALNO: 10001-19999 |
