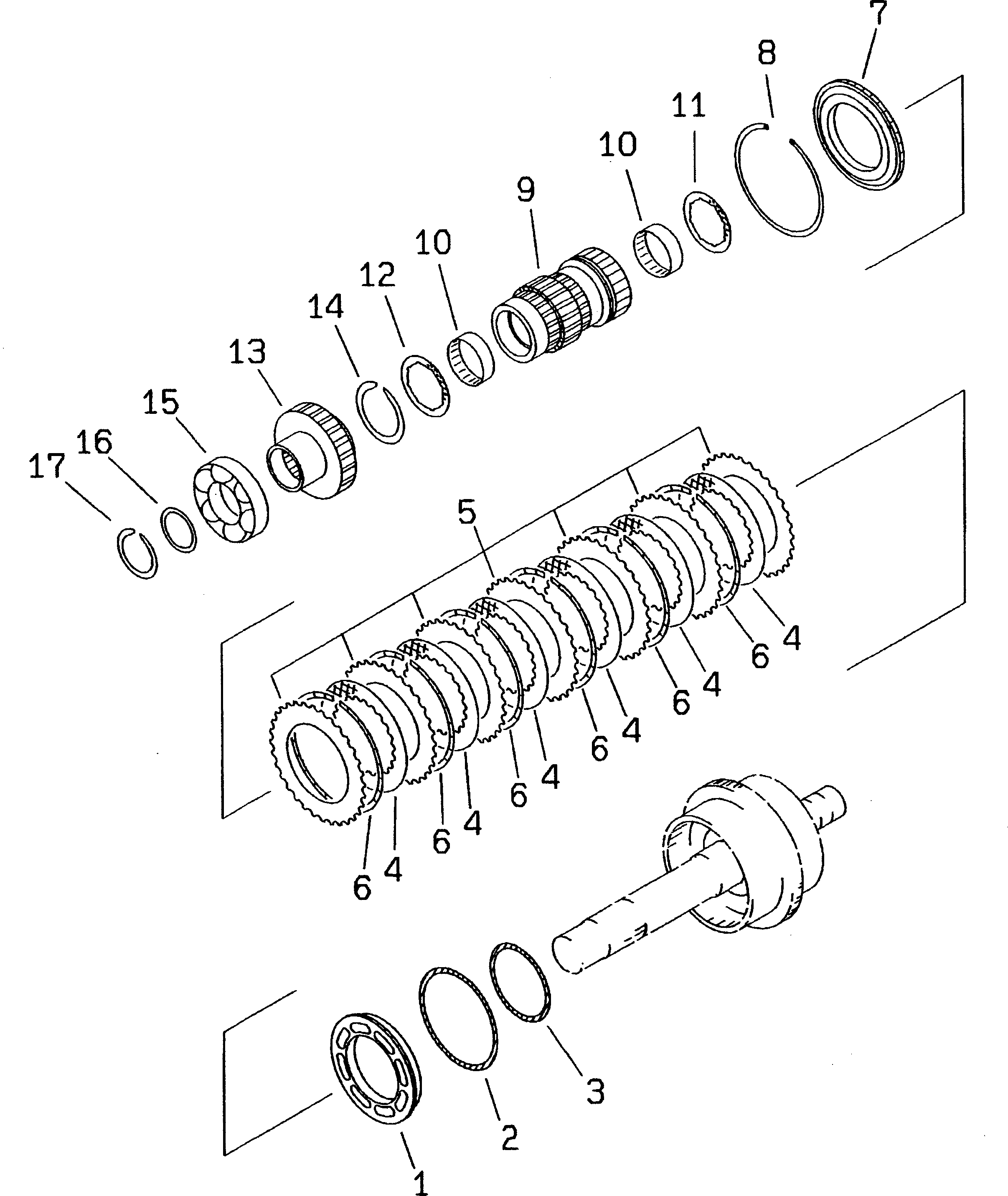

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (714-12-10010) | TORQFLOW ASS'Y | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271. | SERIALNO: |
|||||
| ? | (714-12-12020) | • CLUTCH ASS'Y,1ST AND 3RD | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2223 AND 2224. | SERIALNO: |
|||||
| ? | 714-12-12660 | • • PISTON,1ST | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-16-19220 | • • RING,SEAL | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-16-19210 | • • RING,SEAL | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-12-19710 | • • DISC | 6 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-16-19730 | • • PLATE,SEPARATE | 7 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 419-15-12133 | • • SPRING,WAVE | 6 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-12-12610 | • • PLATE,END | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 419-15-12140 | • • RING,SNAP | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-12-12430 | • • GEAR, 21 TEETH,1ST | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 419-15-12660 | • • BEARING,NEEDLE | 2 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-08-19570 | • • WASHER,THRUST | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-08-19560 | • • WASHER,THRUST | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-12-12510 | • • GEAR, 29 TEETH,2ND | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 04066-00062 | • • RING,SNAP | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-12-19340 | • • BEARING,ROLLER | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 714-12-12910 | • • SPACER | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
|||
| ? | 04066-00060 | • • RING,SNAP | 1 | SN: 50001- KIT-FLAG: _- SERIALNO: 50001- |
