| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (418-22-30011) | AXLE ASS'Y,FRONT | 1 | SN: 70001- |
|||
| ? | (418-22-30060) | AXLE ASS'Y,FRONT (ASD) | 1 | SN: 70001- |
|||

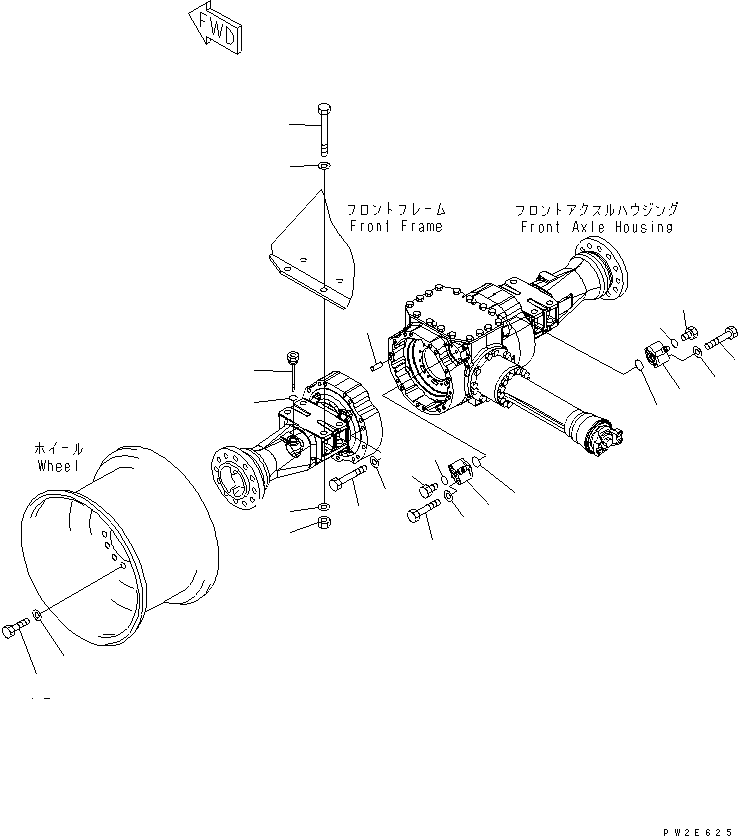

| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4400-01A0 TO F4400-04A0. | ||||||
| ? | 04020-01228 | • PIN,DOWEL | 4 | SN: 70001- |
|||
| ? | 01011-61620 | • BOLT | 30 | SN: 70001- |
|||
| ? | 01643-31645 | • WASHER | 30 | SN: 70001- |
|||
| ? | 417-22-23250 | • PLUG | 1 | SN: 70001- |
|||
| ? | 07002-13034 | • O-RING | 1 | SN: 70001- |
|||
| ? | 418-43-37302 | • VALVE | 2 | SN: 70001- |
|||
| ? | 07000-12040 | • O-RING | 2 | SN: 70001- |
|||
| ? | 01010-61290 | • BOLT | 4 | SN: 70001- |
|||
| ? | 01643-31232 | • WASHER | 4 | SN: 70001- |
|||
| ? | 07040-11409 | • PLUG | 2 | SN: 70001- |
|||
| ? | 07002-11423 | • O-RING | 2 | SN: 70001- |
|||
| ? | 419-22-12870 | BOLT | 24 | SN: 70001- |
|||
| ? | 01643-32460 | WASHER | 24 | SN: 70001- |
|||
| ? | 01011-62475 | BOLT | 8 | SN: 70001- |
|||
| ? | 01580-02419 | NUT | 8 | SN: 70001- |
|||
| ? | 01643-32460 | WASHER | 16 | SN: 70001- |
