Содержание Wheel Loaders Komatsu WA300-3A-X S/N 50001-52999(wa300-3r)

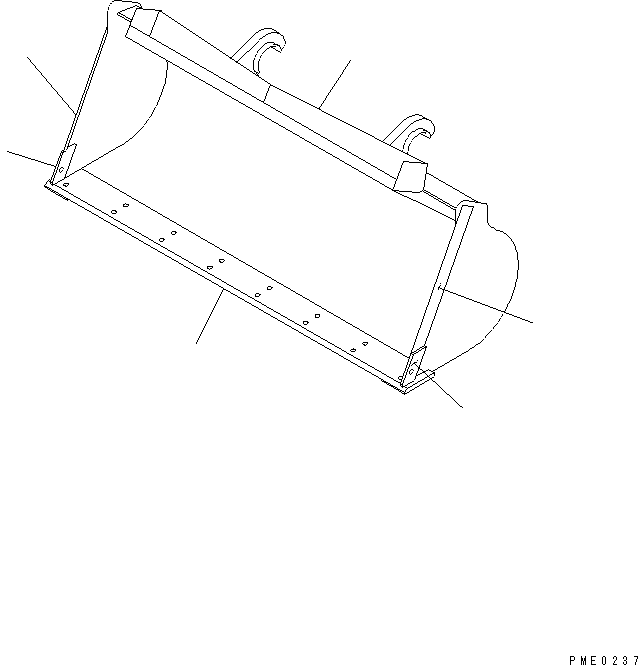

COUPLER LIGTH MATERIAL BUCKET¤ 2.3M3 (WITH BOLT ON CUTTING EDGE¤ 2.5M3)(#50001-)(210290 : 7701)
Номер на схеме Каталожный номер Название Количество Детали
? 419-840-1102 BUCKET,2.3M3 1
SN: 50001-
? 419-70-12131 • PLATE (WELDED) 2
SN: 50001-
? 419-70-12122 • EDGE (WELDED) 1
SN: 50001-
? 419-70-12154 • PLATE,L.H. (WELDED) 1
SN: 50001-
? 419-70-12164 • PLATE,R.H. (WELDED) 1
SN: 50001-

Wheel Loaders Komatsu / WA300-3A-X S/N 50001-52999(wa300-3r) / COUPLER LIGTH MATERIAL BUCKET¤ 2.3M3 (WITH BOLT ON CUTTING EDGE¤ 2.5M3)(#50001-)(210290 : 7701)
?
?
?
?
?
?
