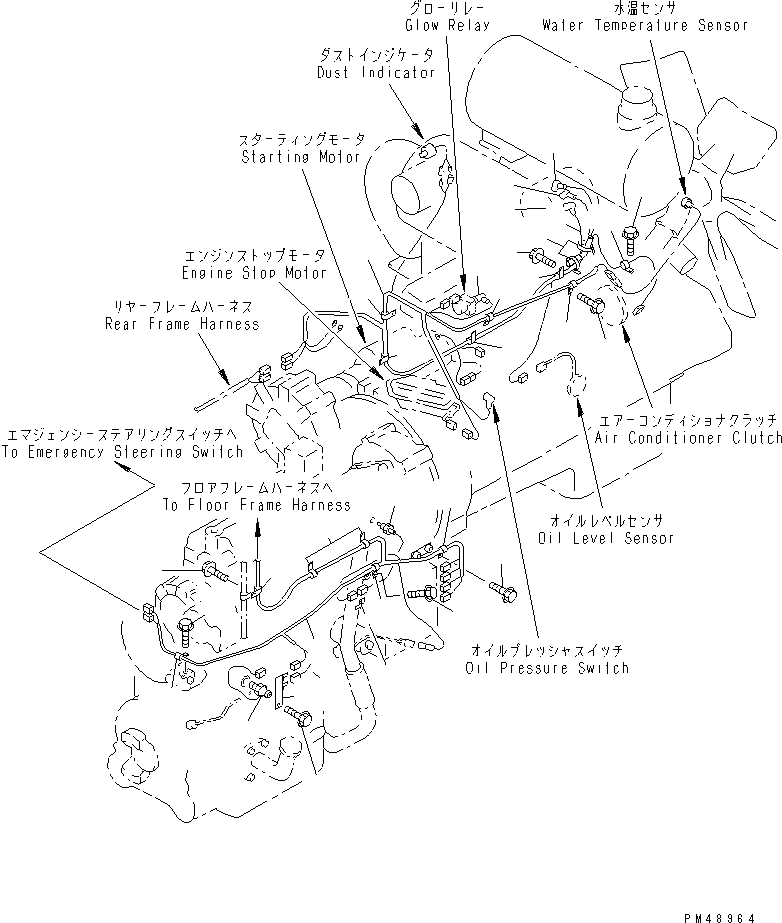

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 423-06-22180 | WIRING HARNESS,ENGINE | 1 | SN: 50001- |
|||
| ? | 08020-10000 | • DIODE | 1 | SN: 50001- |
|||
| ? | 428-S20-1120 | • CONNECTOR,SHORT | 1 | SN: 50001- |
|||
| ? | 423-06-27711 | WIRING HARNESS | 1 | SN: 50379- |
|||
| ? | □423-06-27710 | WIRING HARNESS | 1 | SN: 50001-50378 |
|||
| ? | 08038-00519 | CAP | 2 | SN: 50001- |
|||
| ? | 08038-02027 | CAP | 1 | SN: 50001- |
|||
| ? | 08038-00525 | CAP | 1 | SN: 50001- |
|||
| ? | 423-06-22150 | WIRING HARNESS,TRANSMISSION | 1 | SN: 50001- |
|||
| ? | 08020-10000 | • DIODE | 5 | SN: 50001- |
|||
| ? | 421-06-22750 | • CONNECTOR,SHORT | 2 | SN: 50001- |
|||
| ? | 7861-92-2330 | SENSOR,SPEED | 1 | SN: 50001- |
|||
| ? | 7861-92-3320 | SENSOR,TORQUE CONVERTER OIL TEMP. | 1 | SN: 50001- |
|||
| ? | 08036-02514 | CLIP | 5 | SN: 50001- |
|||
| ? | 04434-52210 | CLIP | 1 | SN: 50001- |
|||
| ? | 08036-01014 | CLIP | 3 | SN: 50001- |
|||
| ? | 01435-01016 | BOLT | 7 | SN: 50001- |
|||
| ? | 04434-52210 | CLIP | 3 | SN: 50001- |
|||
| ? | 08036-01414 | CLIP | 1 | SN: 50001- |
|||
| ? | 08036-01014 | CLIP | 2 | SN: 50001- |
|||
| ? | 419-06-22610 | PLATE | 1 | SN: 50001- |
|||
| ? | 01435-01016 | BOLT | 6 | SN: 50001- |
|||
| ? | 08053-01510 | CLIP | 1 | SN: 50001- |
|||
| ? | 08034-20519 | BAND | 2 | SN: 50001- |
