| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

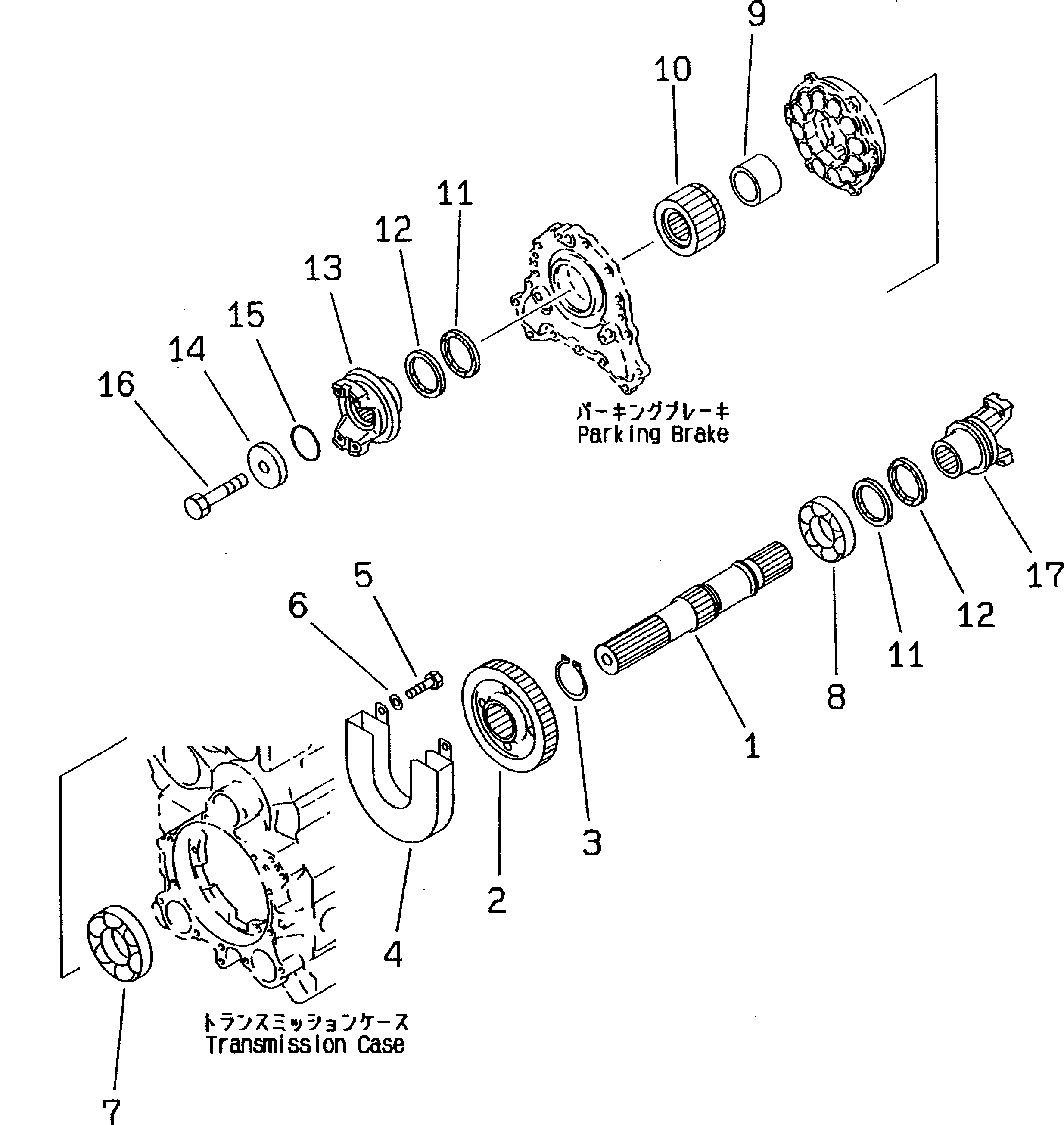

| ? | (714-16-10031) | TRANSMISSION ASS'Y | 1 | SN: (83187)- |
|||
| ? | (□714-16-10030) | TRANSMISSION ASS'Y | 1 | SN: 50001-(83186) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2371. | ||||||
| ? | 714-12-14520 | • SHAFT,OUTPUT | 1 | SN: 50001- |
|||
| ? | 714-12-14620 | • GEAR¤ 36 TEETH | 1 | SN: 50001- |
|||
| ? | 04064-07525 | • RING,SNAP | 1 | SN: 50001- |
|||
| ? | 714-12-14910 | • COVER,GEAR | 1 | SN: 50001- |
|||
| ? | 01010-61225 | • BOLT | 2 | SN: (83160)- |
|||
| ? | 01010-31225 | • BOLT | 2 | SN: 50001-(83159) |
|||
| ? | 01643-31232 | • WASHER | 2 | SN: 50001- |
|||
| ? | 06002-30213 | • BEARING | 1 | SN: 50001- |
|||
| ? | 06002-32013 | • BEARING | 1 | SN: 50001- |
|||
| ? | 714-12-18680 | • SPACER | 1 | SN: 50001- |
|||
| ? | 714-12-18610 | • HUB | 1 | SN: 50001- |
|||
| ? | 714-12-19120 | • SEAL,OIL (K1) | 2 | SN: 50001- |
|||
| ? | 714-12-19170 | • SEAL,DUST (K1) | 2 | SN: 50001- |
|||
| ? | 714-16-14110 | • COUPLING,FRONT | 1 | SN: 50001- |
|||
| ? | 423-20-15310 | • • DEFLECTOR | 1 | SN: 50001- |
|||
| ? | 423-22-21240 | • WASHER | 1 | SN: 50001- |
|||
| ? | 07000-05055 | • O-RING (K1) | 1 | SN: 50001- |
|||
| ? | 01011-32020 | • BOLT | 1 | SN: 50001- |
|||
| ? | 714-16-14120 | • COUPLING,REAR | 1 | SN: 50001- |
|||
| ? | 714-11-14320 | • • DEFLECTOR | 1 | SN: 50001- |
