| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (714-16-10031) | TRANSMISSION ASS'Y | 1 | SN: (83187)- |
|||
| ? | (□714-16-10030) | TRANSMISSION ASS'Y | 1 | SN: 50001-(83186) |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2371. | ||||||

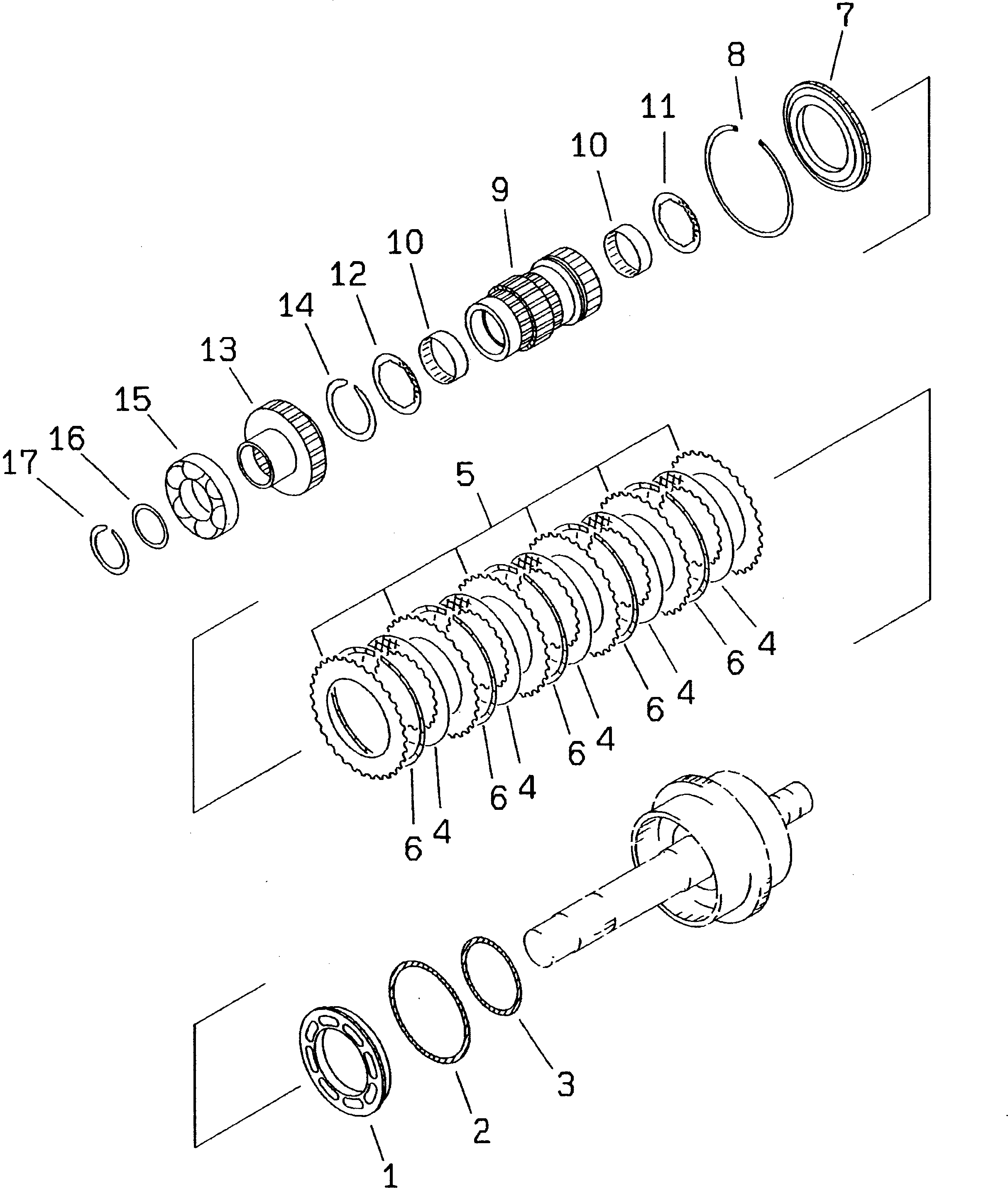

| ? | (714-16-12020) | • CLUTCH ASS'Y,1ST AND 3RD | 1 | SN: 50001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2323 AND 2324. | ||||||
| ? | 714-16-12660 | • • PISTON,1ST | 1 | SN: 50001- |
|||
| ? | 714-16-19230 | • • RING,SEAL | 1 | SN: 50001- |
|||
| ? | 714-16-19210 | • • RING,SEAL | 1 | SN: 50001- |
|||
| ? | 714-12-19710 | • • DISC | 5 | SN: 50001- |
|||
| ? | 714-16-19730 | • • PLATE,SEPARATE | 6 | SN: 50001- |
|||
| ? | 419-15-12133 | • • SPRING,WAVE | 5 | SN: 50001- |
|||
| ? | 714-12-12610 | • • PLATE,END | 1 | SN: 50001- |
|||
| ? | 419-15-12140 | • • RING,SNAP | 1 | SN: 50001- |
|||
| ? | 714-12-12430 | • • GEAR¤ 21 TEETH,1ST | 1 | SN: 50001- |
|||
| ? | 419-15-12660 | • • BEARING,NEEDLE | 2 | SN: 50001- |
|||
| ? | 714-08-19570 | • • WASHER,THRUST | 1 | SN: 50001- |
|||
| ? | 714-08-19560 | • • WASHER,THRUST | 1 | SN: 50001- |
|||
| ? | 714-12-12510 | • • GEAR¤ 29 TEETH,2ND | 1 | SN: 50001- |
|||
| ? | 04066-00062 | • • RING,SNAP | 1 | SN: 50001- |
|||
| ? | 714-12-19340 | • • BEARING | 1 | SN: 50001- |
|||
| ? | 714-12-12910 | • • SPACER | 1 | SN: 50001- |
|||
| ? | 04066-00060 | • • RING,SNAP | 1 | SN: 50001- |
