| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

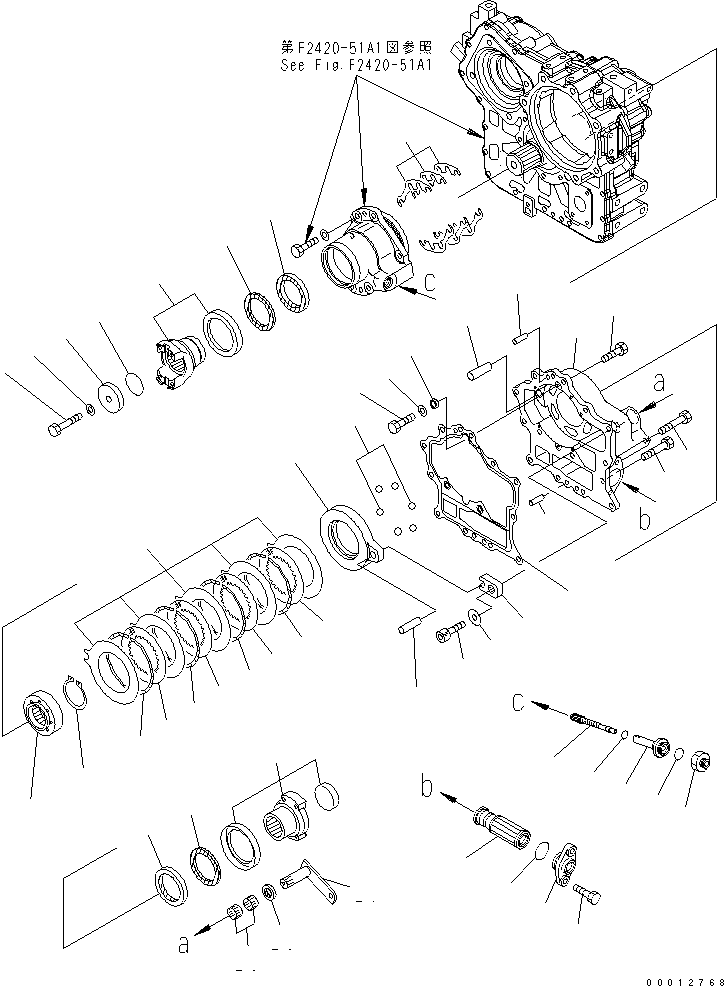

| ? | (417-17-35000) | TRANSFER ASS'Y | 1 | SN: 65001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2420-51A0 TO F2420-54A0. | ||||||
| ? | 417-17-33310 | • COUPLING COMPLETE | 1 | SN: 65001- |
|||
| ? | ☆ | • • COUPLING | 1 | SN: 65001- |
|||
| ? | ☆ | • • COVER | 1 | SN: 65001- |
|||
| ? | 418-17-33320 | • COUPLING COMPLETE | 1 | SN: 65001- |
|||
| ? | ☆ | • • COUPLING | 1 | SN: 65001- |
|||
| ? | ☆ | • • • COUPLING | 1 | SN: 65001- |
|||
| ? | ☆ | • • • COVER | 1 | SN: 65001- |
|||
| ? | ☆ | • • COVER | 1 | SN: 65001- |
|||
| ? | 07012-50075 | • SEAL | 2 | SN: 65001- |
|||
| ? | 419-15-13660 | • SEAL | 2 | SN: 65001- |
|||
| ? | 423-22-11240 | • HOLDER | 1 | SN: 65001- |
|||
| ? | 01010-61680 | • BOLT | 1 | SN: 65001- |
|||
| ? | 01643-31645 | • WASHER | 1 | SN: 65001- |
|||
| ? | 07000-72055 | • O-RING | 1 | SN: 65001- |
|||
| ? | 418-17-33420 | • SHIM¤ 0.05MM | 6 | SN: 65001- |
|||
| ? | 418-17-33430 | • SHIM¤ 0.20MM | 6 | SN: 65001- |
|||
| ? | 418-17-33440 | • SHIM¤ 0.50MM | 4 | SN: 65001- |
|||
| ? | 418-17-38115 | • HOUSING | 1 | SN: 65001- |
|||
| ? | 01010-80812 | • BOLT | 1 | SN: 65001- |
|||
| ? | 01643-30823 | • WASHER | 1 | SN: 65001- |
|||
| ? | 418-17-38160 | • SPACER | 2 | SN: 65001- |
|||
| ? | 418-17-38210 | • HUB | 1 | SN: 65001- |
|||
| ? | 04064-06020 | • RING | 1 | SN: 65001- |
|||
| ? | 418-17-38221 | • PLATE | 5 | SN: 65001- |
|||
| ? | 418-17-38170 | • PIN | 1 | SN: 65001- |
|||
| ? | 418-17-39710 | • DISC | 4 | SN: 65001- |
|||
| ? | 56D-15-12710 | • SPRING | 4 | SN: 65001- |
|||
| ? | 418-17-38521 | • PISTON ASS'Y | 1 | SN: 65001- |
|||
| ? | 714-11-18340 | • BALL | 6 | SN: 65001- |
|||
| ? | 418-17-38134 | • GASKET | 1 | SN: 65001- |
|||
| ? | 04020-01228 | • PIN | 2 | SN: 65001- |
|||
| ? | 01010-81235 | • BOLT | 8 | SN: 65001- |
|||
| ? | 01010-81285 | • BOLT | 4 | SN: 65001- |
|||
| ? | 01011-81255 | • BOLT | 1 | SN: 65001- |
|||
| ? | 418-17-38142 | • LEVER | 1 | SN: 65001- |
|||
| ? | 714-11-19810 | • SEAL | 1 | SN: 65001- |
|||
| ? | 06120-02520 | • BEARING | 2 | SN: 65001- |
|||
| ? | 418-17-38150 | • LEVER | 1 | SN: 65001- |
|||
| ? | 714-09-16282 | • WASHER | 1 | SN: 65001- |
|||
| ? | 01252-30816 | • BOLT | 1 | SN: 65001- |
|||
| ? | 124-15-51740 | • MAGNET ASS'Y | 1 | SN: 65001- |
|||
| ? | 418-17-38120 | • COVER | 1 | SN: 65001- |
|||
| ? | 07000-73042 | • O-RING | 1 | SN: 65001- |
|||
| ? | 01010-81235 | • BOLT | 2 | SN: 65001- |
|||
| ? | 417-17-35190 | • GEAR | 1 | SN: 65001- |
|||
| ? | 714-19-14710 | • ADAPTER | 1 | SN: 65001- |
|||
| ? | 07002-13334 | • O-RING | 1 | SN: 65001- |
|||
| ? | 07002-12434 | • O-RING | 1 | SN: 65001- |
|||
| ? | 416-17-35140 | • SLEEVE ASS'Y | 1 | SN: 65001- |
