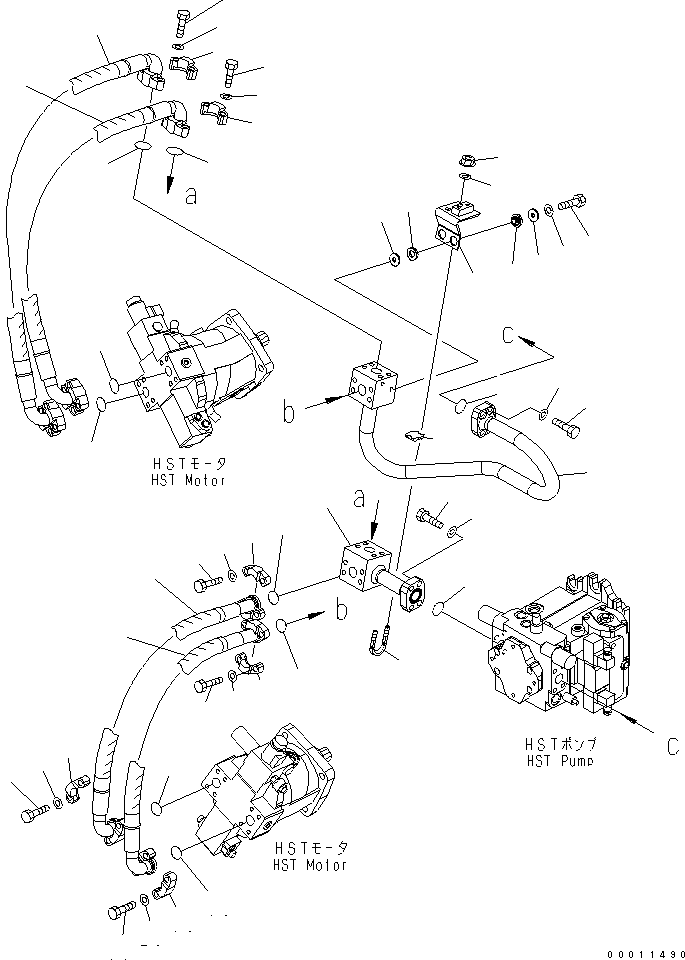

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 07000-13035 | O-RING | 1 | SN: 65001- |
|||
| ? | 418-18-32160 | TUBE | 1 | SN: 65001- |
|||
| ? | 07372-21240 | BOLT | 4 | SN: 65001- |
|||
| ? | 01643-51232 | WASHER | 4 | SN: 65001- |
|||
| ? | 415-18-21310 | O-RING | 1 | SN: 65001- |
|||
| ? | 07000-13032 | O-RING | 1 | SN: 65001- |
|||
| ? | 417-18-32111 | HOSE | 1 | SN: 65001- |
|||
| ? | 417-18-32250 | HOSE,(FOR EMERGENCY STEERING) | 1 | SN: 65001- |
|||
| ? | 415-18-11230 | FLANGE | 2 | SN: 65001- |
|||
| ? | 07372-21245 | BOLT | 4 | SN: 65001- |
|||
| ? | 20K-970-1150 | BOLT,(FOR EMERGENCY STEERING) | 4 | SN: 65001- |
|||
| ? | 209-62-64232 | FLANGE | 2 | SN: 65001- |
|||
| ? | 07372-21240 | BOLT | 4 | SN: 65001- |
|||
| ? | 01643-51232 | WASHER | 8 | SN: 65001- |
|||
| ? | 415-18-21310 | O-RING | 1 | SN: 65001- |
|||
| ? | 07000-13032 | O-RING | 1 | SN: 65001- |
|||
| ? | 417-18-32121 | HOSE | 1 | SN: 65001- |
|||
| ? | 417-18-32260 | HOSE,(FOR EMERGENCY STEERING) | 1 | SN: 65001- |
|||
| ? | 415-18-11230 | FLANGE | 2 | SN: 65001- |
|||
| ? | 07372-21245 | BOLT | 4 | SN: 65001- |
|||
| ? | 20K-970-1150 | BOLT,(FOR EMERGENCY STEERING) | 4 | SN: 65001- |
|||
| ? | 209-62-64232 | FLANGE | 2 | SN: 65001- |
|||
| ? | 07372-21240 | BOLT | 4 | SN: 65001- |
|||
| ? | 01643-51232 | WASHER | 8 | SN: 65001- |
|||
| ? | 07000-13035 | O-RING | 1 | SN: 65001- |
|||
| ? | 417-18-32291 | TUBE | 1 | SN: 65001- |
|||
| ? | 07372-21240 | BOLT | 4 | SN: 65001- |
|||
| ? | 01643-51232 | WASHER | 4 | SN: 65001- |
|||
| ? | 415-18-21310 | O-RING | 2 | SN: 65001- |
|||
| ? | 417-18-32130 | HOSE | 1 | SN: 65001- |
|||
| ? | 415-18-11230 | FLANGE | 4 | SN: 65001- |
|||
| ? | 07372-21245 | BOLT | 8 | SN: 65001- |
|||
| ? | 01643-51232 | WASHER | 8 | SN: 65001- |
|||
| ? | 415-18-21310 | O-RING | 2 | SN: 65001- |
|||
| ? | 417-18-32140 | HOSE | 1 | SN: 65001- |
|||
| ? | 415-18-11230 | FLANGE | 4 | SN: 65001- |
|||
| ? | 07372-21245 | BOLT | 8 | SN: 65001- |
|||
| ? | 01643-51232 | WASHER | 8 | SN: 65001- |
|||
| ? | 417-18-32320 | PLATE | 1 | SN: 65001- |
|||
| ? | 01010-81035 | BOLT | 2 | SN: 65001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 65001- |
|||
| ? | 07283-33450 | CLIP | 1 | SN: 65001- |
|||
| ? | 07283-53444 | SEAT | 1 | SN: 65001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 65001- |
|||
| ? | 01597-01009 | NUT | 2 | SN: 65001- |
|||
| ? | 144-854-1890 | WASHER | 4 | SN: 65001- |
|||
| ? | 421-62-18550 | CUSHION | 2 | SN: 65001- |
|||
| ? | 421-62-23710 | CUSHION | 2 | SN: 65001- |
