| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (418-923-3001) | CAB ASS'Y | 1 | SN: 65001- |
|||

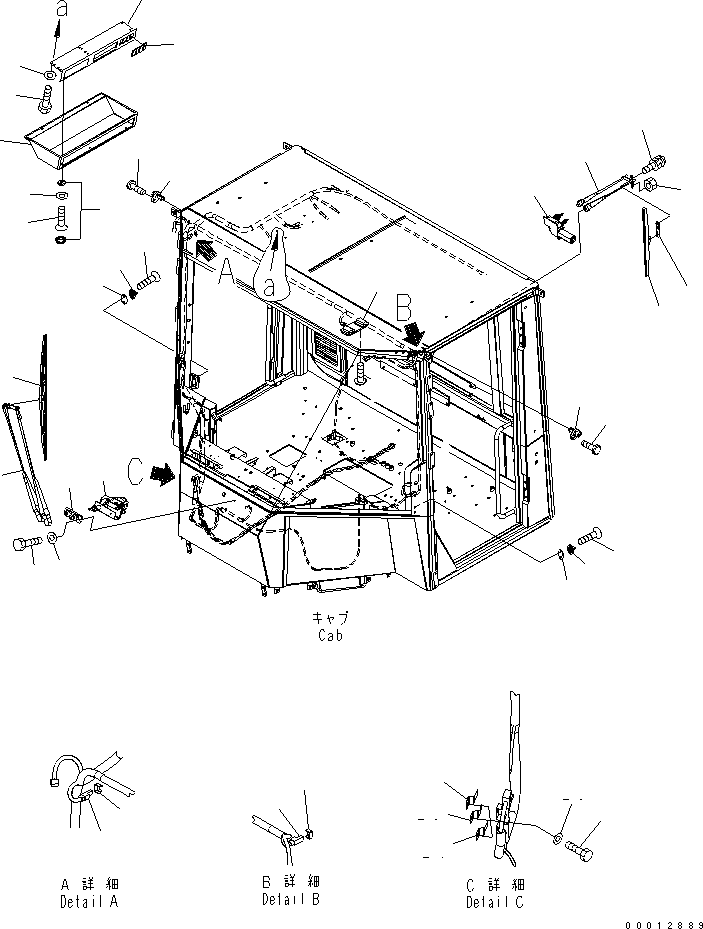

| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-71B0 TO K0210-79B0. | ||||||
| ? | 418-923-3930 | • WIPER MOTOR | 1 | SN: 65001- |
|||
| ? | 01010-D0640 | • BOLT | 1 | SN: 65001- |
|||
| ? | 01643-70623 | • WASHER | 1 | SN: 65001- |
|||
| ? | 418-923-3940 | • ARM | 1 | SN: 65001- |
|||
| ? | 418-923-3950 | • BLADE | 1 | SN: 65001- |
|||
| ? | 418-926-3990 | • PIVOT | 1 | SN: 65001- |
|||
| ? | 418-923-3960 | • WIPER MOTOR | 1 | SN: 65001- |
|||
| ? | 418-923-3970 | • ARM | 1 | SN: 65001- |
|||
| ? | 418-923-3980 | • BLADE | 1 | SN: 65001- |
|||
| ? | 417-923-3860 | • PLATE | 1 | SN: 65001- |
|||
| ? | 01023-70512 | • SCREW | 1 | SN: 65001- |
|||
| ? | 01580-10504 | • NUT | 1 | SN: 65001- |
|||
| ? | 421-06-26210 | • LAMP ASS'Y | 1 | SN: 65001- |
|||
| ? | 419-923-2130 | • SCREW | 2 | SN: 65001- |
|||
| ? | 424-926-3490 | • SWITCH | 2 | SN: 65001- |
|||
| ? | 419-923-2130 | • SCREW | 2 | SN: 65001- |
|||
| ? | 08056-00111 | • CONNECTOR | 2 | SN: 65001- |
|||
| ? | 08056-00130 | • HOLDER | 2 | SN: 65001- |
|||
| ? | 20Y-54-35470 | • STRIKER | 2 | SN: 65001- |
|||
| ? | 20Y-54-35480 | • SHIM | 2 | SN: 65001- |
|||
| ? | 01240-01025 | • SCREW | 4 | SN: 65001- |
|||
| ? | 08053-01512 | • CLIP | 1 | SN: 65001- |
|||
| ? | 08053-15012 | • CLIP | 1 | SN: 65001- |
|||
| ? | 08053-16212 | • CLIP | 1 | SN: 65001- |
|||
| ? | 01010-81016 | • BOLT | 3 | SN: 65001- |
|||
| ? | 01643-31032 | • WASHER | 3 | SN: 65001- |
|||
| ? | 418-923-3470 | • COVER | 1 | SN: 65001- |
|||
| ? | 418-06-36160 | • PLUG | 3 | SN: 65001- |
|||
| ? | 418-923-3460 | • BRACKET | 1 | SN: 65001- |
|||
| ? | 01010-80616 | • BOLT | 6 | SN: 65001- |
|||
| ? | 01643-30623 | • WASHER | 6 | SN: 65001- |
|||
| ? | 421-09-31310 | • CAP ASS'Y | 5 | SN: 65001- |
|||
| ? | 22W-70-16120 | • WASHER | 5 | SN: 65001- |
|||
| ? | 01224-40620 | • SCREW | 5 | SN: 65001- |
