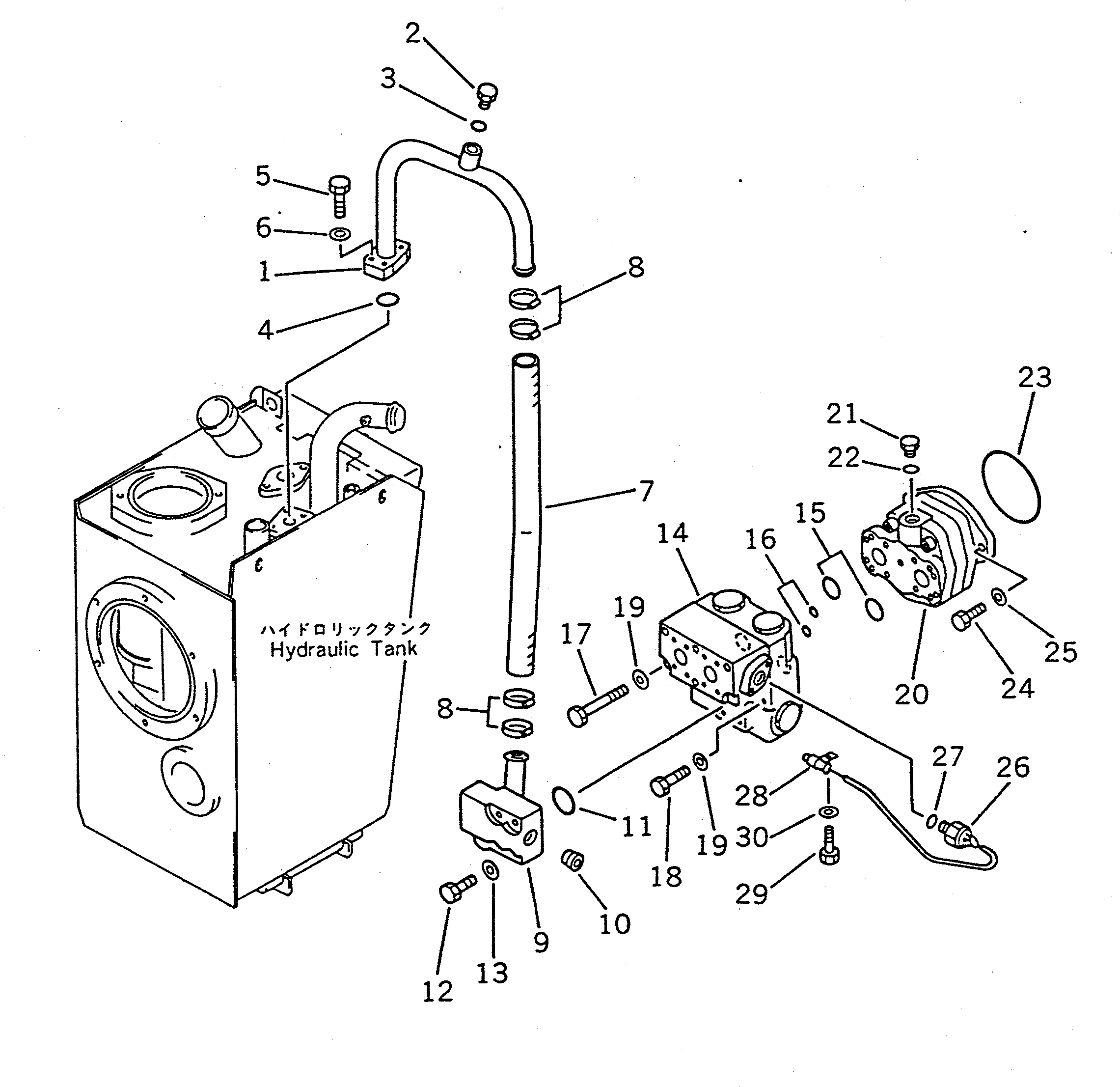

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 417-875-1262 | TUBE | 1 | SN: 10001-19999 |
|||
| ? | 424-875-1680 | PLUG | 1 | SN: 10001-@ |
|||
| ? | 20D-62-17150 | O-RING | 1 | SN: 10001-@ |
|||
| ? | 07000-03028 | O-RING | 1 | SN: 10001-19999 |
|||
| ? | 01010-30835 | BOLT | 4 | SN: 10001-19999 |
|||
| ? | 01643-50823 | WASHER | 4 | SN: 10001-19999 |
|||
| ? | 07260-02650 | HOSE | 1 | SN: 10001-@ |
|||
| ? | 07281-00489 | CLAMP | 4 | SN: 10001-@ |
|||
| ? | 417-875-1271 | TUBE | 1 | SN: 10001-@ |
|||
| ? | 07042-00617 | PLUG | 1 | SN: 10001-@ |
|||
| ? | 07000-03042 | O-RING | 1 | SN: 10001-@ |
|||
| ? | 01010-31055 | BOLT | 4 | SN: 10001-@ |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 10001-@ |
|||
| ? | (421-875-1101) | DIVIDER VALVE ASS'Y | 1 | SN: 10001-@ |
|||
| ? | 07000-13040 | O-RING | 2 | SN: 10001-@ |
|||
| ? | 07000-02012 | O-RING | 2 | SN: 10001-@ |
|||
| ? | 01010-31085 | BOLT | 2 | SN: 10001-@ |
|||
| ? | 01011-31045 | BOLT | 2 | SN: 10001-@ |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 10001-@ |
|||
| ? | (704-31-24110) | PUMP ASS'Y | 1 | SN: 10001-@ |
|||
| ? | 07040-12012 | PLUG | 1 | SN: 10001-@ |
|||
| ? | 07002-02034 | O-RING | 1 | SN: 10001-@ |
|||
| ? | 07000-02105 | O-RING | 1 | SN: 10001-@ |
|||
| ? | 01010-31235 | BOLT | 2 | SN: 10001-@ |
|||
| ? | 01643-31232 | WASHER | 2 | SN: 10001-@ |
|||
| ? | 421-06-11980 | SWITCH | 1 | SN: 10001-@ |
|||
| ? | 07002-02034 | O-RING | 1 | SN: 10001-@ |
|||
| ? | 423-06-12640 | CLIP | 1 | SN: 10001-@ |
|||
| ? | 01010-51016 | BOLT | 1 | SN: 10001-@ |
|||
| ? | 01643-31032 | WASHER | 1 | SN: 10001-@ |
