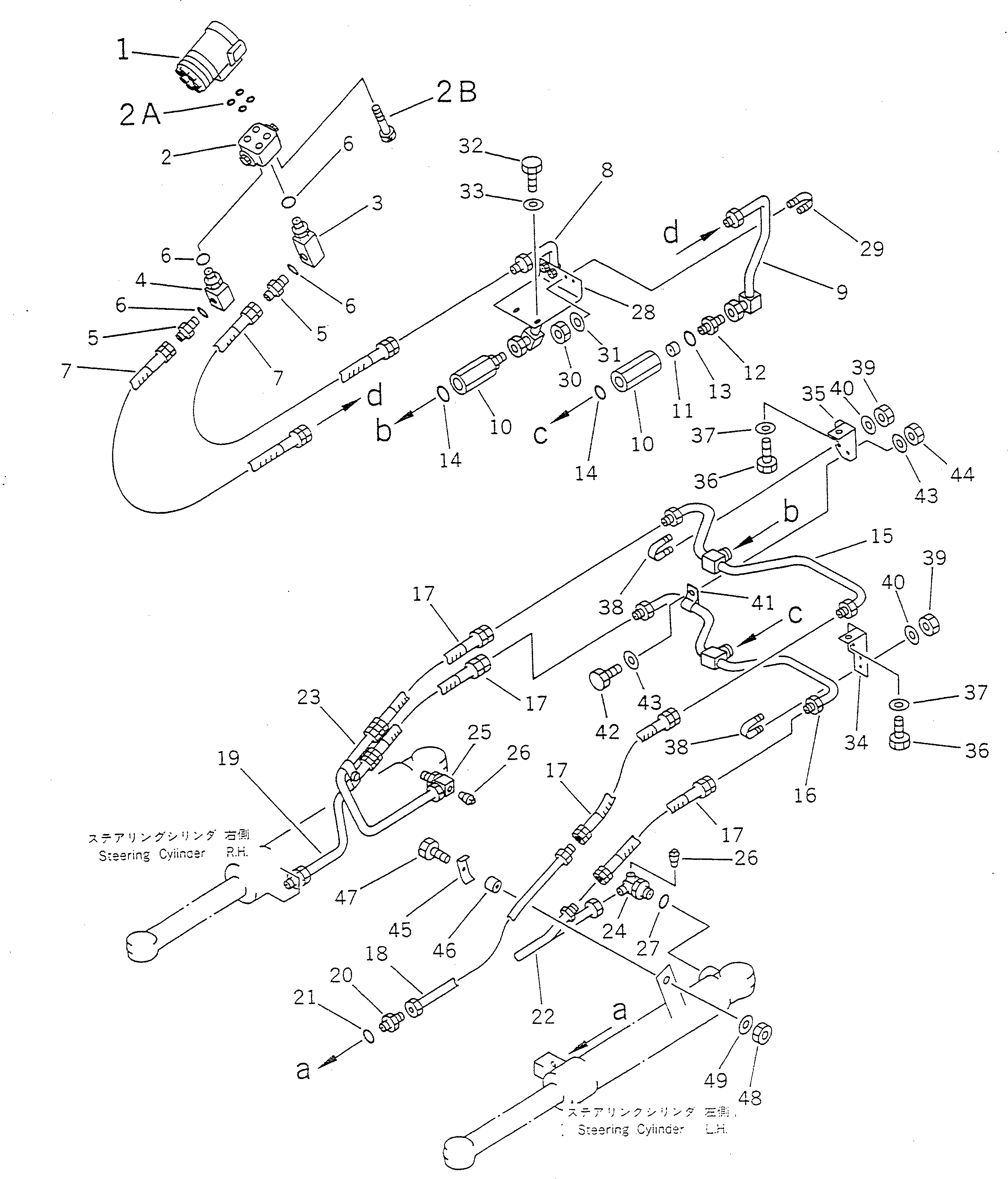

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (417-64-15201) | VALVE ASS'Y,STEERING | 1 | SN: 20001- |
|||
| ? | 416-64-15300 | VALVE ASS'Y,SAFETY | 1 | SN: 20001- |
|||
| ? | 42A-64-15310 | O-RING | 4 | SN: 20001- |
|||
| ? | 02101-00645 | BOLT | 2 | SN: 20001- |
|||
| ? | 416-62-11430 | ELBOW | 1 | SN: 20001- |
|||
| ? | 415-62-11510 | ELBOW | 1 | SN: 20001- |
|||
| ? | 416-62-11410 | NIPPLE | 2 | SN: 20001- |
|||
| ? | 415-62-11560 | O-RING | 4 | SN: 20001- |
|||
| ? | 07086-00406 | HOSE | 2 | SN: 20001- |
|||
| ? | 416-62-11191 | TUBE | 1 | SN: 20001- |
|||
| ? | 416-62-11211 | TUBE | 1 | SN: 20001- |
|||
| ? | 416-62-11130 | RESTRICTOR,2WAY | 2 | SN: 20001- |
|||
| ? | 416-62-11111 | • BODY | 1 | SN: 20001- |
|||
| ? | 416-62-11120 | • POPPET | 1 | SN: 20001- |
|||
| ? | 416-62-11140 | • UNION | 1 | SN: 20001- |
|||
| ? | 07002-13034 | • O-RING | 1 | SN: 20001- |
|||
| ? | 07002-13034 | O-RING | 2 | SN: 10001- |
|||
| ? | 417-62-11222 | TUBE | 1 | SN: 10001- |
|||
| ? | 417-62-11142 | TUBE | 1 | SN: 10001- |
|||
| ? | 07086-00303 | HOSE | 4 | SN: 10001- |
|||
| ? | 417-62-11331 | TUBE,L.H. | 1 | SN: 10001- |
|||
| ? | 417-62-11161 | TUBE,R.H. | 1 | SN: 10001- |
|||
| ? | 07230-10315 | UNION | 2 | SN: 10001- |
|||
| ? | 07002-12034 | O-RING | 2 | SN: 10001- |
|||
| ? | 417-62-11340 | TUBE,L.H. | 1 | SN: 10001- |
|||
| ? | 417-62-11171 | TUBE,R.H. | 1 | SN: 10001- |
|||
| ? | 417-62-11350 | ELBOW | 1 | SN: 10001- |
|||
| ? | 07235-50315 | ELBOW | 1 | SN: 10001- |
|||
| ? | 07042-20108 | PLUG | 2 | SN: 10001- |
|||
| ? | 07002-12034 | O-RING | 2 | SN: 10001- |
|||
| ? | 416-62-11231 | BRACKET | 1 | SN: 20001- |
|||
| ? | 07283-31529 | CLIP | 2 | SN: 20001- |
|||
| ? | 01598-00809 | NUT | 4 | SN: 20001- |
|||
| ? | 01643-30823 | WASHER | 4 | SN: 20001- |
|||
| ? | 01010-31025 | BOLT | 2 | SN: 20001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 20001- |
|||
| ? | 417-62-11260 | SUPPORT,L.H. | 1 | SN: 20001- |
|||
| ? | 417-62-11360 | SUPPORT,R.H. | 1 | SN: 10042- |
|||
| ? | 01010-31025 | BOLT | 2 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 10001- |
|||
| ? | 07283-31529 | CLIP | 3 | SN: 10042- |
|||
| ? | 01598-00809 | NUT | 6 | SN: 10042- |
|||
| ? | 01643-30823 | WASHER | 6 | SN: 10042- |
|||
| ? | 112-946-4190 | CLIP | 1 | SN: 10042- |
|||
| ? | 01010-31025 | BOLT | 1 | SN: 10042- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 10042- |
|||
| ? | 01580-01008 | NUT | 1 | SN: 10042- |
|||
| ? | 22W-62-19391 | CLAMP | 2 | SN: 10001- |
|||
| ? | 195-01-14540 | COLLAR | 2 | SN: 10001- |
|||
| ? | 01010-31040 | BOLT | 2 | SN: 10001- |
|||
| ? | 01580-01008 | NUT | 2 | SN: 10001- |
|||
| ? | 01643-31032 | WASHER | 2 | SN: 10001- |
