| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (417-15-11003) | TRANSMISSION ASS'Y | 1 | SN: 30001- |
|||
| ? | (417-15-11002) | TRANSMISSION ASS'Y | 1 | SN: 20001-29999 |
|||
| ? | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2111 TO 2171. | ||||||

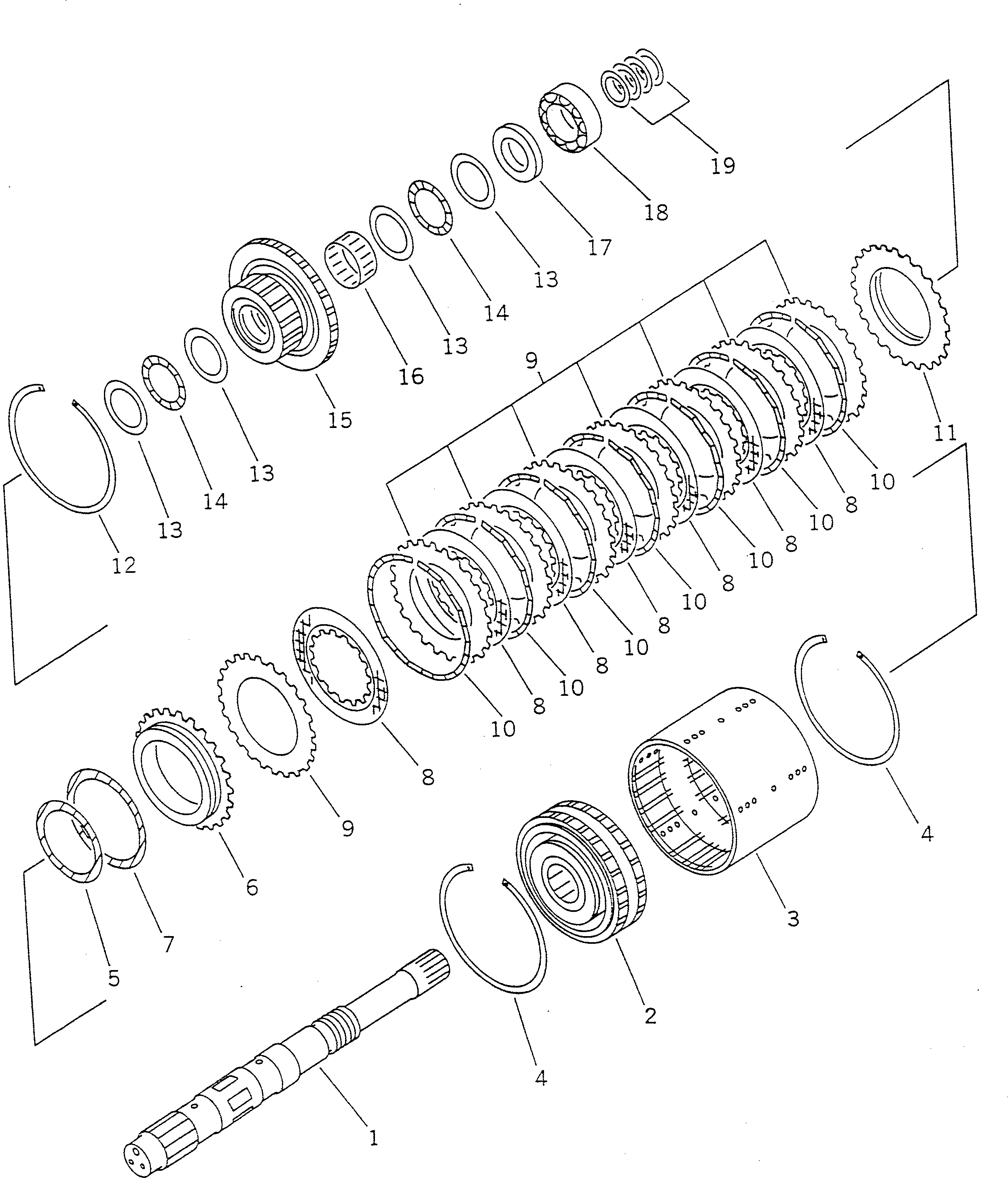

| ? | 417-15-12102 | • CLUTCH ASS'Y | 1 | SN: 20001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2131A AND 2132A. | ||||||
| ? | 417-15-12310 | • • SHAFT ASS'Y | 1 | SN: 20001- |
|||
| ? | ☆ | • • • SHAFT,FORWARD AND REVERSE | 1 | SN: 20001- |
|||
| ? | ☆ | • • • CYLINDER | 1 | SN: 20001- |
|||
| ? | 417-15-12221 | • • HOUSING | 1 | SN: 20001- |
|||
| ? | 419-15-12140 | • • RING,SNAP | 2 | SN: 20001- |
|||
| ? | 419-15-12210 | • • RING,SEAL (K1) | 1 | SN: 10001- |
|||
| ? | 419-15-12221 | • • PISTON | 1 | SN: 10001- |
|||
| ? | 419-15-12190 | • • RING,SEAL (K1) | 1 | SN: 10001- |
|||
| ? | 419-15-12290 | • • DISC | 7 | SN: 10001- |
|||
| ? | 419-15-12310 | • • PLATE,SEPARATE | 8 | SN: 10001- |
|||
| ? | 419-15-12133 | • • SPRING,WAVE | 7 | SN: 20001- |
|||
| ? | 419-15-12280 | • • PLATE,END | 1 | SN: 10001- |
|||
| ? | 419-15-12140 | • • RING,SNAP | 1 | SN: 10001- |
|||
| ? | 419-15-12240 | • • WASHER,THRUST | 4 | SN: 10001- |
|||
| ? | 419-15-12250 | • • BEARING,THRUST | 2 | SN: 10001- |
|||
| ? | 417-15-12231 | • • GEAR¤ 38 TEETH,FORWARD | 1 | SN: 20001- |
|||
| ? | 419-15-12270 | • • BEARING | 1 | SN: 10001- |
|||
| ? | 419-15-12330 | • • SPACER | 1 | SN: 10001- |
|||
| ? | 06030-06210 | • • BEARING | 1 | SN: 10001- |
|||
| ? | 419-15-12121 | • RING,SEAL (K1) | 4 | SN: 20001- |
