| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

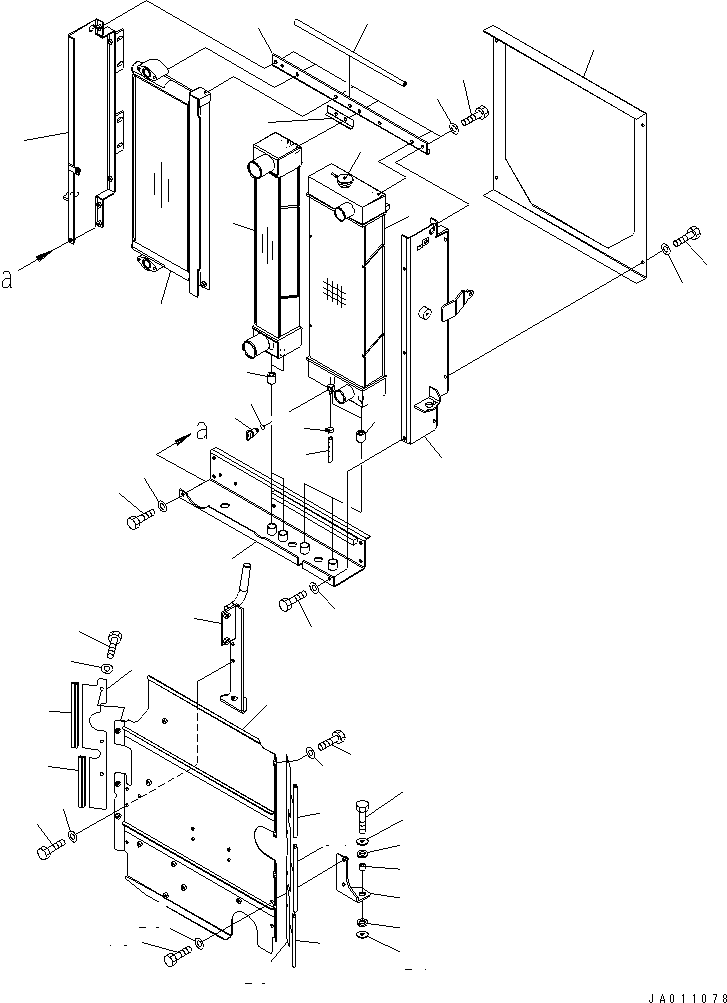

| ? | 416-03-31108 | RADIATOR ASS'Y | 1 | SN: 77279-@ KIT-FLAG: _- SERIALNO: 77279-@ |
|||
| ? | □416-03-31107 | RADIATOR ASS'Y | 1 | SN: 75118-77278 KIT-FLAG: _- SERIALNO: 75118-77278 |
|||
| ? | 416-03-31106 | RADIATOR ASS'Y | 1 | SN: 71062-75117 KIT-FLAG: _- SERIALNO: 71062-75117 |
|||
| ? | (☒416-03-31105) | RADIATOR ASS'Y | 1 | SN: (71062-71062) KIT-FLAG: _- SERIALNO: (71062-71062) |
|||
| ? | 416-03-31104 | RADIATOR ASS'Y | 1 | SN: 65059-71061 KIT-FLAG: _- SERIALNO: 65059-71061 |
|||
| ? | 416-03-32453 | • RADIATOR | 1 | SN: 71062-77278 KIT-FLAG: _- SERIALNO: 71062-77278 |
|||
| ? | (☒416-03-32452) | • RADIATOR | 1 | SN: (71062-71062) KIT-FLAG: _- SERIALNO: (71062-71062) |
|||
| ? | 416-03-32451 | • RADIATOR | 1 | SN: 65001-71061 KIT-FLAG: _- SERIALNO: 65001-71061 |
|||
| ? | 416-S14-2270 | • • CAP | 1 | SN: 65001-77278 KIT-FLAG: _- SERIALNO: 65001-77278 |
|||
| ? | 416-03-32462 | • OIL COOLER | 1 | SN: 75118-@ KIT-FLAG: _- SERIALNO: 75118-@ |
|||
| ? | 416-03-32461 | • OIL COOLER | 1 | SN: 65001-75117 KIT-FLAG: _- SERIALNO: 65001-75117 |
|||
| ? | 416-03-32471 | • AFTER COOLER | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31551 | • PLATE | 1 | SN: 65001-77278 KIT-FLAG: _- SERIALNO: 65001-77278 |
|||
| ? | 416-03-31562 | • FRAME | 1 | SN: 65001-77278 KIT-FLAG: _- SERIALNO: 65001-77278 |
|||
| ? | (☒416-03-31561) | • FRAME | 1 | SN: (65001-71061) KIT-FLAG: _- SERIALNO: (65001-71061) |
|||
| ? | 416-03-31511 | • FRAME,L.H. | 1 | SN: 65001-77278 KIT-FLAG: _- SERIALNO: 65001-77278 |
|||
| ? | (☒416-03-31510) | • FRAME,L.H. | 1 | SN: (65001-71061) KIT-FLAG: _- SERIALNO: (65001-71061) |
|||
| ? | 416-03-31521 | • FRAME,R.H. | 1 | SN: 65059-77278 KIT-FLAG: _- SERIALNO: 65059-77278 |
|||
| ? | 418-03-31452 | • SHROUD | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 418-03-31480 | • CUSHION | 4 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31570 | • PLATE | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01010-81020 | • BOLT | 20 | SN: 65001-77278 KIT-FLAG: _- SERIALNO: 65001-77278 |
|||
| ? | 01643-31032 | • WASHER | 20 | SN: 65001-77278 KIT-FLAG: _- SERIALNO: 65001-77278 |
|||
| ? | 418-03-31570 | • HOSE | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 20Y-03-11330 | • CLIP | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31165 | PLATE | 1 | SN: 75394-@ KIT-FLAG: _- SERIALNO: 75394-@ |
|||
| ? | □416-03-31164 | PLATE | 1 | SN: 65001-75393 KIT-FLAG: _- SERIALNO: 65001-75393 |
|||
| ? | 416-03-31310 | BRACKET | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31322 | BRACKET | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01010-81020 | BOLT | 4 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01010-81245 | BOLT | 2 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 421-03-11530 | SPACER | 2 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-11260 | CUSHION | 4 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 419-43-17920 | WASHER | 4 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31342 | PLATE | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01010-81020 | BOLT | 4 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01643-31032 | WASHER | 4 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 23S-54-36560 | SEAL | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31380 | SEAL | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 23S-54-36560 | SEAL | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31362 | PLATE | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01010-81020 | BOLT | 3 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 01643-31032 | WASHER | 3 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31380 | SEAL | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 23S-54-36560 | SEAL | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 416-03-31470 | SHEET (BONDED) | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 205-03-62660 | PLUG | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
|||
| ? | 07000-11007 | • O-RING | 1 | SN: 65001-@ KIT-FLAG: _- SERIALNO: 65001-@ |
