| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|

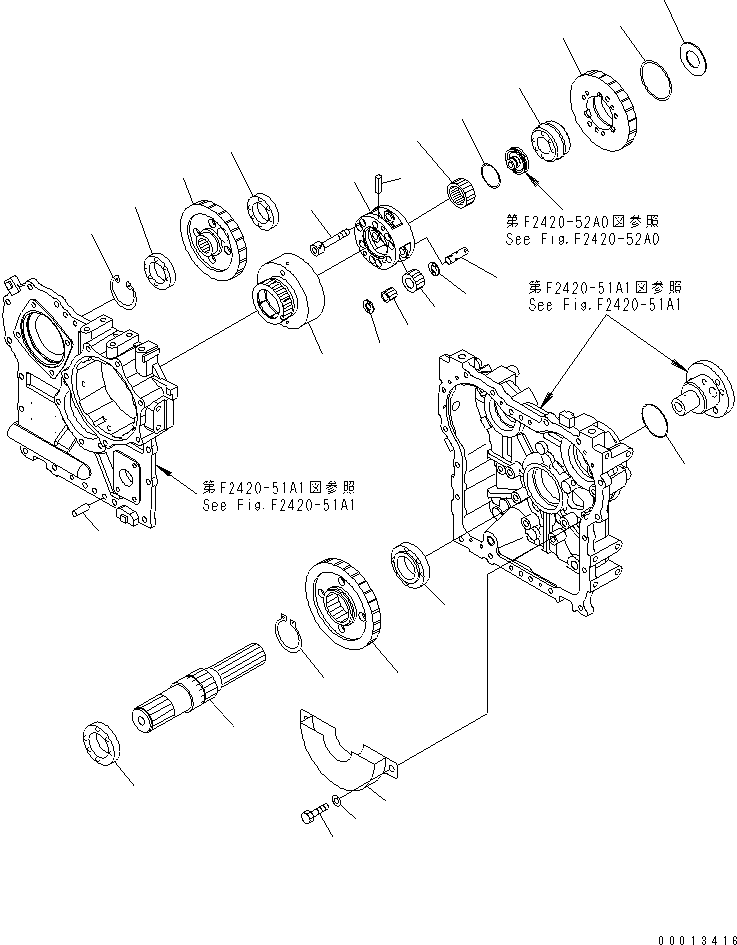

| ? | (416-17-36000) | TRANSFER ASS'Y | 1 | SN: 65001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2420-51A1 AND F2420-52A0 AND F2420-53A1 TO F2420-54A1 | ||||||
| ? | 416-17-32211 | • GEAR | 1 | SN: 65001- |
|||
| ? | 124-15-52420 | • GEAR¤ 19 TEETH | 3 | SN: 65001- |
|||
| ? | 416-17-32610 | • RING | 1 | SN: 65001- |
|||
| ? | 416-17-32311 | • CARRIER | 1 | SN: 65001- |
|||
| ? | 416-17-32510 | • SHAFT | 3 | SN: 65001- |
|||
| ? | 416-17-39311 | • BEARING,NEEDLE | 3 | SN: 65001- |
|||
| ? | 416-17-32570 | • THRUST WASHER | 6 | SN: 65001- |
|||
| ? | 124-15-52960 | • PIN | 3 | SN: 65001- |
|||
| ? | 04020-01228 | • PIN | 2 | SN: 65001- |
|||
| ? | 01252-61060 | • BOLT | 6 | SN: 65001- |
|||
| ? | 416-17-33211 | • GEAR,M1 | 1 | SN: 65001- |
|||
| ? | 416-17-39320 | • BEARING | 1 | SN: 65001- |
|||
| ? | 07018-00603 | • SEAL RING | 1 | SN: 65001- |
|||
| ? | 07000-A2070 | • O-RING | 1 | SN: 65001- |
|||
| ? | 416-17-32830 | • PLATE | 1 | SN: 65001- |
|||
| ? | 416-17-39420 | • RING,SEAL | 1 | SN: 65001- |
|||
| ? | 416-17-33220 | • GEAR,M2 | 1 | SN: 65001- |
|||
| ? | 06040-06010 | • BEARING | 2 | SN: 65001- |
|||
| ? | 04065-08025 | • RING | 1 | SN: 65001- |
|||
| ? | 416-17-33230 | • GEAR,OUTPUT | 1 | SN: 65001- |
|||
| ? | 04064-07025 | • RING | 1 | SN: 65001- |
|||
| ? | 416-17-33410 | • BUFFLE | 1 | SN: 65001- |
|||
| ? | 01010-81225 | • BOLT | 2 | SN: 65001- |
|||
| ? | 01643-31232 | • WASHER | 2 | SN: 65001- |
|||
| ? | 416-17-32121 | • SHAFT | 1 | SN: 65001- |
|||
| ? | 06002-32012 | • BEARING | 1 | SN: 65001- |
|||
| ? | 06002-30211 | • BEARING | 1 | SN: 65001- |
