| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (418-926-3050) | CAB ASS'Y | 1 | SN: 65001- |
|||
| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-51A0 TO K0210-58A0. | ||||||

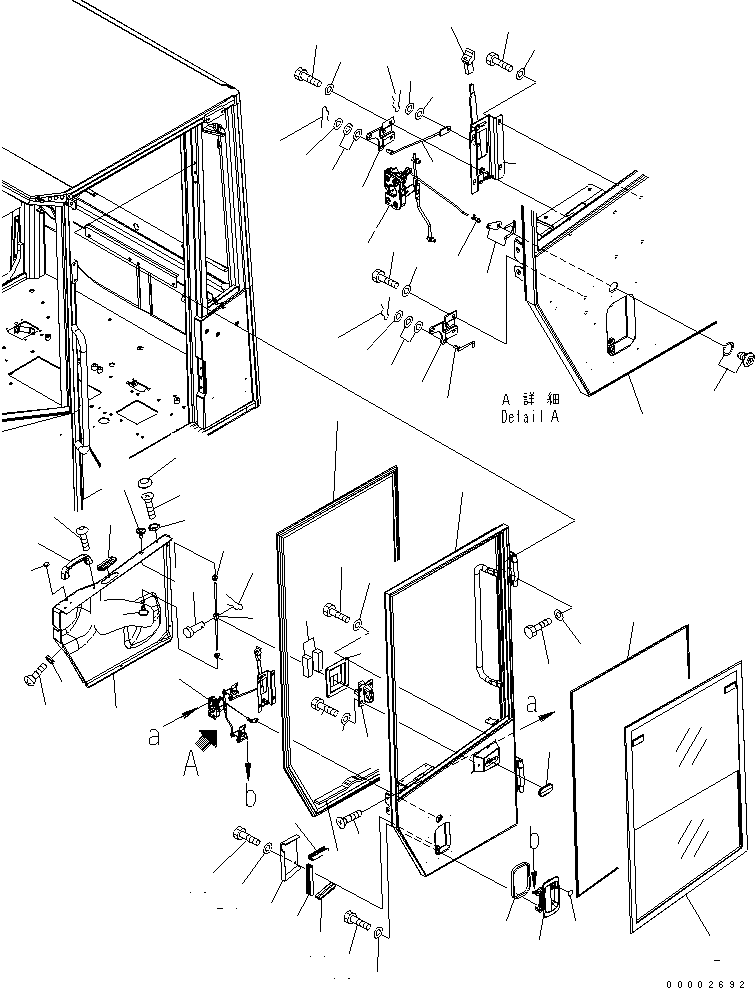

| ? | 417-926-3102 | • DOOR ASS'Y,L.H. | 1 | SN: 65001- |
|||
| ? | 417-926-3111 | • • DOOR,L.H. | 1 | SN: 65001- |
|||
| ? | 417-926-3131 | • • SASH ASS'Y,L.H. | 1 | SN: 65001- |
|||
| ? | 417-926-3141 | • • LOCK,L.H. | 1 | SN: 65001- |
|||
| ? | 01224-70616 | • • SCREW | 3 | SN: 65001- |
|||
| ? | 417-926-3150 | • • ROD | 1 | SN: 65001- |
|||
| ? | 417-926-3160 | • • ROD,L.H. | 1 | SN: 65001- |
|||
| ? | 417-926-3171 | • • ROD | 1 | SN: 65001- |
|||
| ? | 417-926-3181 | • • COVER | 1 | SN: 65001- |
|||
| ? | 417-926-3191 | • • COVER | 1 | SN: 65001- |
|||
| ? | 417-926-3410 | • • SEAL | 2 | SN: 65001- |
|||
| ? | 417-926-3420 | • • SEAL | 1 | SN: 65001- |
|||
| ? | 417-926-3210 | • • LINK ASS'Y,L.H. | 2 | SN: 65001- |
|||
| ? | 417-926-3221 | • • DAM | 1 | SN: 65001- |
|||
| ? | 417-926-3230 | • • SEAL,L.H. | 1 | SN: 65001- |
|||
| ? | 417-926-3370 | • • KNOB | 2 | SN: 65001- |
|||
| ? | 417-926-3250 | • • SCREW | 2 | SN: 65001- |
|||
| ? | 417-926-3260 | • • LOCK ASS'Y,L.H. | 1 | SN: 65001- |
|||
| ? | 418-926-3912 | • • COVER,L.H. | 1 | SN: 65001- |
|||
| ? | 01010-80616 | • • BOLT | 16 | SN: 65001- |
|||
| ? | 01010-80620 | • • BOLT | 4 | SN: 65001- |
|||
| ? | 01224-70616 | • • SCREW | 2 | SN: 65001- |
|||
| ? | 01225-70616 | • • SCREW | 5 | SN: 65001- |
|||
| ? | 01640-20610 | • • WASHER | 3 | SN: 65001- |
|||
| ? | 01643-30623 | • • WASHER | 25 | SN: 65001- |
|||
| ? | 04052-10430 | • • PIN | 1 | SN: 65001- |
|||
| ? | 04052-10633 | • • PIN | 3 | SN: 65001- |
|||
| ? | 04205-10418 | • • PIN | 1 | SN: 65001- |
|||
| ? | 08037-10610 | • • GROMMET | 2 | SN: 65001- |
|||
| ? | 09415-01008 | • • CAP | 1 | SN: 65001- |
|||
| ? | 14X-911-1540 | • • KNOB | 1 | SN: 65001- |
|||
| ? | 205-54-71830 | • • SNAP | 1 | SN: 65001- |
|||
| ? | 205-54-72220 | • • HANDLE | 1 | SN: 65001- |
|||
| ? | 417-926-3380 | • • LOCK | 1 | SN: 65001- |
|||
| ? | 418-926-3490 | • • WASHER | 5 | SN: 65001- |
|||
| ? | 421-09-31310 | • • CAP ASS'Y | 2 | SN: 65001- |
|||
| ? | 421-56-21720 | • • CAP | 1 | SN: 65001- |
|||
| ? | 423-926-3223 | • • HANDLE | 1 | SN: 65001- |
|||
| ? | 424-926-3260 | • • HANDLE | 1 | SN: 65001- |
|||
| ? | 424-926-3630 | • • GROMMET | 1 | SN: 65001- |
|||
| ? | 423-926-3860 | • • GROMMET | 1 | SN: 65001- |
|||
| ? | 417-926-3430 | • • SHEET | 1 | SN: 65001- |
|||
| ? | 417-926-3440 | • • SHEET | 2 | SN: 65001- |
|||
| ? | 417-926-3540 | • • SEAL | 1 | SN: 65001- |
|||
| ? | 01010-81016 | • BOLT | 6 | SN: 65001- |
|||
| ? | 01643-31032 | • WASHER | 6 | SN: 65001- |
