| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||||

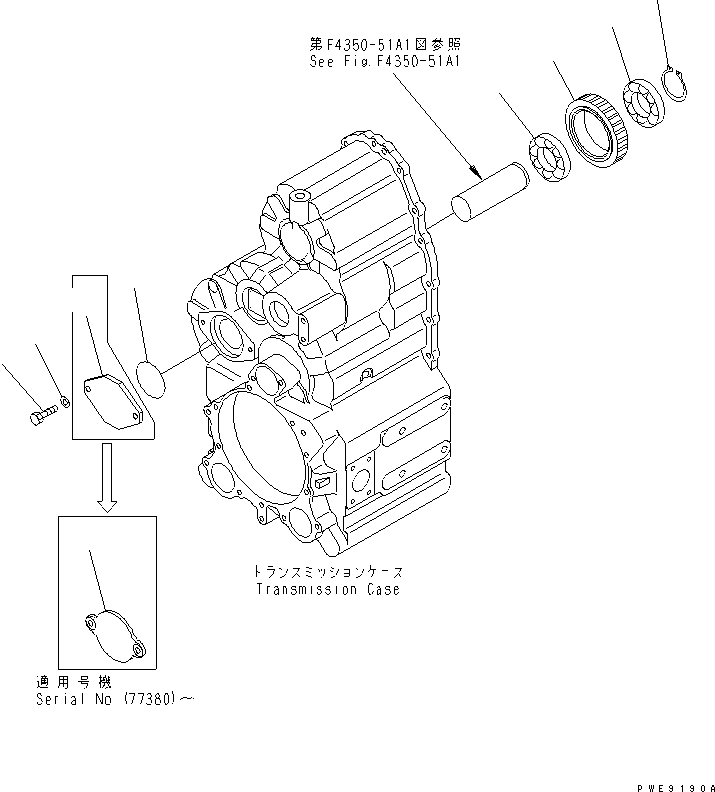

| ? | (714-13-10012) | TORQFLOW ASS'Y | 1 | SN: 63473- |
|||
| ? | (714-13-10011) | TORQFLOW ASS'Y | 1 | SN: 63001-63472 |
|||
| ? | (714-13-10210) | TORQFLOW ASS'Y,(TACHOGRAPH & KAISOU) | 1 | SN: 64001- |
|||
| ? | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-70A1. | ||||||
| ? | 714-13-16610 | • GEAR¤ 35 TEETH,IDLER | 1 | SN: 63001- |
|||
| ? | 06043-06212 | • BEARING,BALL | 2 | SN: 63001- |
|||
| ? | 04064-06020 | • RING,SNAP | 1 | SN: 63001- |
|||
| ? | 421-15-13170 | • COVER | 1 | SN: (77380)- |
|||
| ? | □417-15-14160 | • COVER | 1 | SN: 63001-(77379) |
|||
| ? | 07000-02105 | • O-RING (K1) | 1 | SN: 63001- |
|||
| ? | 01010-81230 | • BOLT | 2 | SN: (77380)- |
|||
| ? | 01010-81235 | • BOLT | 2 | SN: 63001-(77379) |
|||
| ? | 01643-31232 | • WASHER | 2 | SN: 63001- |
