| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||||
| ? | THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-70A1. | ||||||

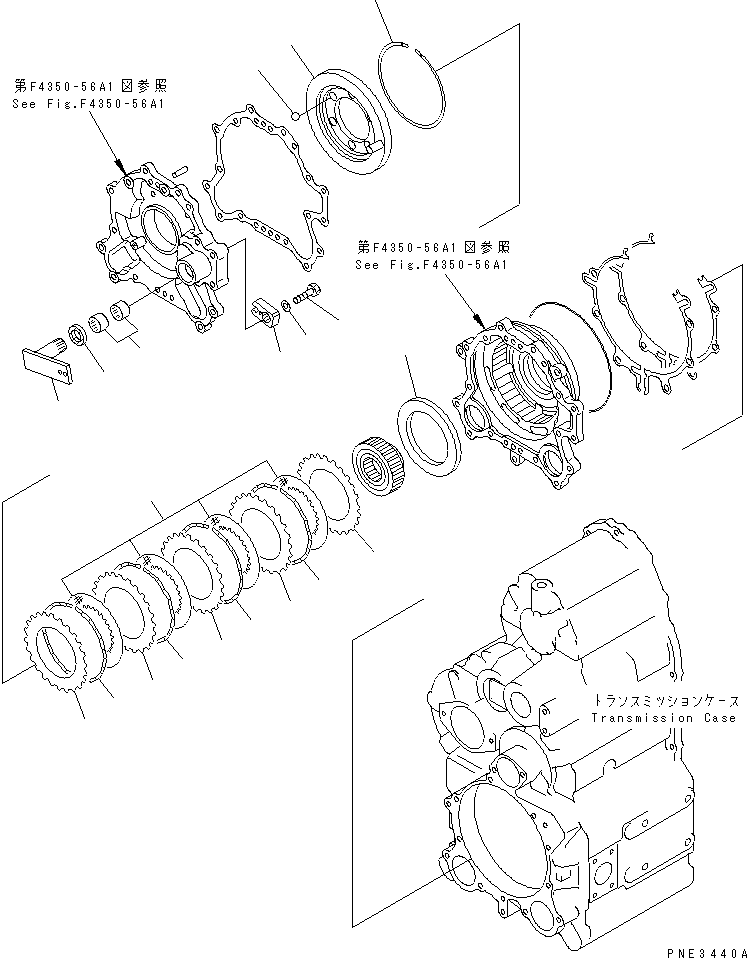

| ? | (714-13-10012) | TORQFLOW ASS'Y | 1 | SN: 63473- |
|||
| ? | (714-13-10011) | TORQFLOW ASS'Y | 1 | SN: 63001-63472 |
|||
| ? | (714-13-10210) | TORQFLOW ASS'Y | 1 | SN: 64001- |
|||
| ? | 714-13-18513 | • LEVER | 1 | SN: 63001- |
|||
| ? | 714-13-18651 | • LEVER | 1 | SN: 63001- |
|||
| ? | 01010-81016 | • BOLT | 1 | SN: 63001- |
|||
| ? | 417-43-16210 | • WASHER | 1 | SN: 63001- |
|||
| ? | 714-13-18521 | • PISTON,WITH PIN | 1 | SN: 63001- |
|||
| ? | 714-13-18331 | • • PISTON | 1 | SN: 63001- |
|||
| ? | 714-13-18661 | • • PIN | 1 | SN: 63001- |
|||
| ? | 714-07-12720 | • RING,SNAP | 1 | SN: 63001- |
|||
| ? | 714-07-12670 | • DISC | 4 | SN: 63001- |
|||
| ? | 714-07-12680 | • PLATE,SEPARATE | 5 | SN: 63001- |
|||
| ? | 714-13-18630 | • PLATE | 1 | SN: 63001- |
|||
| ? | 714-07-12691 | • SPRING,WAVE | 4 | SN: 64452- |
|||
| ? | 714-07-12690 | • SPRING,WAVE | 4 | SN: 63001-64451 |
|||
| ? | 06120-03020 | • BEARING,NEEDLE | 2 | SN: 63001- |
|||
| ? | 714-13-19810 | • SEAL,OIL (K1) | 1 | SN: 63001- |
|||
| ? | 714-11-18340 | • BALL | 8 | SN: 63001- |
