| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | (418-923-3001) | CAB ASS'Y | 1 | SN: 70001- |
|||

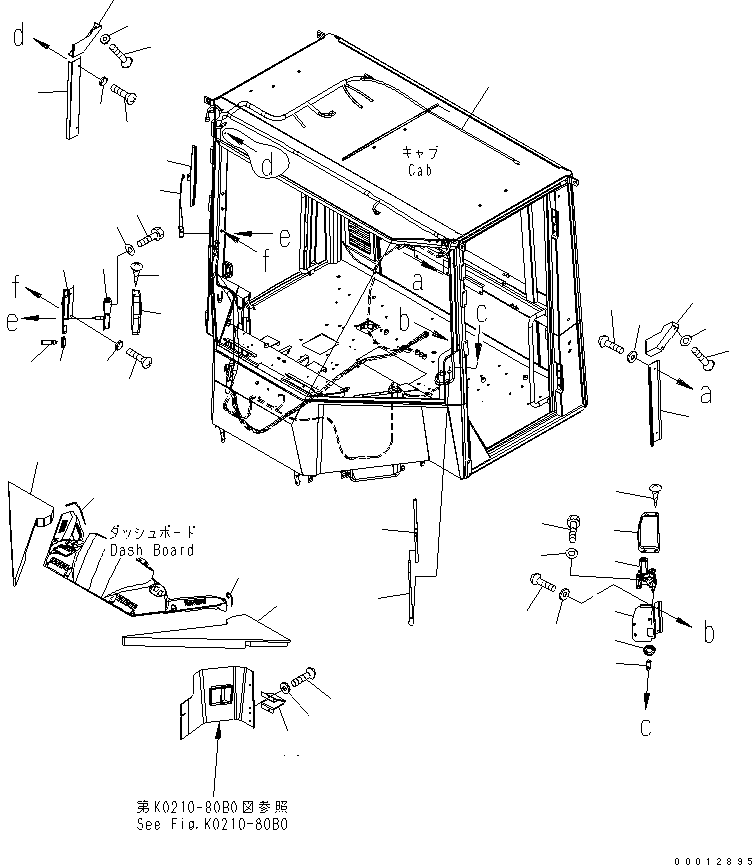

| ? | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-71B0 TO K0210-79B0. | ||||||
| ? | 42C-56-11380 | • WIPER MOTOR ASS'Y | 1 | SN: 70001- |
|||
| ? | 42C-56-11390 | • WIPER MOTOR ASS'Y | 1 | SN: 70001- |
|||
| ? | 20T-54-84840 | • ARM | 2 | SN: 70001- |
|||
| ? | 234-950-3490 | • BLADE | 2 | SN: 70001- |
|||
| ? | 418-923-3211 | • BRACKET | 1 | SN: 70001- |
|||
| ? | 418-923-3221 | • BRACKET | 1 | SN: 70001- |
|||
| ? | 01010-80620 | • BOLT | 6 | SN: 70001- |
|||
| ? | 01643-30623 | • WASHER | 6 | SN: 70001- |
|||
| ? | 01225-70612 | • SCREW | 4 | SN: 70001- |
|||
| ? | 418-926-3490 | • WASHER | 4 | SN: 70001- |
|||
| ? | 23A-952-1580 | • COVER | 1 | SN: 70001- |
|||
| ? | 23A-952-1590 | • COVER | 1 | SN: 70001- |
|||
| ? | 14X-911-1770 | • SCREW | 8 | SN: 70001- |
|||
| ? | 22T-55-11630 | • NOZZLE ASS'Y | 2 | SN: 70001- |
|||
| ? | 23B-951-6270 | • GROMMET | 2 | SN: 70001- |
|||
| ? | 418-923-3431 | • PLATE | 1 | SN: 70001- |
|||
| ? | 01225-70620 | • SCREW | 2 | SN: 70001- |
|||
| ? | 418-926-3490 | • WASHER | 2 | SN: 70001- |
|||
| ? | 417-923-3910 | • COVER | 1 | SN: 70001- |
|||
| ? | 417-923-3920 | • COVER | 1 | SN: 70001- |
|||
| ? | 01225-70612 | • SCREW | 4 | SN: 70001- |
|||
| ? | 418-926-3490 | • WASHER | 4 | SN: 70001- |
|||
| ? | 417-923-3810 | • COVER | 2 | SN: 70001- |
|||
| ? | 01225-70612 | • SCREW | 4 | SN: 70001- |
|||
| ? | 418-926-3490 | • WASHER | 4 | SN: 70001- |
|||
| ? | 417-923-3980 | • FINISHER | 2 | SN: 70001- |
|||
| ? | 418-923-3911 | • CUSHION | 1 | SN: 70001- |
|||
| ? | 418-923-3921 | • CUSHION | 1 | SN: 70001- |
|||
| ? | 418-923-3891 | • WIRING HARNESS | 1 | SN: 70001- |
