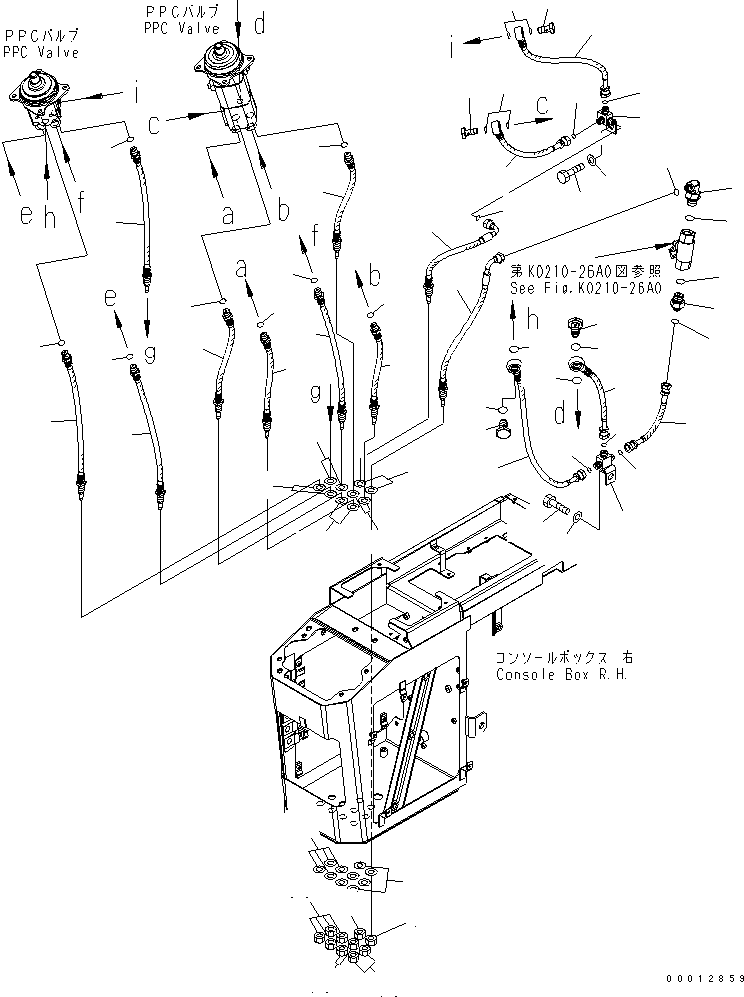

| Номер на схеме | Каталожный номер | Название | Количество | Детали | |||
|---|---|---|---|---|---|---|---|
| ? | 01583-11408 | NUT | 1 | SN: 70001- |
|||
| ? | 418-43-38221 | HOSE,RED | 1 | SN: 70001- |
|||
| ? | 11Y-62-12170 | ELBOW | 1 | SN: 70001- |
|||
| ? | 02896-11008 | O-RING | 1 | SN: 70001- |
|||
| ? | 07002-02034 | O-RING | 1 | SN: 70001- |
|||
| ? | 8255-62-4370 | UNION | 1 | SN: 70001- |
|||
| ? | 07002-02034 | O-RING | 1 | SN: 70001- |
|||
| ? | 02896-11008 | O-RING | 1 | SN: 70001- |
|||
| ? | 418-U77-3510 | HOSE,RED-BLUE | 1 | SN: 70001- |
|||
| ? | 418-U77-3520 | HOSE,RED-BLUE | 1 | SN: 70001- |
|||
| ? | 20Y-62-18910 | BOLT | 1 | SN: 70001- |
|||
| ? | 07000-02018 | O-RING | 2 | SN: 70001- |
|||
| ? | 07002-01423 | O-RING | 4 | SN: 70001- |
|||
| ? | 418-43-38242 | HOSE,RED | 1 | SN: 70001- |
|||
| ? | 01583-11408 | NUT | 4 | SN: 70001- |
|||
| ? | 418-43-38252 | HOSE,BLUE | 1 | SN: 70001- |
|||
| ? | 418-43-38262 | HOSE,YELLOW | 1 | SN: 70001- |
|||
| ? | 418-43-38272 | HOSE,ORANGE | 1 | SN: 70001- |
|||
| ? | 20Y-62-18890 | BOLT | 1 | SN: 70001- |
|||
| ? | 07000-02018 | O-RING | 2 | SN: 70001- |
|||
| ? | 418-U77-3540 | HOSE,BLUE-BLACK | 1 | SN: 70001- |
|||
| ? | 418-U77-3550 | HOSE,BLUE-BLACK | 1 | SN: 70001- |
|||
| ? | 01583-11408 | NUT | 1 | SN: 70001- |
|||
| ? | 01643-31445 | WASHER | 12 | SN: 70001- |
|||
| ? | 20Y-62-18910 | BOLT | 1 | SN: 70001- |
|||
| ? | 07000-02018 | O-RING | 2 | SN: 70001- |
|||
| ? | 418-S35-3130 | HOSE | 1 | SN: 70001- |
|||
| ? | 20Y-62-18890 | BOLT | 1 | SN: 70001- |
|||
| ? | 07000-02015 | O-RING | 2 | SN: 70001- |
|||
| ? | 418-S35-3180 | HOSE | 1 | SN: 70001- |
|||
| ? | 418-S35-3140 | HOSE | 1 | SN: 70001- |
|||
| ? | 418-S35-3150 | HOSE | 1 | SN: 70001- |
|||
| ? | 418-S35-3160 | HOSE | 1 | SN: 70001- |
|||
| ? | 418-S35-3170 | HOSE | 1 | SN: 70001- |
|||
| ? | 07002-01423 | O-RING | 4 | SN: 70001- |
|||
| ? | 01583-11408 | NUT | 4 | SN: 70001- |
|||
| ? | 01643-31445 | WASHER | 8 | SN: 70001- |
|||
| ? | 418-U77-3670 | BLOCK | 1 | SN: 70001- |
|||
| ? | 02896-11008 | O-RING | 3 | SN: 70001- |
|||
| ? | 01010-81220 | BOLT | 1 | SN: 70001- |
|||
| ? | 01643-31232 | WASHER | 1 | SN: 70001- |
|||
| ? | 418-U77-3590 | TEE | 1 | SN: 70001- |
|||
| ? | 02896-11008 | O-RING | 3 | SN: 70001- |
|||
| ? | 01010-81220 | BOLT | 1 | SN: 70001- |
|||
| ? | 01643-31232 | WASHER | 1 | SN: 70001- |
